Stormwater & Greywater Pump Station Package

SKU: PMS7V
Regular price $2,499.00
Unit price
per
Same Day Dispatch

Free Express Shipping Australia-Wide

30-Day Returns

Don't like it? Send it back. Our Return Policy

(0 in cart)
100% Secure payments
Apple Pay
Google Pay
PayPal
Zip
Klarna
Visa
Mastercard
Shop Pay
Ask a Question About This Product

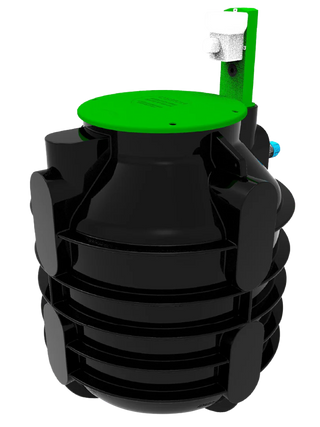

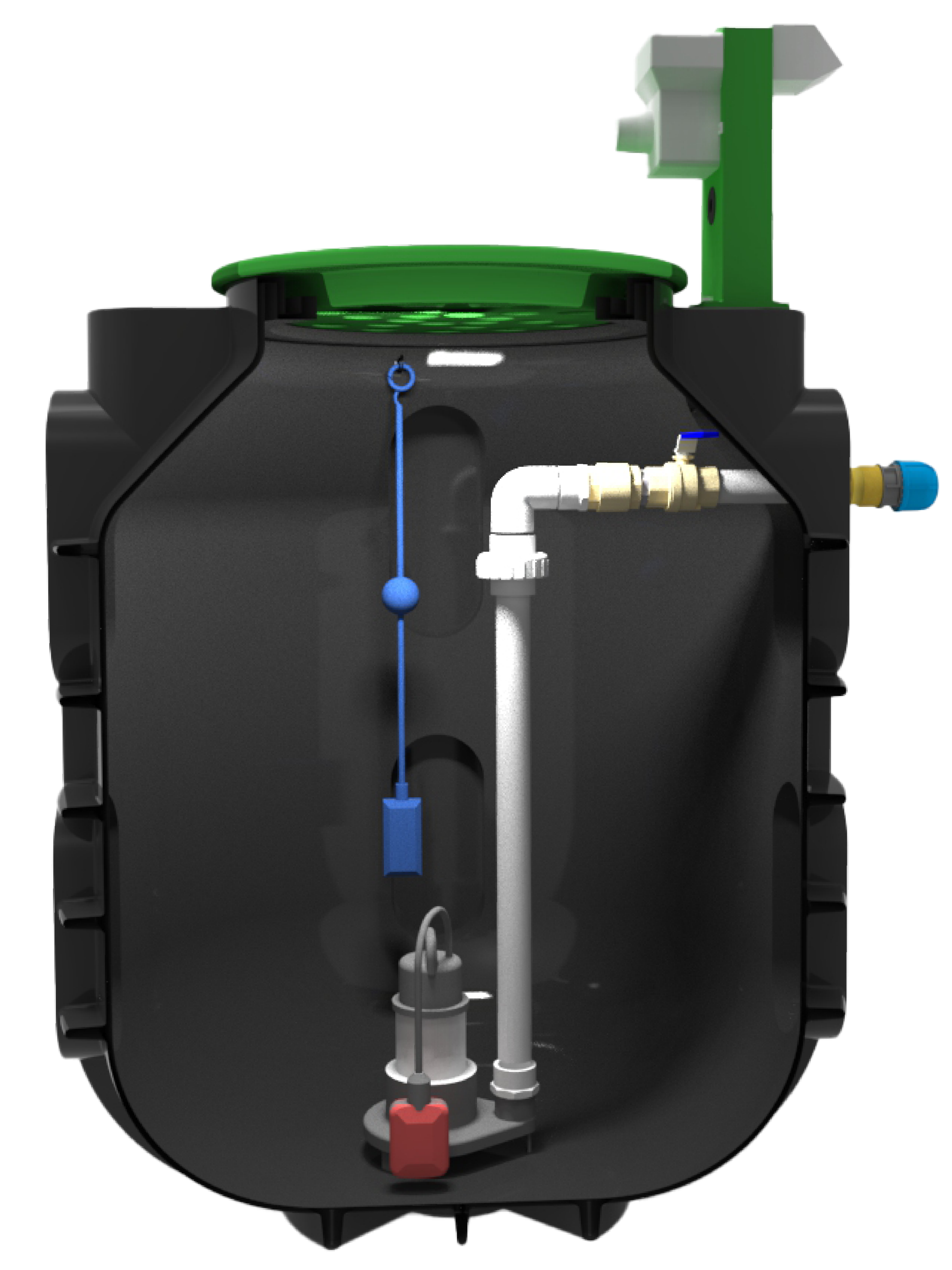

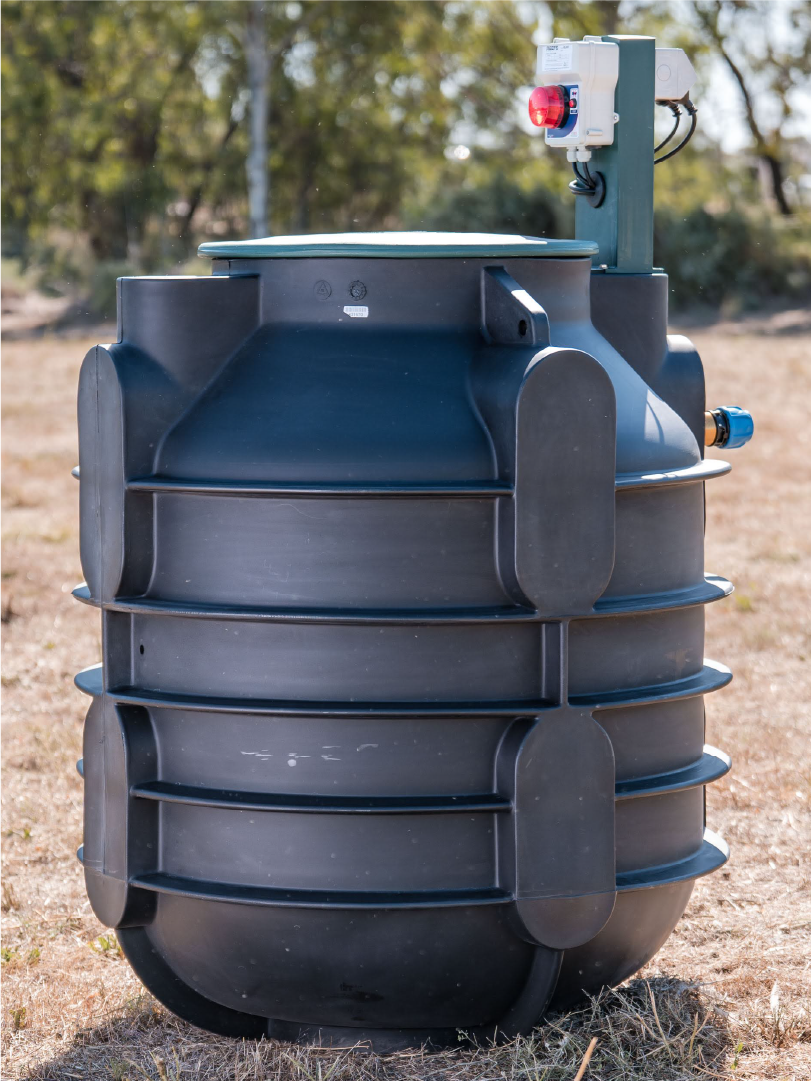

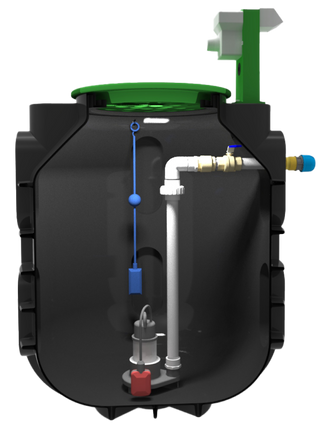

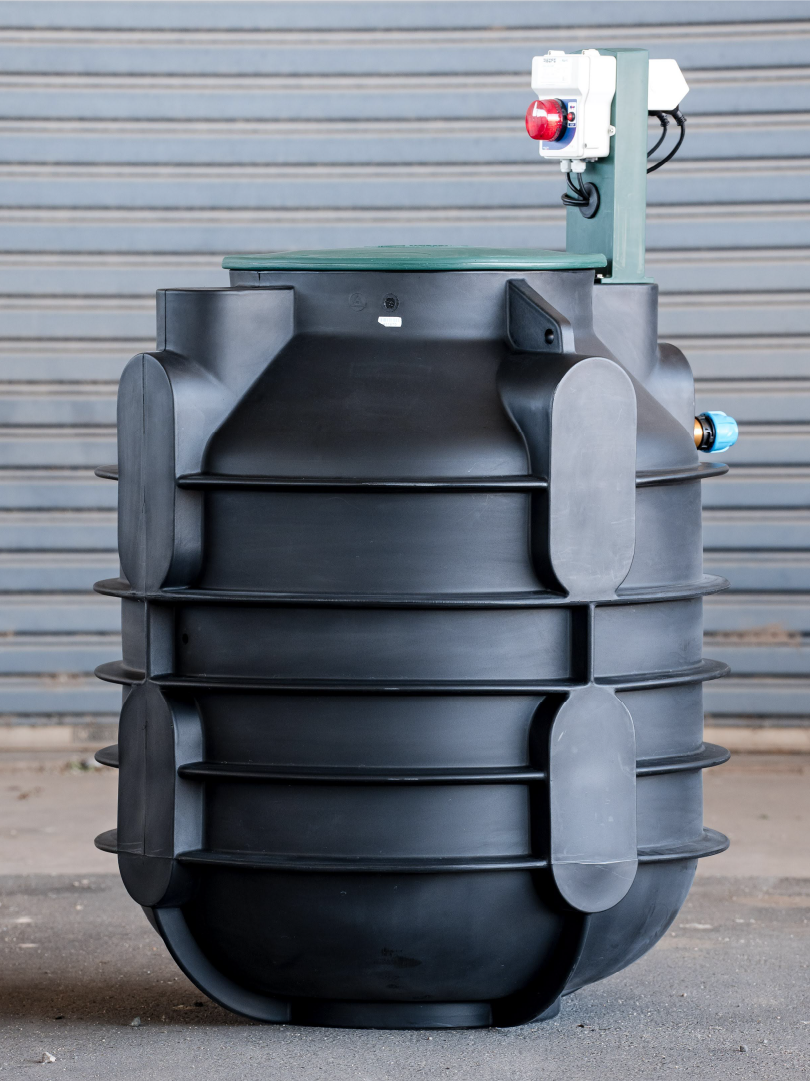

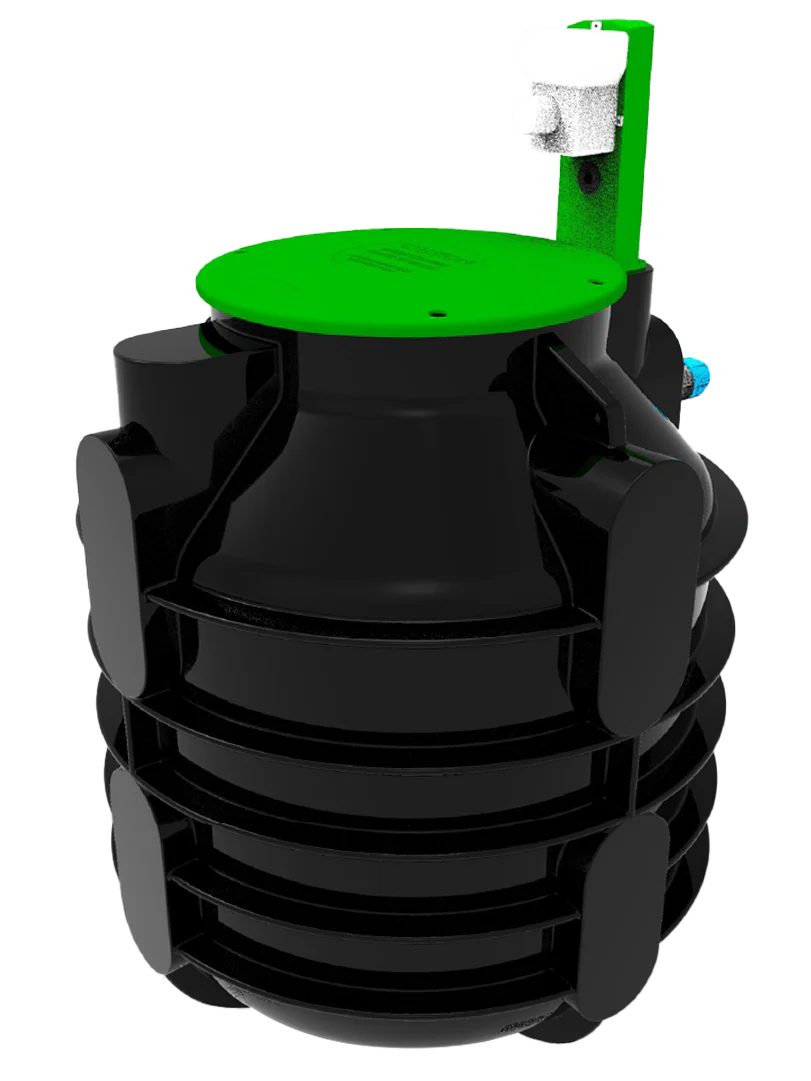

Australian Made Pump Station – Stormwater / Grey Water with RVS200 Pump
Looking for a reliable, easy-to-install solution for managing stormwater or greywater? This Pump Station, paired with the RVS200 pump, is a Australian-made system designed with plumbers in mind. Available in 700L, 1000L, and 1300L sizes, this pre-assembled unit is built to save you time and effort while ensuring reliable performance. Whether it's for residential, commercial, or industrial use, this pump station delivers the reliability and durability you need.

Our knowledgeable team is on hand to help you select the ideal setup, whether you need a larger pit or a different type of system. Don't let water damage disrupt your home.

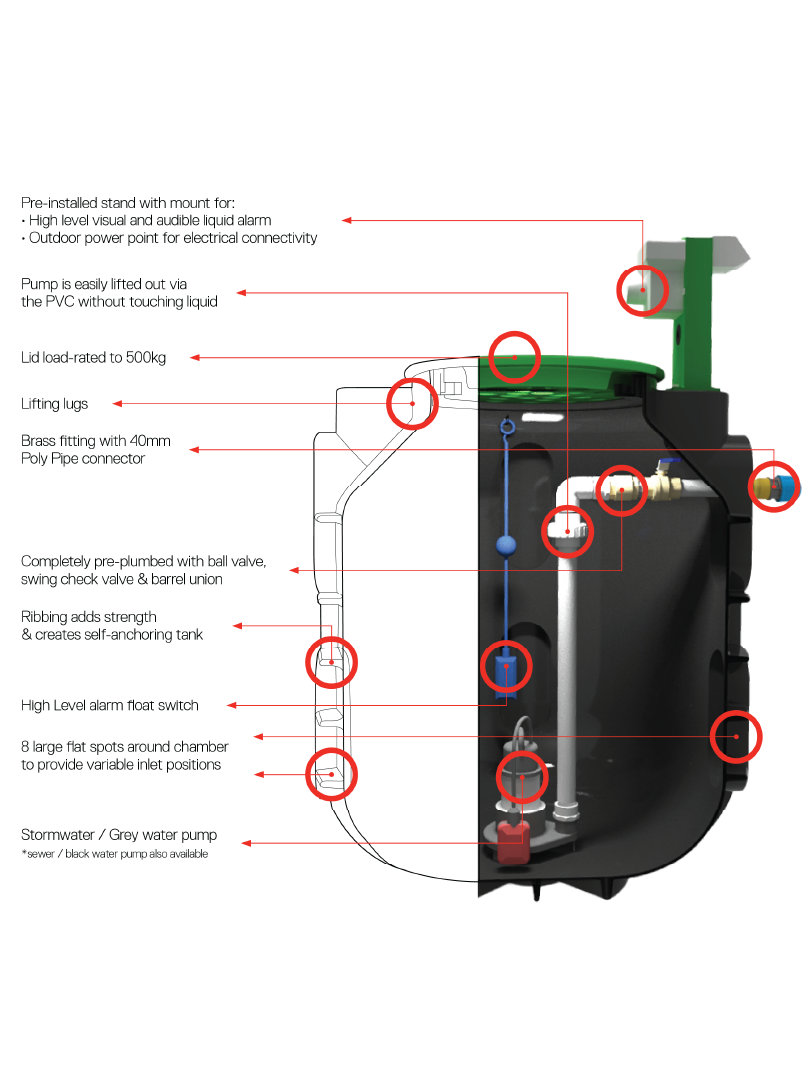

Highlights:

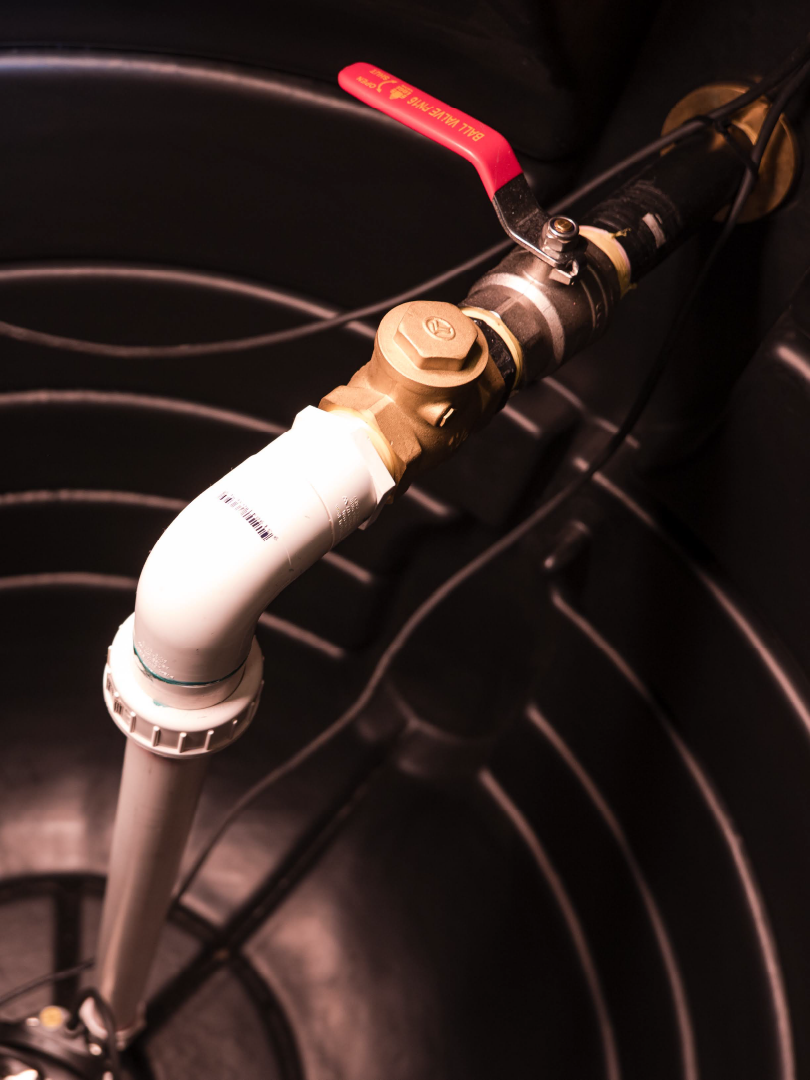

  • Ready to go: Fully pre-assembled with all the necessary components, including a brass ball valve, swing check valve, and PVC barrel union.
  • Built to last: The tough, rotationally moulded polyethylene vessel is certified to AS/NZS1546.1 standards, ensuring it can handle the demands of any job.
  • Multiple size options: Choose the size that best fits your project—700L, 1000L, or 1300L—offering flexibility with inlet heights.

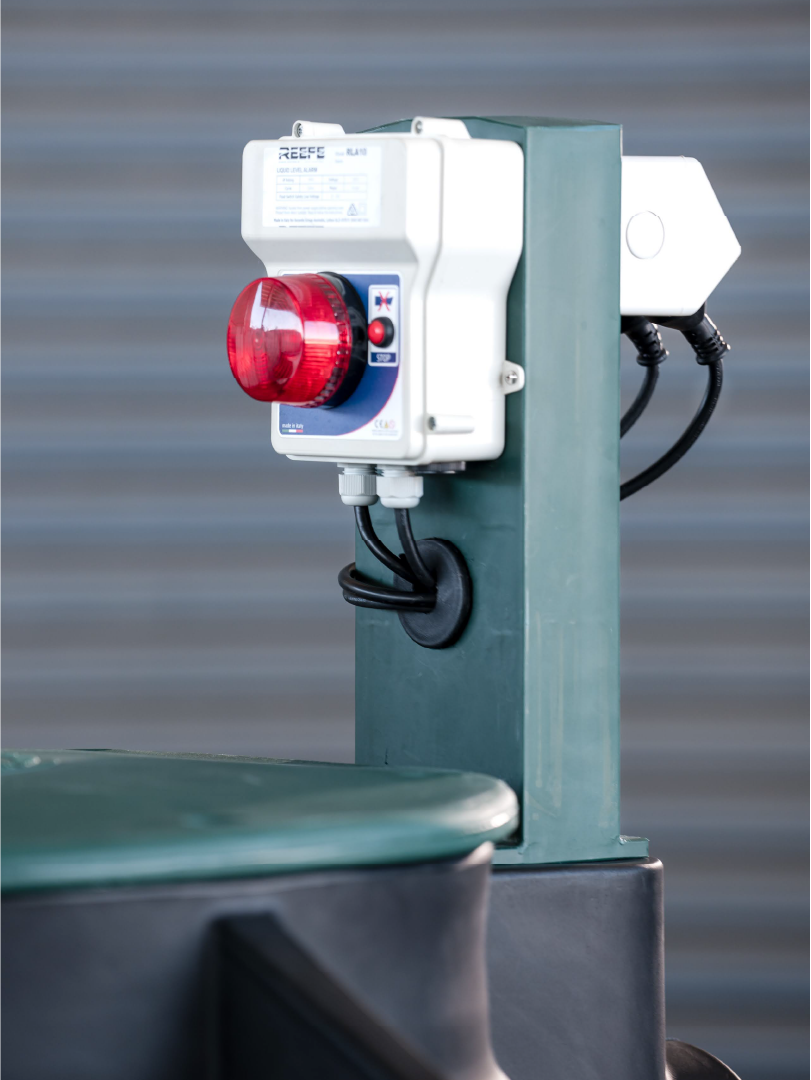

  • Alarm system included: Comes with a visual and audible high-level alarm to keep you informed when maintenance is needed.
  • Quick maintenance: Easy pump removal via the PVC barrel union means less downtime when servicing is required.
  • Heavy-duty lid: The lid is rated to support up to 500kg, making it suitable for high-traffic areas.
  • Easy to install: Lightweight design with lifting lugs and pre-plumbed fittings makes installation a breeze.

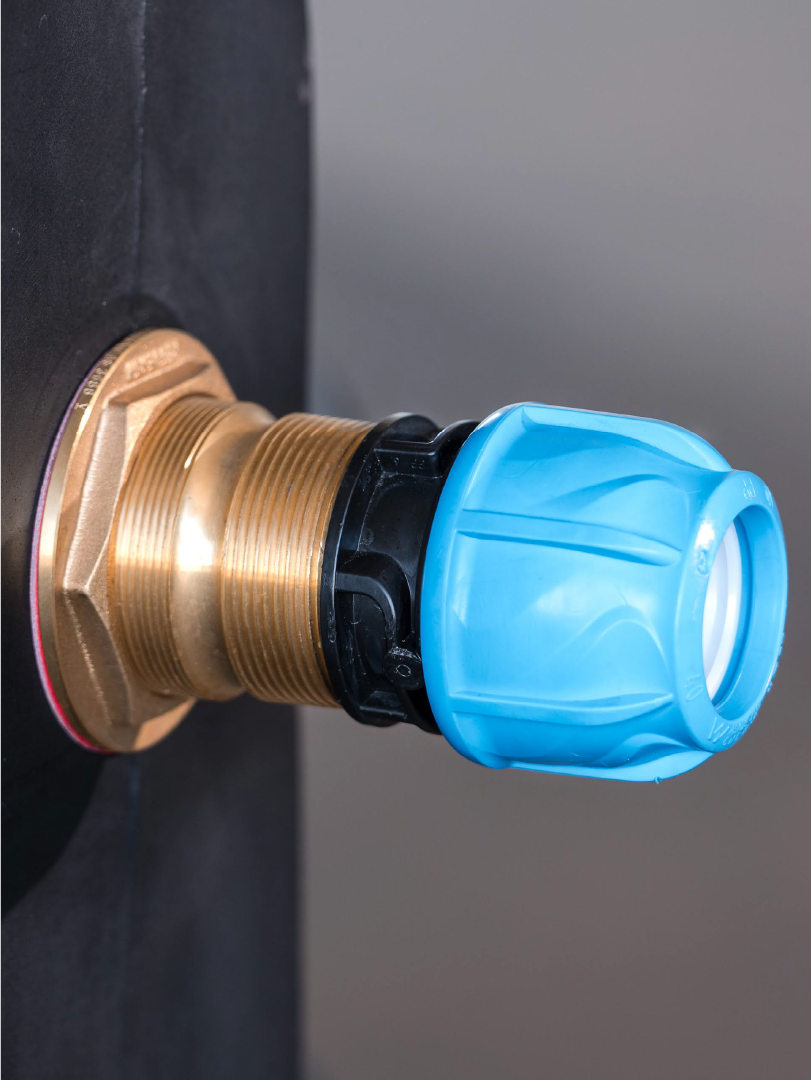

  • Hassle-free connections: Fitted with a 40mm brass discharge outlet and Poly Pipe connector, simplifying your connection process.

Specifications:

  • Capacity: Available in 700L, 1000L, or 1300L
  • Material: Rotationally moulded polyethylene
  • Dimensions (700L model):
    • Length: 1090 cm
    • Width: 1090 cm
    • Height: 1650 cm
    • Weight: 65 kg
  • Lid load rating: 500 kg
  • Pre-assembled components: Includes brass ball valve, swing check valve, and PVC barrel union
  • Discharge outlet: 40mm brass outlet with Poly Pipe connector

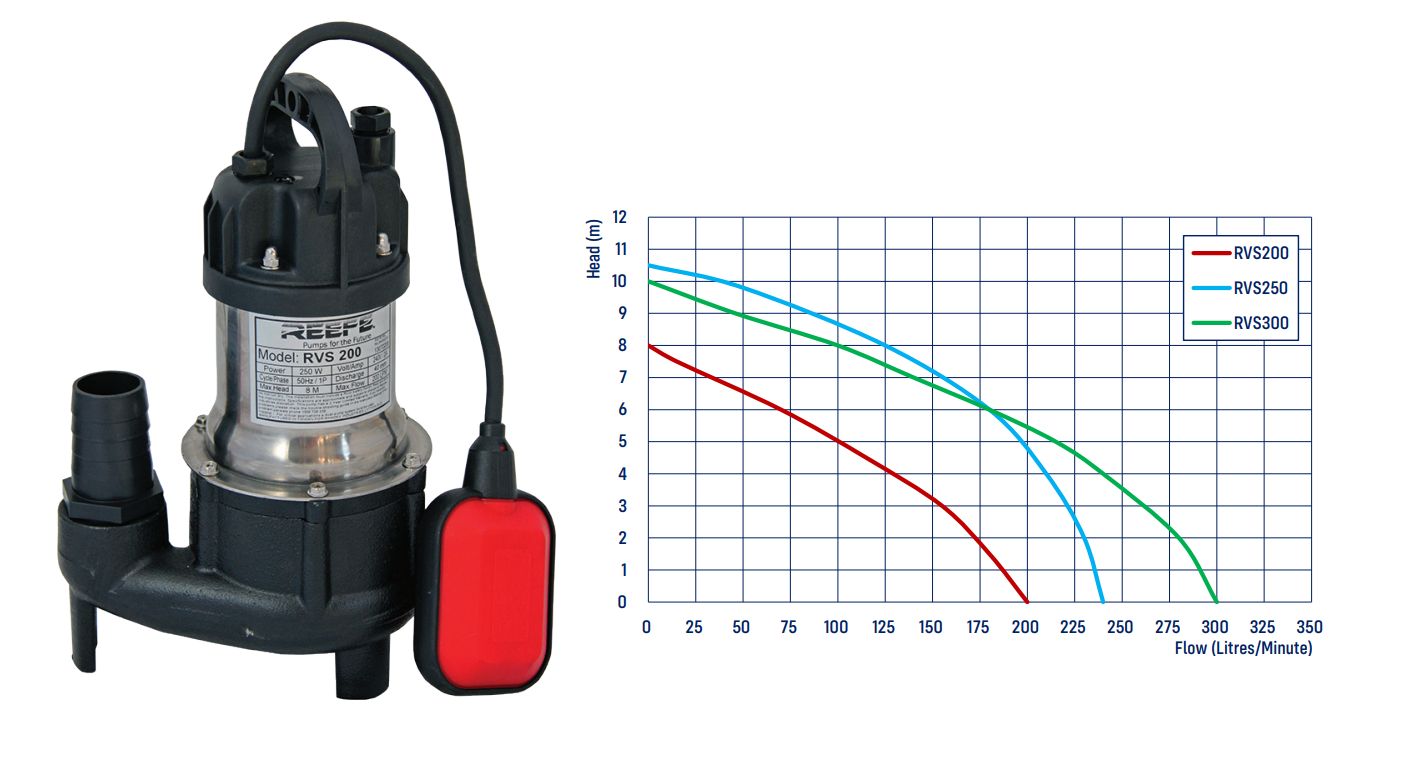

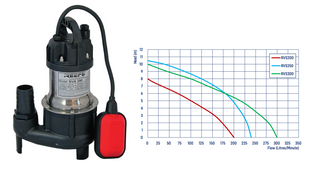

RVS200 Pump Specs:

  • Model: RVS200
  • Operation: Automatic
  • Power: 240V
  • Rated amps (P1): 2.0 A
  • Max power output (P2): 0.25 kW
  • Max flow: 200 L/min, maximum head 8m
  • Soft solids handling: 25mm
  • Cable length: 10 meters
  • Outlet size: 40mm (1 1/2")
  • Pump dimensions: 200 x 130 x 315 mm
  • Weight: 9 kg

Ideal Uses:

  • Stormwater management: Effectively manages stormwater runoff, making it a great choice for homes, businesses, and industrial sites.
  • Greywater systems: Perfect for greywater recycling projects that prioritize water conservation and sustainability.

What’s in the Box:

  • 1 x Rotationally moulded polyethylene vessel (700L, 1000L, or 1300L)
  • 1 x RVS200 auto pump (pre-installed)
  • 1 x Brass ball valve (pre-installed)
  • 1 x Swing check valve (pre-installed)
  • 1 x PVC barrel union for easy pump removal (pre-installed)
  • 1 x Visual and audible alarm system (pre-installed)
  • 1 x Heavy-duty lid rated for 500 kg (pre-installed)
  • 1 x 40mm brass discharge outlet with Poly Pipe connector (pre-installed)

Please note: inlet pipe will need to be plumbed in

Waternex is not liable for installation errors or damage from improper use. Professional installation is recommended.

Downloads

Pump station Brochure

REEFE Premium Vortex Pump Brochure

Drawings (700L)

Drawings (1000L)

Drawings (1300L)

For further information, contact WaterNex at 1300 930 847 or email sales@waternex.com.au

Please note: Waternex is not responsible for incorrect pump or pump station sizing without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense
