Tuhorse 3" 210W Solar Bore Pump Kit with Solar Panel Included
- Unit price
- / per
Free Express Shipping Australia-Wide
Don't like it? Send it back. Our Return Policy
This proven performer is designed to meet your water pumping needs, offering reliability and efficiency right out of the box. Whether you're working in remote locations, managing agricultural demands, or need a dependable solution for water transfer, this package delivers exceptional results. With free delivery and everything you need included, this system is ready to go to work for you.
Highlights
- Solar Powered: Powered by a 200W mono crystalline A-grade solar panel, this pump operates entirely on solar energy.
- Versatile Application: Suitable for boreholes between 10m-35m deep, and capable of drawing water from rivers, dams, creeks, and springs.
- Ease of Use: Designed for plug-and-play installation, meaning you can get your system up and running quickly with minimal hassle.
- Robust Construction: Made from durable stainless steel, ensuring long-term reliability and resistance to corrosion.
Features
- Helical Screw Rotor: This pump uses a helical screw rotor, known for its efficiency in moving water even from deeper sources. It’s robust and designed to handle varying water conditions.
- Auto Control Box: Equipped with an auto control box that features motor speed adjustment, water level control for both tank and bore, low power protection, and the ability to use solar power, batteries, or an optional generator.
- Flexible Power Options: While the pump runs primarily on solar power, it can also be connected to batteries or an AC-to-DC converter for backup power.
- MPPT Technology: The Maximum Power Point Tracking (MPPT) system optimizes the energy usage from your solar panels, ensuring maximum efficiency.
Applications
- Water Supply: Ideal for providing water to remote locations, livestock, irrigation systems, or domestic use where grid power is not an option.
- Water Transfer: Efficiently moves water from one site to another, whether it’s for agricultural, residential, or commercial use.
- Versatile Source Compatibility: Can draw water from boreholes, rivers, dams, creeks, and springs, making it highly versatile.
Pump Specifications
- Pump Power: 210W / 36V-DC
- Pump Type: Helical screw rotor
-
Max Flow Rates:
- 30m head: 8L/min (106 Gallons/h)
- 20m head: 10L/min (133 Gallons/h)
- 10m head: 12L/min (160 Gallons/h)
- Outlet Size: 3/4"
- Weight: 10kg
- Dimensions: 76mm x 400mm
- Maximum Submersion Depth: <30m
Auto Control Box Specifications
- Water Level Control: Monitors tank and bore water levels via sensors.
- Motor Speed Adjustment: Allows for precise control over pump performance.
- Low Power Protection: Safeguards the pump against power fluctuations.
- Power Input Options: Compatible with solar panels, batteries, or an optional 240V/AC to 48V/DC converter.
- MPPT System: Ensures maximum energy efficiency from solar input.
Solar Panel Specifications
- Power Output: 200W
- Dimensions: 1580mm x 808mm x 35mm
- Weight: 16kg

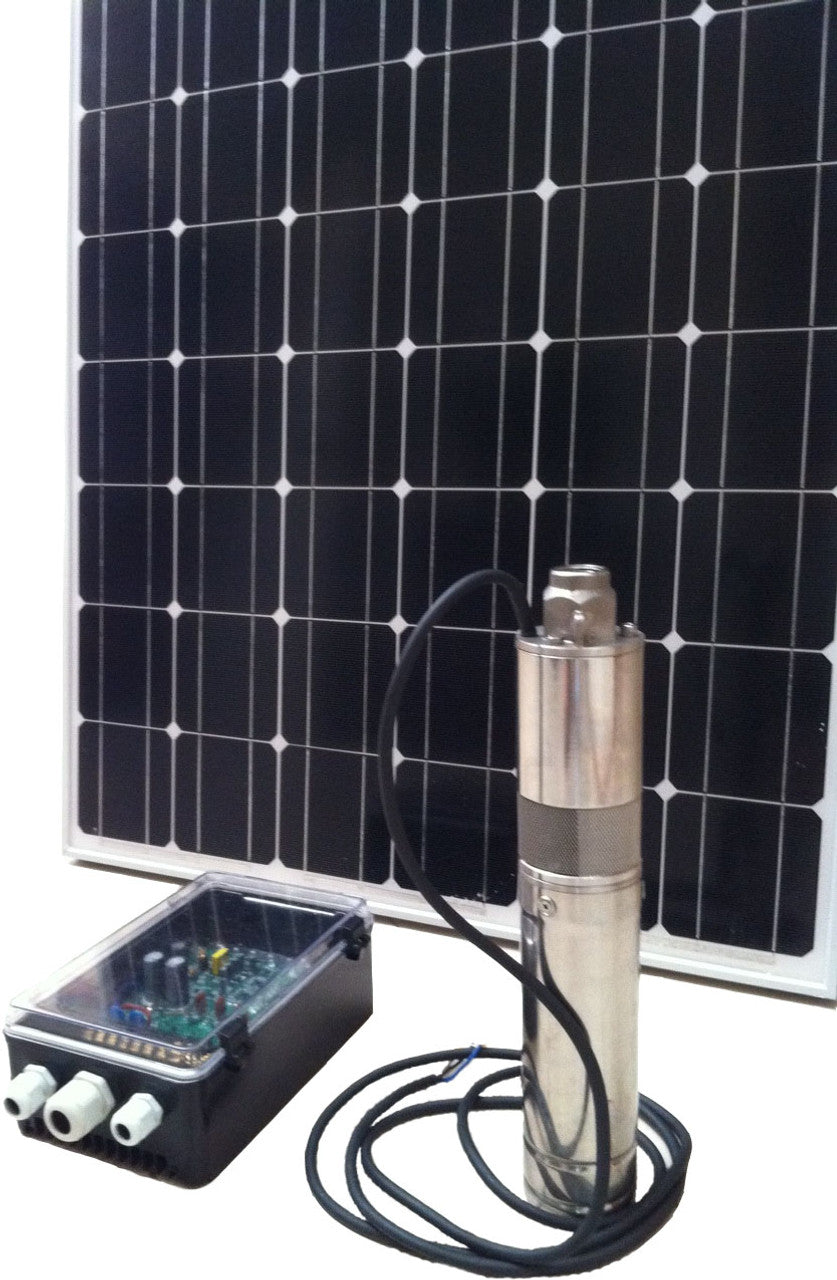

What’s in the Box?
- 1 x 200W Mono Crystalline A Grade Solar Panel
- 1 x 3" 210W/36V Stainless Steel Solar Pump with 20M Fitted Power Cable
- 1 x Auto Control Box
- 1 x Spare Helical Screw Rotor
- 2 x MC4 Extension Cable for Solar Panel Connection
- 1 x 40M & 1 x 10M Combined Water Sensor (one for bore, one for tank)
- 1 x User Manual
- 24-Month Back-to-Base (Sydney) Warranty for Pump & Control Box
- Free Delivery Across Australia
Additional Requirements (Not Included)
To complete your setup, you will need:
- Stainless Steel Wire (Safety Cable): For holding the pump in the bore. If drawing water from a dam or river, a float setup is required.
- Solar Panel Frames: To securely mount your solar panels.
- Poly Pipe: For connecting the pump to your water tank.
Optional Accessories
- 240V/AC to 48V/DC Converter: Allows the solar pump to run with a generator (available in the accessories category).
