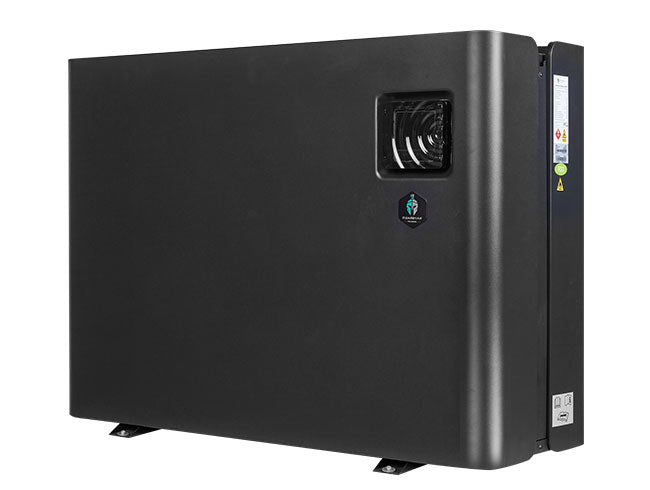

Guardian Platinum 9kW Inverter Pool Heat Pump High COP 16
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
Guardian – Leading the Way in Australian Pool Heating
The premium choice for year-round swimming at the lowest running costs. The Guardian Platinum 9kW is part of the high-performance Platinum Series, engineered with full DC inverter technology and a unique vertical dual-discharge design that pushes air from both the top and bottom for better airflow, higher efficiency, and flexible installation.
With a sleek, matte-finished metal cabinet, whisper-quiet operation, and advanced smart controls, the Platinum 9kW is the ultimate heating solution for small pools and spas. Backed by an industry-leading warranty and full Australian service support, it offers unmatched value in performance and reliability.
Why Choose the Platinum Series?
-
C.O.P. up to 16.1 — industry-leading efficiency, lower operating costs
-
Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service
-
High Performance Series — advanced inverter system with dual vertical air discharge for greater airflow and installation options
-
Cold Climate Ready — reliable heating down to –15 °C with automatic defrost
-
Heating & Cooling Function — versatile all-season pool comfort
-
Smart Controls — Wi-Fi connectivity, 4 smart modes, and LCD touchscreen with 0.1 °C precision
-
Modern, Durable Design — matte-finished metal cabinet built for Australian conditions
-
Quiet Operation — low noise levels despite strong performance
-
Eco-Friendly R32 Refrigerant — efficient and environmentally conscious
Smart Wi-Fi Control – Heat Your Pool From Anywhere
Get a FREE Custom Pool Heating Quote in Minutes!
Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.
Get Your FREE Custom Quote Now!
Enjoy a warm, inviting pool without any hassle or cost to get started!
Technical Specifications — Platinum 9kW (GP-9)
Performance (Air 27 °C / Water 26 °C / Humidity 80%)
-
Heating Capacity: 2.7–9.5 kW
-
C.O.P.: 16.1–7.1
Performance (Air 15 °C / Water 26 °C / Humidity 70%)
-
Heating Capacity: 1.8–7.5 kW
-
C.O.P.: 7.6–5.1
Construction & Components
-
Operating Air Temperature: –15 °C to 43 °C
-
Compressor: Mitsubishi Rotary/Inverter
-
Heat Exchanger: Titanium
-
Casing: Matte-finished metal cabinet
-
Power Supply: 220–240 V~/1Ph/50Hz
-
Electrical Connection: 10A plug
-
Rated Input Power: 0.17–1.34 kW
-
Max Rated Input Power: 1.94 kW
-
Running Current at 100 %: 6.48 A
-
Sound Pressure (1 m): 42–47.5 dB(A)
-
Sound Pressure (10 m): 14–19.5 dB(A)
-
Water Connection: 40 mm
-
Net Weight: 82 kg
-
Unit Size: 1074 × 436 × 804 mm
What’s Included
-
1 × Guardian Platinum 9kW Heat Pump (GP-9)
-
1 × Intelligent LCD Touch Controller
-
1 × User Manual & Quick-Start Guide
-
1 × Warranty Information Pack
Applications
-
Small residential pools
-
Spas and plunge pools
-
Year-round pool heating and cooling, with high efficiency and reliable cold-climate operation
Downloads
Have Questions?
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
Do you offer trade pricing or project quantities?
We do. Trade accounts receive standing discount and priority dispatch. For developments and multi-unit sites we quote the whole schedule and stage deliveries to match your program. Apply for trade pricing or call 1300 930 847.
