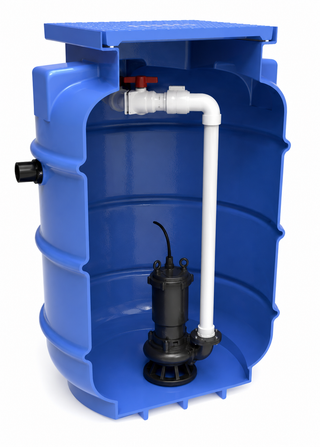

The Kwikflo KPPS1200 1200L Stormwater Pump Station is a pre-assembled, freestanding poly pump station supplied with an Aline Sabre AL1500-1A 1.5kW 240V automatic drainage pump and a gastight 600mm x 600mm poly lid. It is the stormwater and drainage counterpart to our sewer KPPS1200 package, fitted with a drainage pump in place of a cutter pump. Built for basement pump-away, residential and light commercial installations where wastewater has to be lifted from below the mains line, it arrives with the internal valves and pipework already fitted.
Highlights
- Pre-assembled 1200L polyethylene pump station, ready to install
- Aline Sabre AL1500-1A 1.5kW 240V automatic drainage pump included
- Gastight poly lid, 600mm x 600mm, included
- Ball valve, non-return valve, barrel unions and PVC pipework pre-fitted
- 1600mm deep with a 1075mm outer diameter
- Freestanding design, no mounting kit or base required
- Handles stormwater, raw sewage, tradewaste and effluent
- Pump passes suspended solids up to 20mm
- 500 LPM maximum flow through a 50mm (2") discharge
- Maximum head 17m
- Pump submersible to 5m with a 10m cable
- Range of lid and riser options including Class B and Class D covers
The Stormwater Version of the KPPS1200
The KPPS1200 tank is the same unit used in our sewer pump station package. What changes is the pump inside it.
The sewer package carries an ALC750 high head cutter pump, built to shred solids in raw sewage. This stormwater package carries the AL1500-1A drainage pump, an open multi-vane vortex design suited to greywater, stormwater and basement drainage where cutting is not required. If the duty is sewage with solids, the cutter version is the correct choice.
Pre-Assembled to Cut Site Time

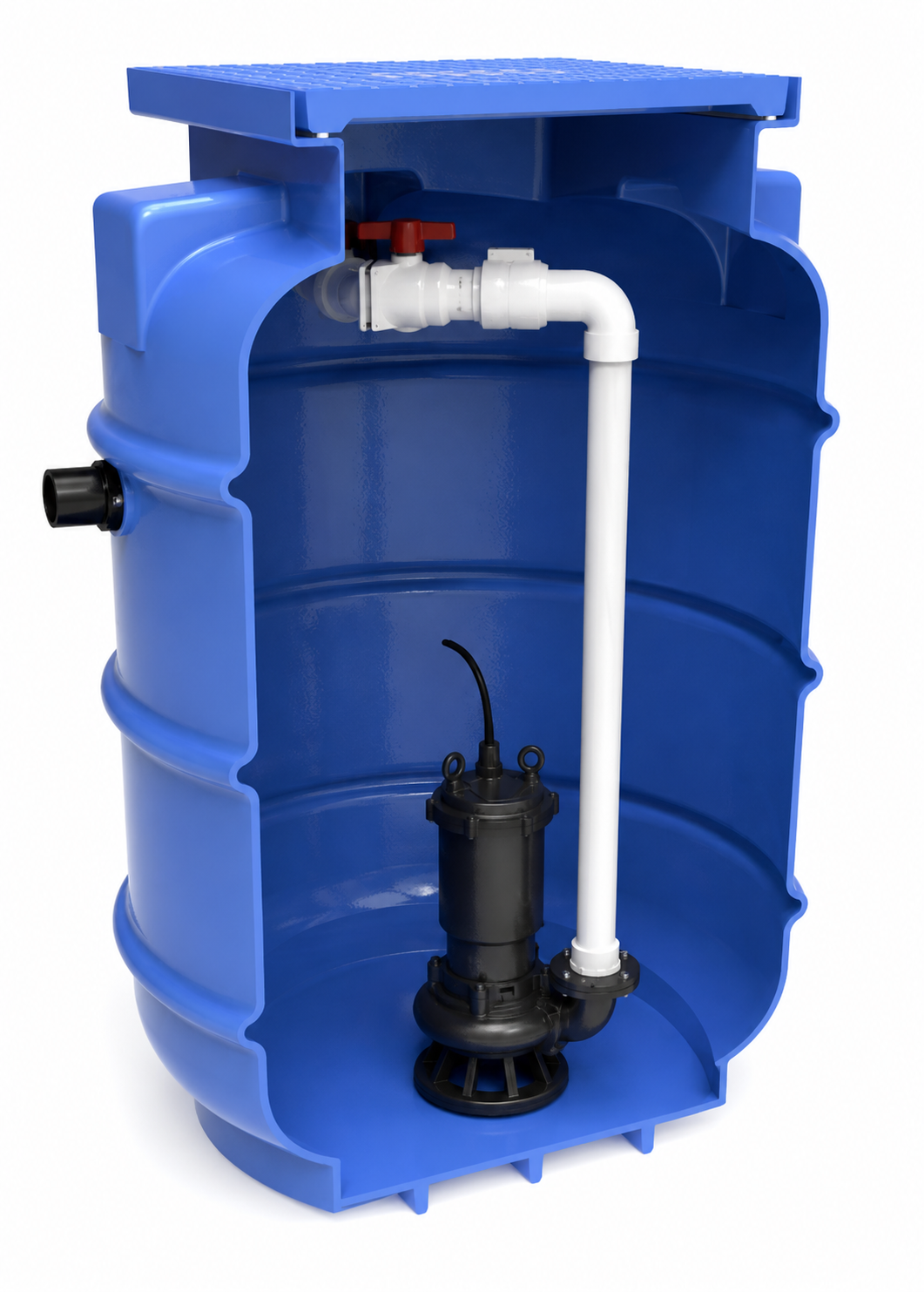

The internal components are fitted before the station leaves the factory: ball valve, non-return valve, barrel unions and the PVC interconnecting pipework.
The inlet pipe penetration is not pre-drilled and is to be installed by the plumber to suit the incoming invert level on site. A BSP outlet is moulded into the tank.
The pump is boxed separately for transit and is easily mounted on site.
Tank Dimensions and Access

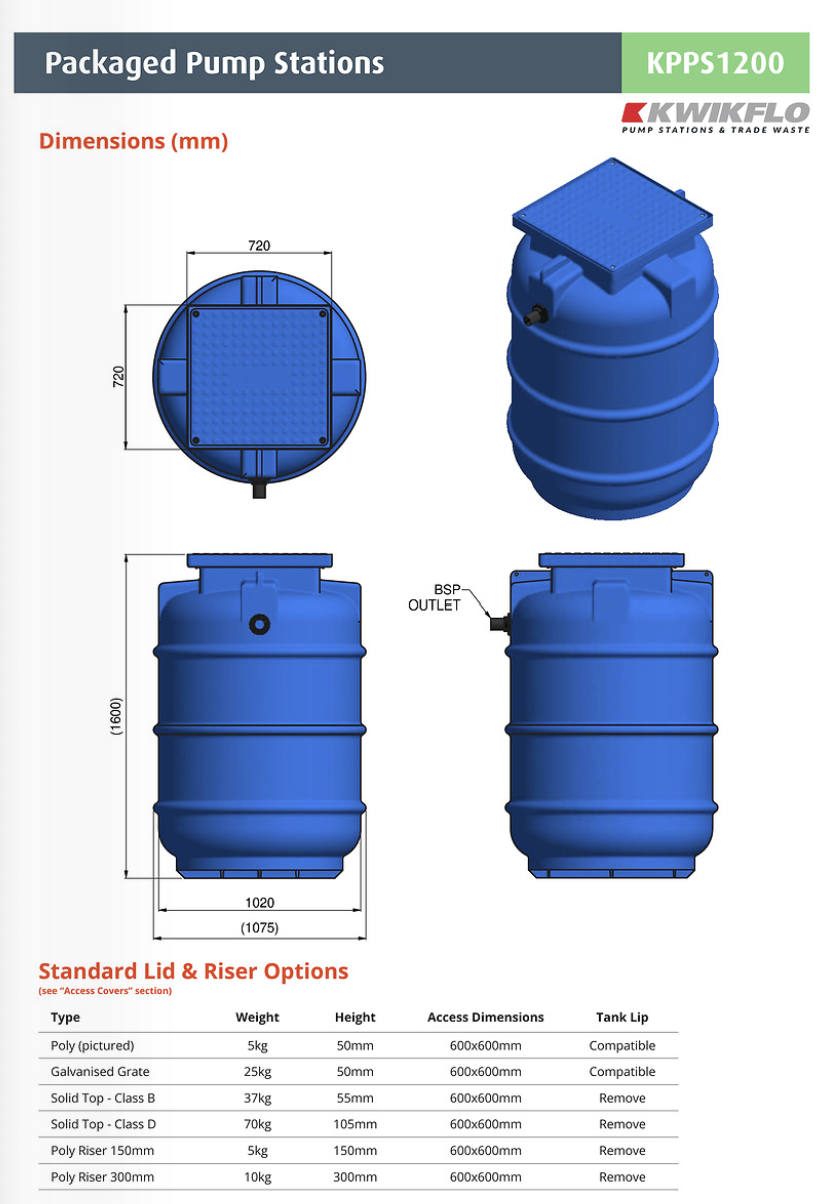

The tank stands 1600mm tall with a 1075mm outer diameter across the ribs and a 1020mm body diameter. The moulded top plate is 720mm x 720mm and the access opening is 600mm x 600mm.
The standard poly lid suits non-trafficable and above-ground positions. Where the station sits under a trafficable area, galvanised grate, Class B and Class D solid top covers are available, along with 150mm and 300mm poly risers for deeper installations.
The AL1500-1A Drainage Pump

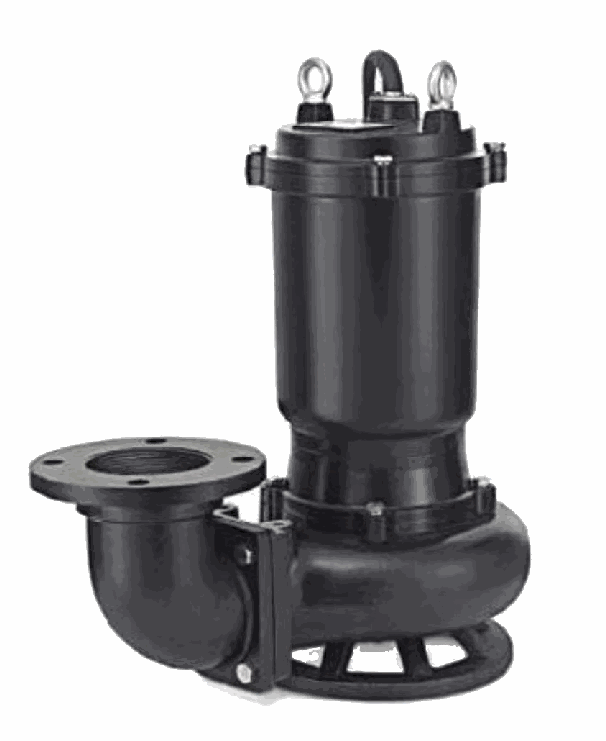

The pump is a 1.5kW (2.0 HP) single phase submersible drainage pump with a cast iron body and cast iron impeller, running a ceramic-graphite and silicon carbide alloy mechanical seal.
The open multi-vane vortex impeller keeps a clear path through the pump, so soft solids up to 20mm pass rather than wrap and clog. It is rated to 5m submersible depth, liquid temperatures up to 40°C, and a maximum of 20 starts per hour. It can be installed free standing or mounted on optional guide rails.

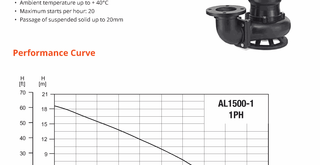

Maximum flow is 500 LPM. The pump delivers 680 LPM at 5m, 570 LPM at 8m, 410 LPM at 11m, 250 LPM at 14m, 100 LPM at 17m.
Features
- Pre-assembled packaged pump station
- 1200L polyethylene holding tank
- Freestanding configuration
- Single Pump configuration available
- Gastight poly lid 600mm x 600mm
- Pre-installed ball valve
- Pre-installed non-return valve
- Pre-installed barrel unions
- Pre-installed PVC interconnecting pipework
- Moulded BSP outlet
- AL1500-1A automatic submersible drainage pump
- 1.5kW / 2.0 HP single phase 240V pump
- Cast iron pump body and impeller
- Ceramic-graphite and silicon carbide alloy mechanical seal
- Open multi-vane vortex centrifugal impeller
- Passage of suspended solids up to 20mm
- Pump submersible depth to 5m
- 10m pump cable
- Maximum 20 pump starts per hour
- Lid and riser options to suit trafficable installations
Construction
- Polyethylene holding tank
- 1200L nominal volume
- 1600mm depth
- 1075mm outer diameter
- 1020mm body diameter
- 720mm x 720mm moulded top plate
- 600mm x 600mm access opening
- Gastight poly lid
- Moulded BSP outlet
- Inlet pipe penetration to be installed by plumber, not pre-drilled
- Ball and non-return valves
- Barrel unions
- PVC interconnecting pipework
- Approximate tank weight excluding pump: 62kg
- Pump weight: 36kg
Liquids Handled
- Stormwater
- Raw sewage
- Tradewaste
- Effluent
Applications
- Basement pump-away
- Single dwellings
- Residential homes
- Larger residential pump-away systems
- Stormwater transfer
- Greywater drainage
- Tradewaste and effluent handling
- Light commercial pump-away applications
Installation Information
The station is freestanding and does not require a mounting kit or base. The pump is boxed separately for transit and mounted on site.
Important installation considerations include:
- The inlet penetration is not pre-drilled and must be cut by the plumber to suit the incoming invert.
- Pumps and floats must be accessible from the tank entry point. If confined space entry is needed, notify Aline prior to booking, as additional charges apply.
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Electrical connection must be carried out by a licensed electrician.
- Do not exceed the pump's 5m submersible depth or 40°C liquid temperature.
- Set float levels so the pump does not exceed 20 starts per hour.
- Select a load-rated cover where the station sits under a trafficable area.
- Confirm the duty point against the pump performance curve for the head at your site.
Specifications
| Specification | Details |
|---|---|
| Model Number | KPPS1200 |
| Supplier Code | SPPS/1200/AL1500A/A |
| Product Type | Packaged Stormwater Pump Station |
| Nominal Volume | 1200L |
| Depth | 1600mm |
| Outer Diameter | 1075mm |
| Body Diameter | 1020mm |
| Top Plate | 720mm x 720mm |
| Access Opening | 600mm x 600mm |
| Lid | Gastight Poly |
| Tank Material | Polyethylene |
| Configuration | Freestanding |
| Pump Options | Single Pump |
| Approximate Tank Weight (Excluding Pump) | 62kg |
| Pump Model | AL1500-1A |
| Pump Type | Open Channel Submersible Drainage |
| Pump Power | 1.5kW / 2.0 HP |
| Pump Voltage | 240V Single Phase |
| Continuous Amp Rating | 13A |
| Maximum Flow | 500 LPM |
| Flow at 5m Head | 680 LPM |
| Flow at 8m Head | 570 LPM |
| Flow at 11m Head | 410 LPM |
| Flow at 14m Head | 250 LPM |
| Flow at 17m Head | 100 LPM |
| Maximum Head | 17m |
| Discharge | 50mm (2") |
| Solids Handling | Up to 20mm |
| Pump Submersible Depth | 5m |
| Operating Temperature | 0°C to 40°C |
| Maximum Starts Per Hour | 20 |
| Pump Cable Length | 10m |
| Pump Body | Cast Iron |
| Impeller | Cast Iron, Open Multi-Vane Vortex |
| Mechanical Seal | Ceramic-Graphite, Silicon Carbide Alloy |
| Pump Dimensions (L x W x H) | 585 x 245 x 300mm |
| Pump Weight | 36kg |
| Manufacturer | Aline Pumps |
Lid and Riser Options
| Type | Weight | Height | Access Dimensions | Tank Lip |
|---|---|---|---|---|
| Poly (standard) | 5kg | 50mm | 600x600mm | Compatible |
| Galvanised Grate | 25kg | 50mm | 600x600mm | Compatible |
| Solid Top - Class B | 37kg | 55mm | 600x600mm | Remove |
| Solid Top - Class D | 70kg | 105mm | 600x600mm | Remove |
| Poly Riser 150mm | 5kg | 150mm | 600x600mm | Remove |
| Poly Riser 300mm | 10kg | 300mm | 600x600mm | Remove |
Aline's specification table lists a maximum flow of 500 LPM while also quoting 680 LPM at 5m head, which cannot both hold. The brochure page documents the manual AL1500-1; this station is supplied with the automatic AL1500-1A, which carries an integrated float. Confirm the duty point against the current manufacturer's curve before ordering.
What's Included
- 1 x 1200L Polyethylene Pump Station Tank (freestanding)
- 1 x Aline Sabre AL1500-1A Automatic Submersible Drainage Pump 1.5kW 240V (boxed separately for transit, easily mounted on site)
- 1 x Gastight Poly Lid 600mm x 600mm
- 1 x Pre-Installed Ball Valve
- 1 x Pre-Installed Non-Return Valve
- 1 x Set of Barrel Unions
- 1 x Set of PVC Interconnecting Pipework
The inlet pipe and discharge pipework beyond the tank are supplied and installed separately by the plumber.
Downloads
Important Notes
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Pump sizing and configuration should be selected based on the application requirements and site conditions.
- Please note: Waternex is not responsible for incorrect pump or pump station sizing without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense.
