Kwikflo 250L Stormwater Pump Station Package Pre-assembled
Free Express Shipping Australia-Wide
Found a better price elsewhere? We’ll beat it.

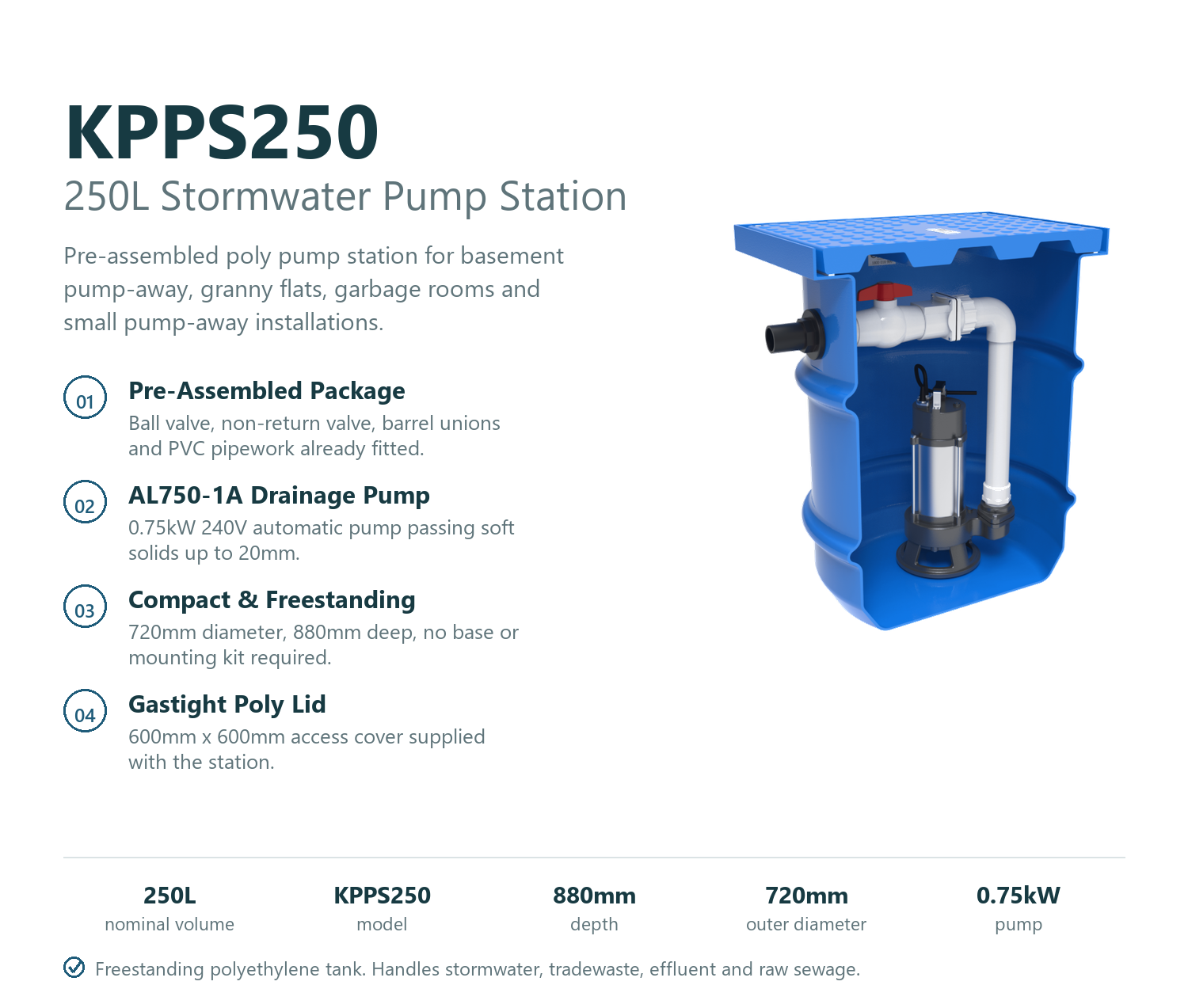

The Kwikflo KPPS250 250L Stormwater Pump Station is a pre-assembled, freestanding poly pump station supplied with an Aline Sabre AL750-1A 0.75kW 240V automatic drainage pump and a gastight 600mm x 600mm poly lid. It is the stormwater and drainage counterpart to our sewer KPPS250 package, fitted with a drainage pump instead of a cutter pump. Built for basement pump-away, granny flats, garbage rooms and small pump-away installations, it arrives with the internal valves and pipework already fitted so the site work is reduced to connecting the inlet and discharge.
Highlights
- Pre-assembled 250L polyethylene pump station, ready to install
- Aline Sabre AL750-1A 0.75kW 240V automatic drainage pump included
- Gastight poly lid, 600mm x 600mm, included
- Ball valve, non-return valve, barrel unions and PVC pipework pre-fitted
- Compact 720mm outer diameter and 880mm depth for tight spaces
- Freestanding design, no mounting kit or base required
- Handles stormwater, raw sewage, tradewaste and effluent
- Pump passes suspended solids up to 20mm
- 380 LPM maximum flow through a 50mm (2") discharge
- Single pump configuration
- Pump submersible to 5m with a 10m cable
The Stormwater Version of the KPPS250
The KPPS250 tank is the same unit used in our sewer pump station package. What changes is the pump inside it.
The sewer package carries an ALC750 high head cutter pump, built to shred solids in raw sewage. This stormwater package carries the AL750-1A drainage pump, an open multi-vane vortex design suited to greywater, stormwater and basement drainage where cutting is not required. If the duty is sewage with solids, the cutter version is the correct choice.

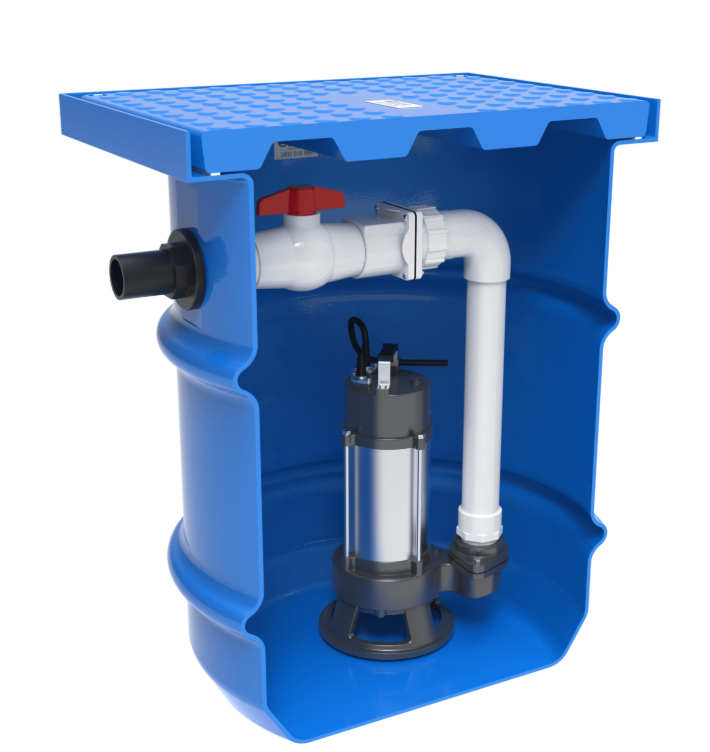

Pre-Assembled to Cut Site Time
The internal components are fitted before the station leaves the factory: ball valve, non-return valve, barrel unions and the PVC interconnecting pipework.
The inlet pipe penetration is not pre-drilled and is to be installed by the plumber to suit the incoming invert level on site. The discharge penetration sits below the tank opening.
The pump is boxed separately for transit and is easily mounted on site.

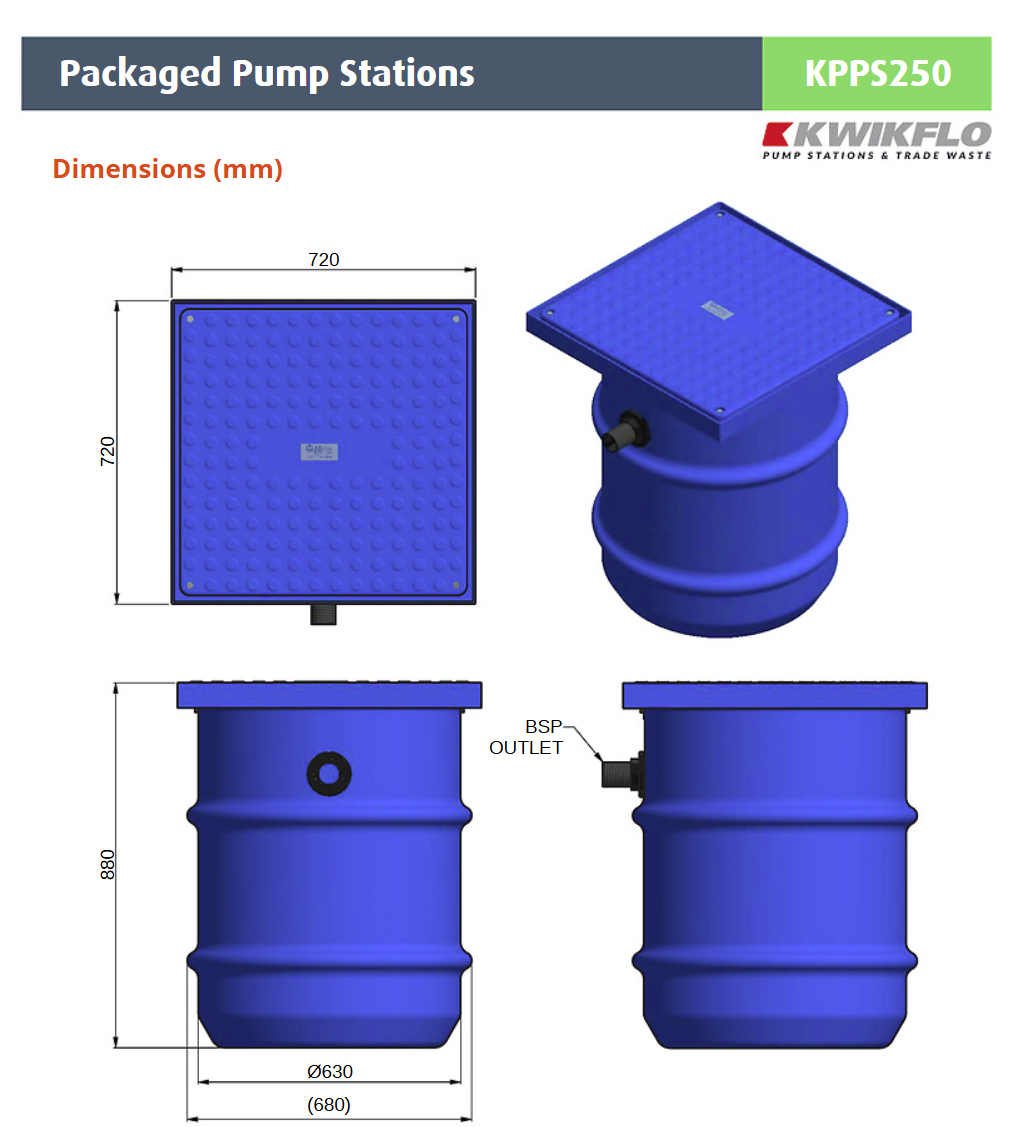

Compact Enough for a Retrofit
At 720mm outer diameter and 880mm deep, the station fits into tight spaces where a larger pit cannot go, which makes it a common choice for basement pump-away and retrofit work in existing buildings.
It is freestanding, so no concrete base or mounting kit is needed.

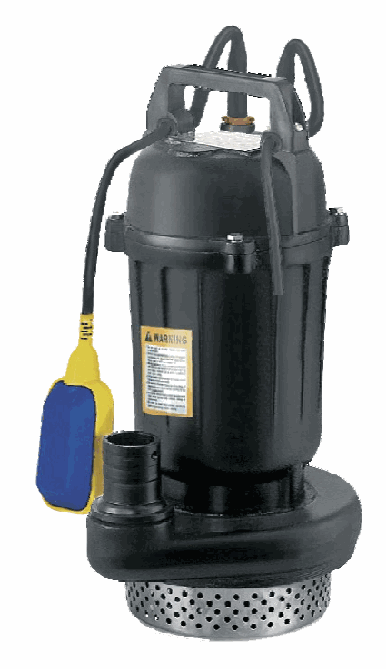

The AL750-1A Drainage Pump
The pump is a 0.75kW single phase submersible drainage pump with a cast iron body and cast iron impeller, running a ceramic-graphite and silicon carbide alloy mechanical seal.
The open multi-vane vortex impeller keeps a clear path through the pump, so soft solids up to 20mm pass rather than wrap and clog. It is rated to 5m submersible depth, liquid temperatures up to 40°C, and a maximum of 20 starts per hour.

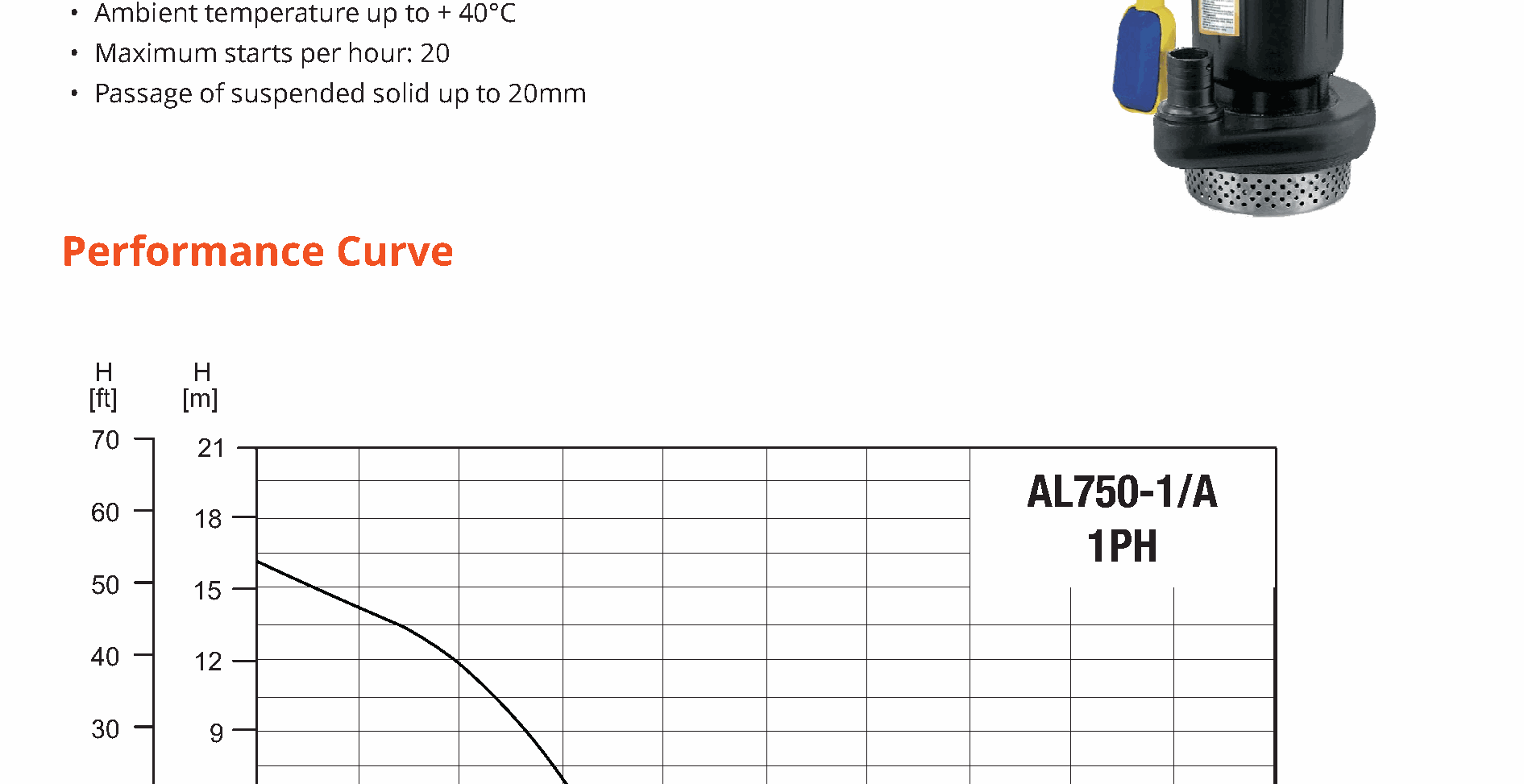

Maximum flow is 380 LPM. The pump delivers 370 LPM at 3m head, 320 LPM at 6m, 270 LPM at 9m, 190 LPM at 12m and 50 LPM at 15m.
Features
- Pre-assembled packaged pump station
- 250L polyethylene holding tank
- Reinforced tank construction
- Freestanding configuration
- Single pump configuration
- Gastight poly lid 600mm x 600mm
- Pre-installed ball valve
- Pre-installed non-return valve
- Pre-installed barrel unions
- Pre-installed PVC interconnecting pipework
- Discharge penetration below tank opening
- AL750-1A automatic submersible drainage pump
- 0.75kW / 1.0 HP single phase 240V pump
- Cast iron pump body and impeller
- Ceramic-graphite and silicon carbide alloy mechanical seal
- Open multi-vane vortex centrifugal impeller
- Passage of suspended solids up to 20mm
- Pump submersible depth to 5m
- 10m pump cable
- Maximum 20 pump starts per hour
Construction
- Polyethylene holding tank, reinforced
- 250L nominal volume
- 880mm depth
- 720mm outer diameter
- 605mm inner diameter
- 600mm x 600mm access cover
- Gastight poly lid
- Inlet pipe penetration to be installed by plumber, not pre-drilled
- Discharge penetration located below the tank opening
- Ball and non-return valves
- Barrel unions
- PVC interconnecting pipework
- Approximate tank weight excluding pump: 25kg
- Pump weight: 27kg
Liquids Handled
- Stormwater
- Raw sewage
- Tradewaste
- Effluent
Applications
- Basement pump-away
- Granny flats
- Garbage rooms
- Small pump-away applications
- Small-scale commercial installations
- Stormwater removal below the mains line
- Greywater drainage
- Retrofit installations in tight spaces
Installation Information
The station is freestanding and does not require a mounting kit or base. The pump is boxed separately for transit and mounted on site.
Important installation considerations include:
- The inlet penetration is not pre-drilled and must be cut by the plumber to suit the incoming invert.
- The discharge penetration is located below the tank opening.
- Pumps and floats must be accessible from the tank entry point. If confined space entry is needed, notify Aline prior to booking, as additional charges apply.
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Electrical connection must be carried out by a licensed electrician.
- Do not exceed the pump's 5m submersible depth or 40°C liquid temperature.
- Set float levels so the pump does not exceed 20 starts per hour.
- Confirm the duty point against the pump performance curve for the head at your site.
Specifications
| Specification | Details |
|---|---|
| Model Number | KPPS250 |
| Supplier Code | SPPS/250/AL750A/A |
| Product Type | Packaged Stormwater Pump Station |
| Nominal Volume | 250L |
| Depth | 880mm |
| Outer Diameter | 720mm |
| Inner Diameter | 605mm |
| Access Cover | 600mm x 600mm |
| Lid | Gastight Poly |
| Tank Material | Polyethylene, Reinforced |
| Configuration | Freestanding |
| Pump Options | Single Pump |
| Approximate Tank Weight (Excluding Pump) | 25kg |
| Pump Model | AL750-1A |
| Pump Type | Open Channel Submersible Drainage |
| Pump Power | 0.75kW / 1.0 HP |
| Pump Voltage | 240V Single Phase |
| Continuous Amp Rating | 6A |
| Operation | Manual / Automatic |
| Maximum Flow | 380 LPM |
| Flow at 3m Head | 370 LPM |
| Flow at 6m Head | 320 LPM |
| Flow at 9m Head | 270 LPM |
| Flow at 12m Head | 190 LPM |
| Flow at 15m Head | 50 LPM |
| Maximum Head | 13m |
| Discharge | 50mm (2") |
| Solids Handling | Up to 20mm |
| Pump Submersible Depth | 5m |
| Operating Temperature | 0°C to 40°C |
| Maximum Starts Per Hour | 20 |
| Pump Cable Length | 10m |
| Pump Body | Cast Iron |
| Impeller | Cast Iron, Open Multi-Vane Vortex |
| Mechanical Seal | Ceramic-Graphite, Silicon Carbide Alloy |
| Pump Dimensions (L x W x H) | 525 x 250 x 280mm |
| Pump Weight | 27kg |
| Manufacturer | Aline Pumps |
Aline's pump specification table lists a maximum head of 13m while also quoting 50 LPM at 15m head, and the published performance curve shows a shut-off head of approximately 16m. Confirm the duty point against the current manufacturer's curve before ordering.
What's Included
- 1 x 250L Polyethylene Pump Station Tank (freestanding)
- 1 x Aline Sabre AL750-1A Automatic Submersible Drainage Pump 0.75kW 240V (boxed separately for transit, easily mounted on site)
- 1 x Gastight Poly Lid 600mm x 600mm
- 1 x Pre-Installed Ball Valve
- 1 x Pre-Installed Non-Return Valve
- 1 x Set of Barrel Unions
- 1 x Set of PVC Interconnecting Pipework
The inlet pipe and discharge pipework beyond the tank are supplied and installed separately by the plumber.
Downloads
Important Notes
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Pumps and floats must be accessible from the tank entry point. If confined space entry is needed, notify Aline prior to booking, as additional charges apply.
- Please note: Waternex is not responsible for incorrect pump or pump station sizing without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense.
