Kwikflo Dual Stormwater Pump Station 900L 1200L 2000L - Drainage
30-day returns on unused stock in original packaging.
Overview

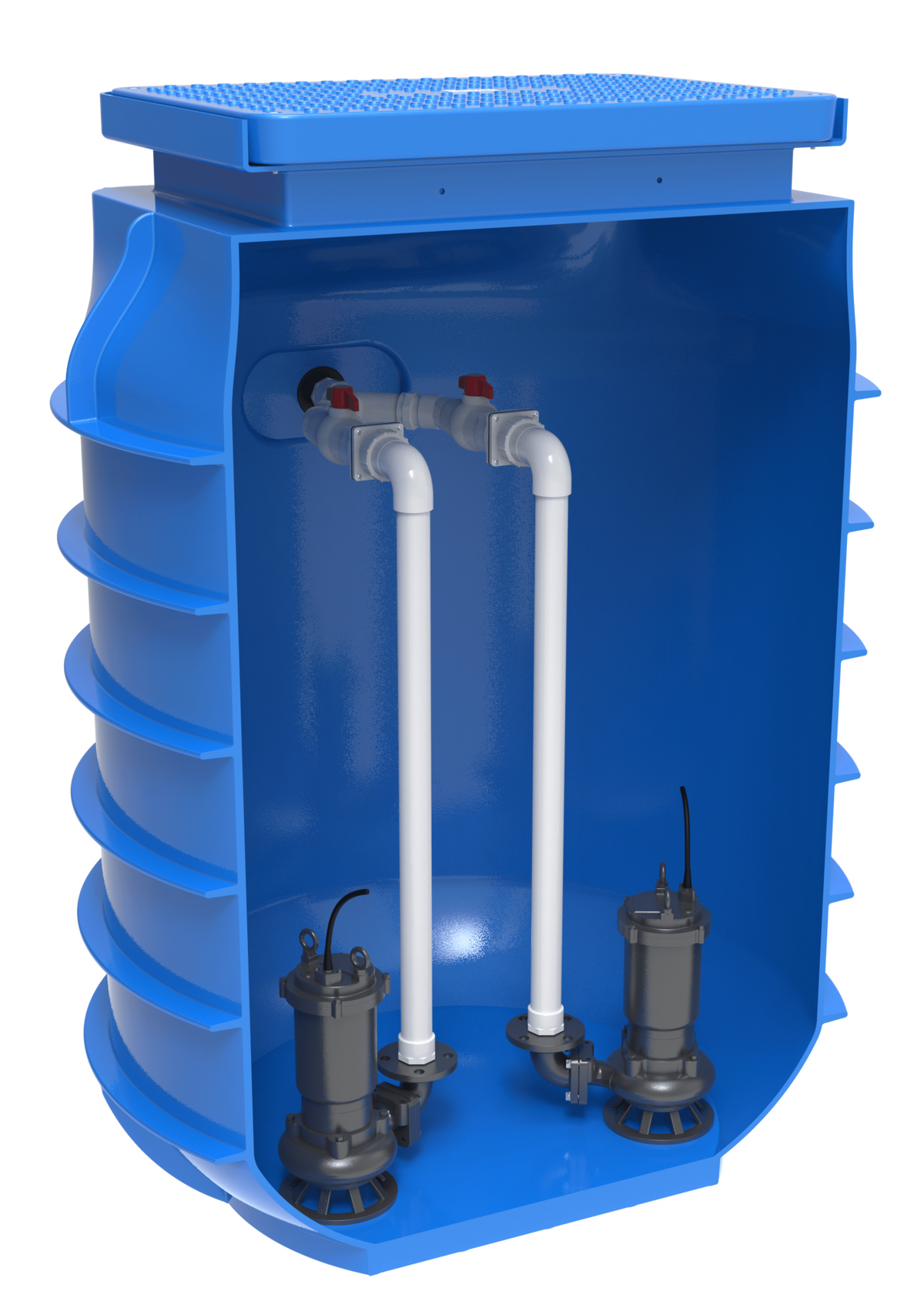

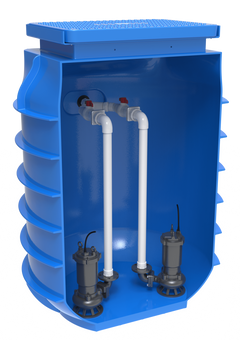

The Kwikflo Dual 900L, 1200L & 2000L Pump Station is a pre-assembled packaged pump station supplied with two pumps, in-tank valves and pipework, a control panel and float set, and a poly lid. Built to lift stormwater, drainage and greywater from below the sewer line, it arrives ready to drop in — the site work is connecting the inlet, the discharge and the power.
Highlights
- Pre-assembled packaged pump station, 900L, 1200L & 2000L polyethylene tank
- Two pumps in duty/standby with control panel and floats
- Drainage pumps for stormwater, drainage and greywater
- Ball valve, non-return valve, barrel unions and PVC pipework pre-fitted
- Poly lid included, with Class B and Class D cover options available
- Freestanding — no mounting kit or concrete base required
- Handles raw sewage, tradewaste, effluent and stormwater
- 600mm x 600mm access opening
- Risers available for deeper installations
Why Dual Pumps
A dual station runs two pumps in a duty/standby arrangement through a control panel. If one pump fails or the inflow spikes, the second takes over — so the station keeps running instead of backing up. That redundancy is why dual stations are specified for apartment blocks, commercial buildings, civil works and any site where an overflow is unacceptable.
Pre-Assembled to Cut Site Time
The internal components are fitted before the station leaves the factory: ball valves, non-return valves, barrel unions and the PVC interconnecting pipework, plus the control panel and float set on dual units.
The inlet penetration is not pre-drilled — it's cut by the plumber to suit the incoming invert on site. A moulded BSP outlet is provided.
Choosing the Pump
Strainer / drainage pumps (AL series) suit stormwater, greywater and drainage where the water carries no sewage solids.
Cutter pumps (ALC series) shred solids at the intake, so they handle blackwater — anything with a toilet in the run.
Grinder pumps (ALG series) go a step further, grinding waste to a fine slurry for long pump runs and higher heads.
Specifying a drainage pump on a sewage duty is the most common and most expensive mistake on these systems — it will block.
Model Comparison
| Model | Tank | Pump | Type | Power | Approx. Weight |
|---|---|---|---|---|---|
| 900L - AL750 Drainage, 240V | 900L | AL750-1A | Strainer | 0.75kW 240V | 109kg* |
| 900L - AL1500 Drainage, 415V | 900L | AL1500 | Strainer | 1.5kW 415V | 127kg* |
| 1200L - AL1500 Drainage, 415V | 1200L | AL1500 | Strainer | 1.5kW 415V | 144kg* |
| 2000L - AL1500 Drainage, 415V | 2000L | AL1500 | Strainer | 1.5kW 415V | 172kg* |
*Weights are calculated from published tank and pump figures where available and are estimates for planning only — confirm against Aline's technical data before arranging freight.
Construction
- Polyethylene holding tank
- Freestanding configuration
- Poly lid
- 600mm x 600mm access opening
- Moulded BSP outlet
- Inlet penetration cut on site by the plumber
- Ball and non-return valves
- Barrel unions
- PVC interconnecting pipework
- Control panel with float set
Liquids Handled
- Raw sewage
- Tradewaste
- Effluent
- Stormwater
Applications
- Apartment and unit blocks
- Commercial buildings
- Civil and industrial developments
- Sites where an overflow is unacceptable
- Basement pump-away
- Below-sewer drainage
- Stormwater transfer
- Tradewaste and effluent handling
Installation Information
The station is freestanding and does not require a base or mounting kit. Pumps are boxed separately for transit and fitted on site.
- The inlet penetration is not pre-drilled and must be cut to suit the incoming invert.
- Pumps and floats must be accessible from the tank entry point. Notify Aline before booking if confined space entry is required, as additional charges apply.
- Have the site assessed by a qualified professional for hydrostatic pressure risk prior to installation.
- Electrical connection must be carried out by a licensed electrician.
- 415V models require three-phase supply — confirm site power before ordering.
- Select a load-rated cover where the station sits under a trafficable area.
- Confirm the duty point against the pump curve for the head and flow at your site.
What's Included
- 1 x 900L, 1200L & 2000L Polyethylene Pump Station Tank (freestanding)
- 2 x Submersible Pump (model per variant selected)
- 1 x Poly Lid
- 1 x Set of Ball and Non-Return Valves
- 1 x Set of Barrel Unions
- 1 x PVC Interconnecting Pipework
- 1 x Control Panel
- 1 x Float Set
Inlet and discharge pipework beyond the tank, load-rated covers and risers are supplied separately.
Important Notes
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Pump sizing and configuration should be selected based on the application requirements and site conditions.
- Please note: Waternex is not responsible for incorrect pump or pump station sizing without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense.
