Kwikflo KUS Series Undersink Pump Station - Poly & Stainless Steel

SKU: KUSP40
Regular price $1,952.28
Unit price
per
Same Day Dispatch · VIC, NSW & QLD

Free Express Shipping Australia-Wide

Price Match Guarantee

Found a better price elsewhere? We’ll beat it.

(0 in cart)
100% Secure payments
Apple Pay
Google Pay
PayPal
Zip
Klarna
Visa
Mastercard
Shop Pay
Ask a Question About This Product

The Kwikflo KUS Series Undersink Pump Station is a pre-assembled greywater lifting station for sinks, basins and appliances below the sewer line. Available in a 40L polyethylene tank or 40L and 80L 304 stainless steel, each comes fitted with a submersible pump, in-tank valves and pipework. The vented, odour-sealed stainless models suit hygiene-sensitive commercial sites – cafes, kitchens, dental surgeries and laboratories.

Highlights

  • Pre-assembled undersink packaged pump station
  • Poly (40L) or 304 stainless steel (40L, 80L)
  • Lifts greywater, sink waste, trade waste, effluent and stormwater
  • Maximum head 7 or 11m depending on pump selected
  • Vortex, high-head or drainage pump options
  • Odour eliminated by vent and compressible gasket
  • PVC ball and non-return valves and barrel unions pre-fitted
  • High-level alarm option
  • Heavy-duty 304 stainless construction on SS models
  • Suits cafes, kitchens, dental surgeries and laboratories

Kwikflo KUS Series undersink pump station features and specifications

Greywater Lifting for Commercial Fixtures

Where a sink, basin or appliance sits below the sewer line, the KUS collects the greywater in its tank and pumps it up to the drain. The stainless steel models are built for hygiene-sensitive settings – dental surgeries, laboratories, cafes and commercial kitchens – where a wipe-clean, corrosion-resistant tank matters.

Poly or Stainless, 40L or 80L

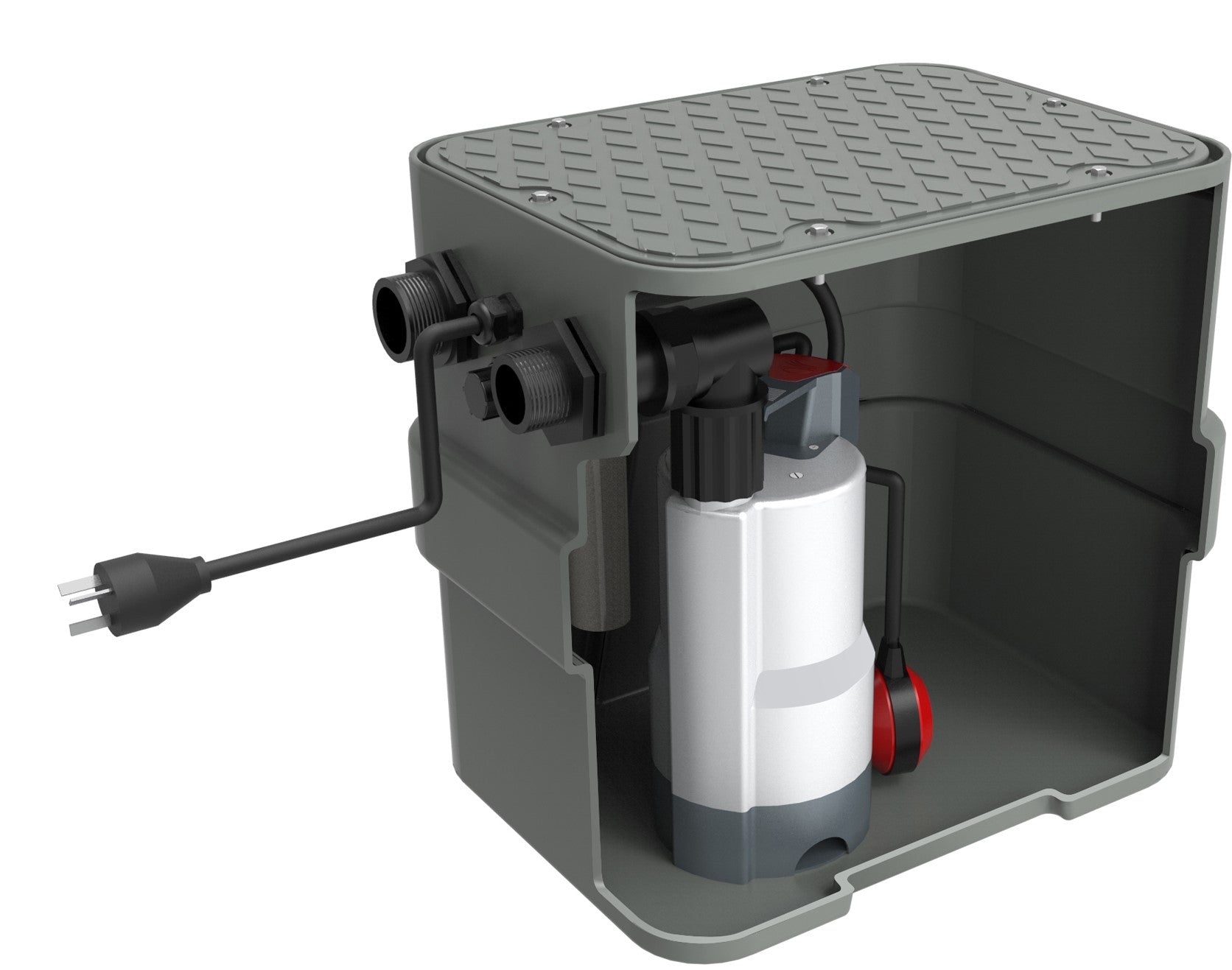

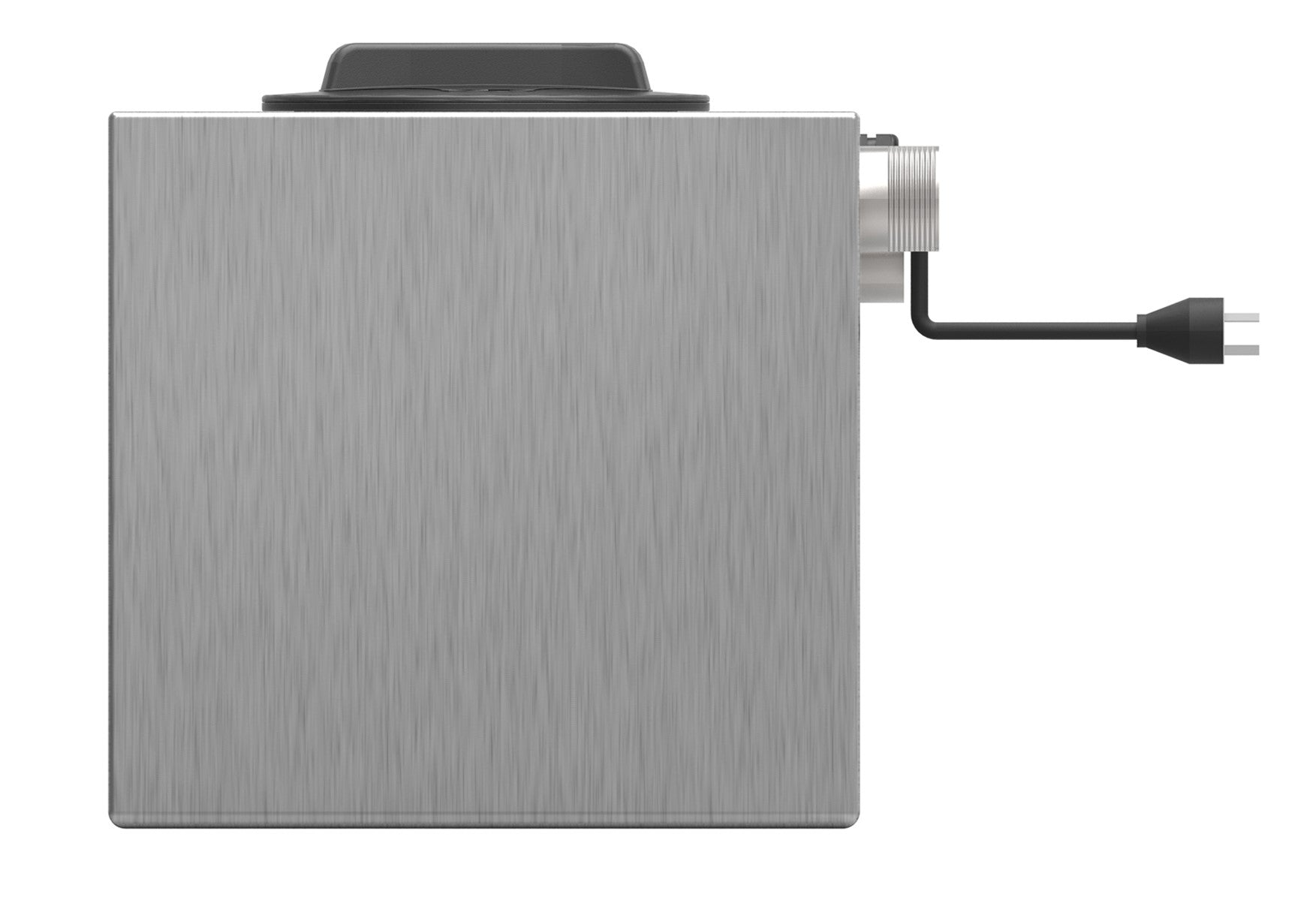

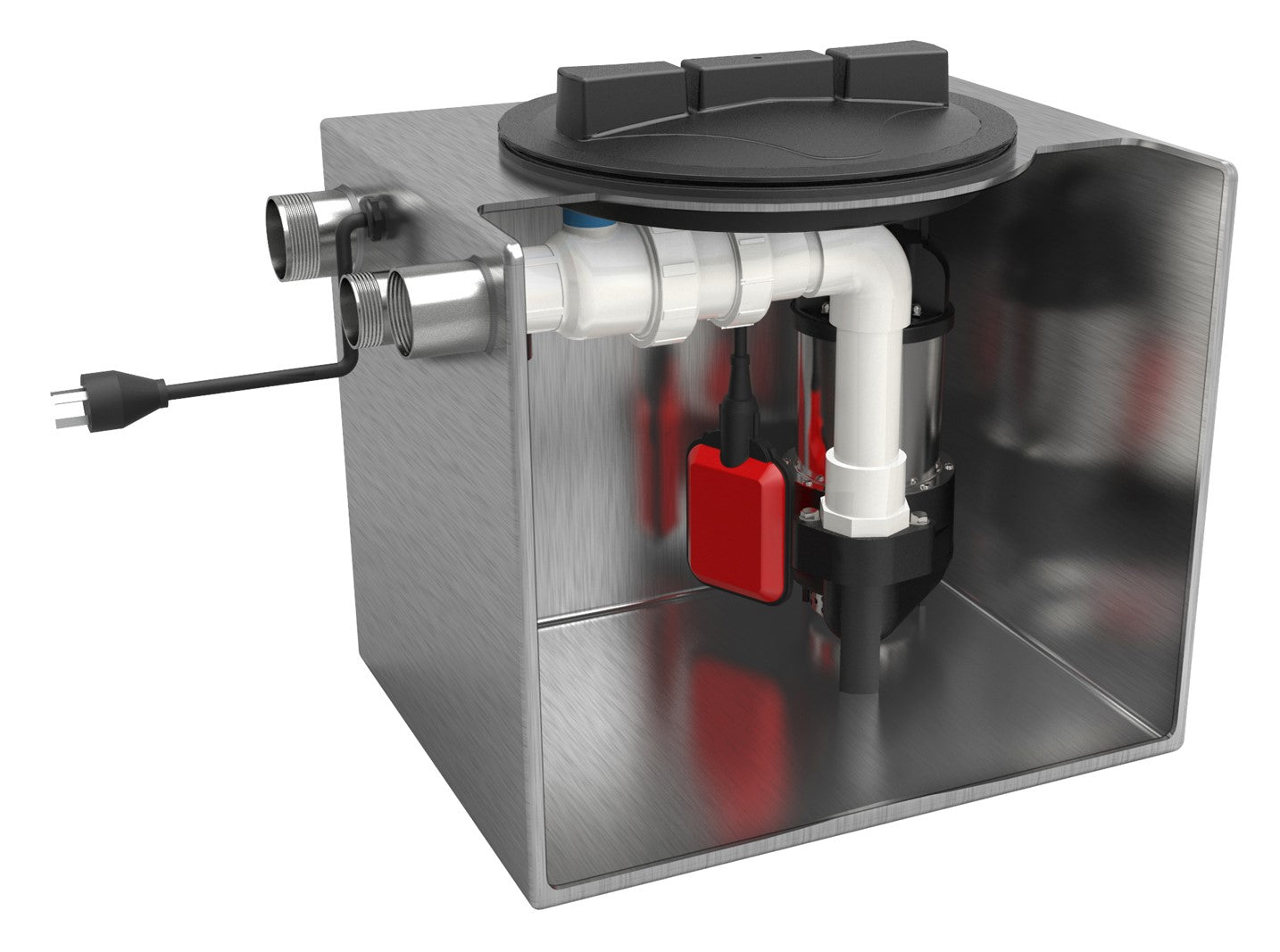

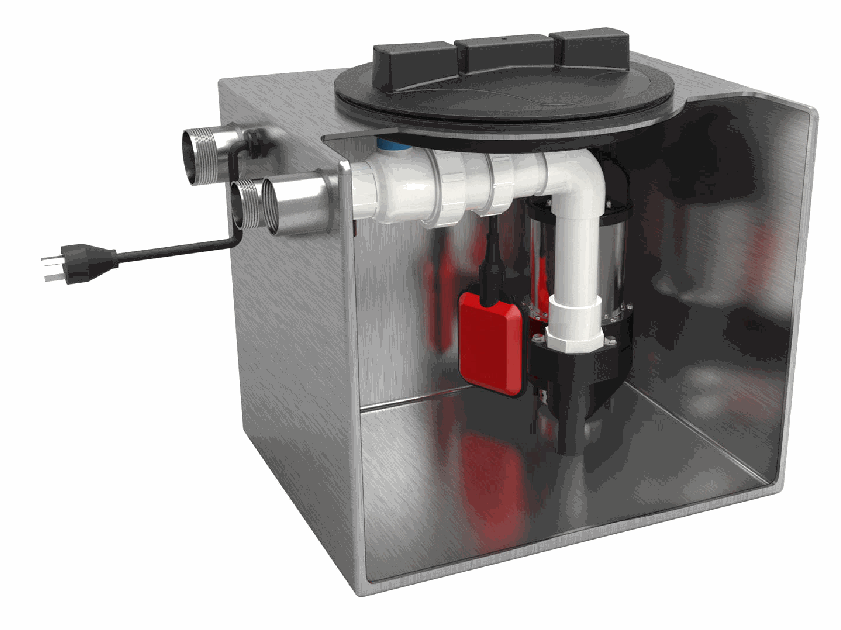

The KUSP40 uses a 40L polyethylene tank – the value option for lighter-duty greywater. The KUS40 and KUS80 step up to 304 stainless steel at 40L and 80L, adding capacity and a heavy-duty, hygienic build. All three are pre-plumbed with valves and pipework and require venting.

Sealed Against Odour

A vent and compressible gasket seal the tank so odour is contained – important for an undersink unit installed inside a cabinet in a food or clinical space. A high-level alarm can be added to warn of a rising level before it becomes a problem.

Features

  • Pre-assembled undersink pump station
  • 40L poly, or 40L / 80L 304 stainless steel
  • Submersible pump – vortex, high-head or drainage type
  • Maximum head 7 or 11m (pump-dependent)
  • PVC ball and non-return valves, barrel unions
  • PVC interconnecting pipework
  • Vent and compressible gasket for odour control
  • High-level alarm option
  • Requires venting
  • Heavy-duty stainless models

Liquids Handled

  • Greywater
  • Sink waste
  • Trade waste
  • Effluent
  • Stormwater

Applications

  • Cafes and commercial kitchens
  • Hobby rooms
  • Dental surgeries
  • Laboratories
  • Basement and lower-floor sinks below sewer
  • Hygiene-sensitive greywater lifting

Specifications

Model KUSP40 KUS40 KUS80
Tank Material Polyethylene 304 Stainless Steel 304 Stainless Steel
Nominal Volume 40L 40L 80L
Dimensions (D x W x H) 400 x 500 x 450mm
Approx. Weight ~12kg* ~22kg* 33kg
Maximum Head 7 or 11m 7 or 11m 7 or 11m
Pump Type Vortex, High-Head or Drainage (as specified)
Valves PVC Ball and Non-Return, Barrel Unions
Odour Control Vent and Compressible Gasket
Alarm High-Level Alarm Option
Venting Required
Manufacturer Aline Pumps (Kwikflo)

*40L weights are estimates pending confirmation against Aline's technical data. The 80L stainless weight (33kg) is from the manufacturer datasheet.

What's Included

Every KUS station ships pre-assembled:

  • 1 x Kwikflo KUS Undersink Tank (material and capacity per model below)
  • 1 x Submersible Pump, factory-fitted (vortex, high-head or drainage as specified)
  • 1 x Set of PVC Ball and Non-Return Valves with Barrel Unions
  • 1 x PVC Interconnecting Pipework
  • 1 x Float Switch
  • 1 x Sealed Lid with Compressible Gasket
  • 1 x Installation Manual

What changes between models:

Model Tank Material Capacity Dimensions (D x W x H) Approx. Weight
KUSP40 Polyethylene 40L Confirm with Aline ~12kg*
KUS40 304 Stainless Steel 40L Confirm with Aline ~22kg*
KUS80 304 Stainless Steel 80L 400 x 500 x 450mm 33kg

*40L weights are estimates pending confirmation against Aline's technical data. The KUS80 figure (33kg) is from the manufacturer datasheet. All models share the same maximum head of 7 or 11m depending on the pump selected, and all require venting.

A high-level alarm can be supplied separately. Vent line and inlet connections are installed by the plumber.
