Outback Joey 1-60 DC 3" 300W Submersible Solar Bore Pump Starter Kit
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview
The Outback Joey DC Solar Bore Pump Kit runs from solar through an intelligent DC MPPT controller, running directly from solar with no batteries, fuel or mains electricity. It pairs a 3" stainless steel submersible pump with a brushless motor and helical rotor with 1 x 450W solar panels, delivering up to 18 L/min and 60m of head for stock watering, tank filling, light irrigation and remote rural water supply.
Highlights
- Complete kit: pump, 1 x 450W panels, DC controller and cable
- Runs directly from solar, no batteries, fuel or mains needed
- 3" brushless submersible pump
- Up to 18 L/min flow
- Up to 60m maximum head
- 300W motor
- 40m submersible pump cable
- Dry-run and low-water protection
- Plug-and-play solar connections
- Australian supported Outback kit
- Free delivery within Australia
Direct Solar Power
The kit runs straight off its solar panels through an MPPT controller that tracks the best available power as the light changes through the day. There are no batteries to maintain and nothing to pay to run it once installed.
Specifications
| Specification | Details |
|---|---|
| Model | Joey 1-60 DC 3" 300W Submersible Solar Bore Pump Starter Kit |
| Supplier Code | OSP-3JOE-18-60-1P |
| Product Type | DC Solar Bore Pump Kit |
| Pump Power | 300W |
| Pump Type | Brushless submersible, helical rotor |
| Bore Size | 3" |
| Maximum Head | 60m |
| Maximum Flow | 18 L/min |
| Solar Panels | 1 x 450W (450W total) |
| Controller | DC MPPT |
| Pump Cable | 40m |
| Protection | Dry-run / low-water |
| Manufacturer | Outback Solar Pumps |
Applications
- Bore water pumping
- Stock and livestock watering
- Tank filling
- Light irrigation
- Remote and off-grid rural water supply

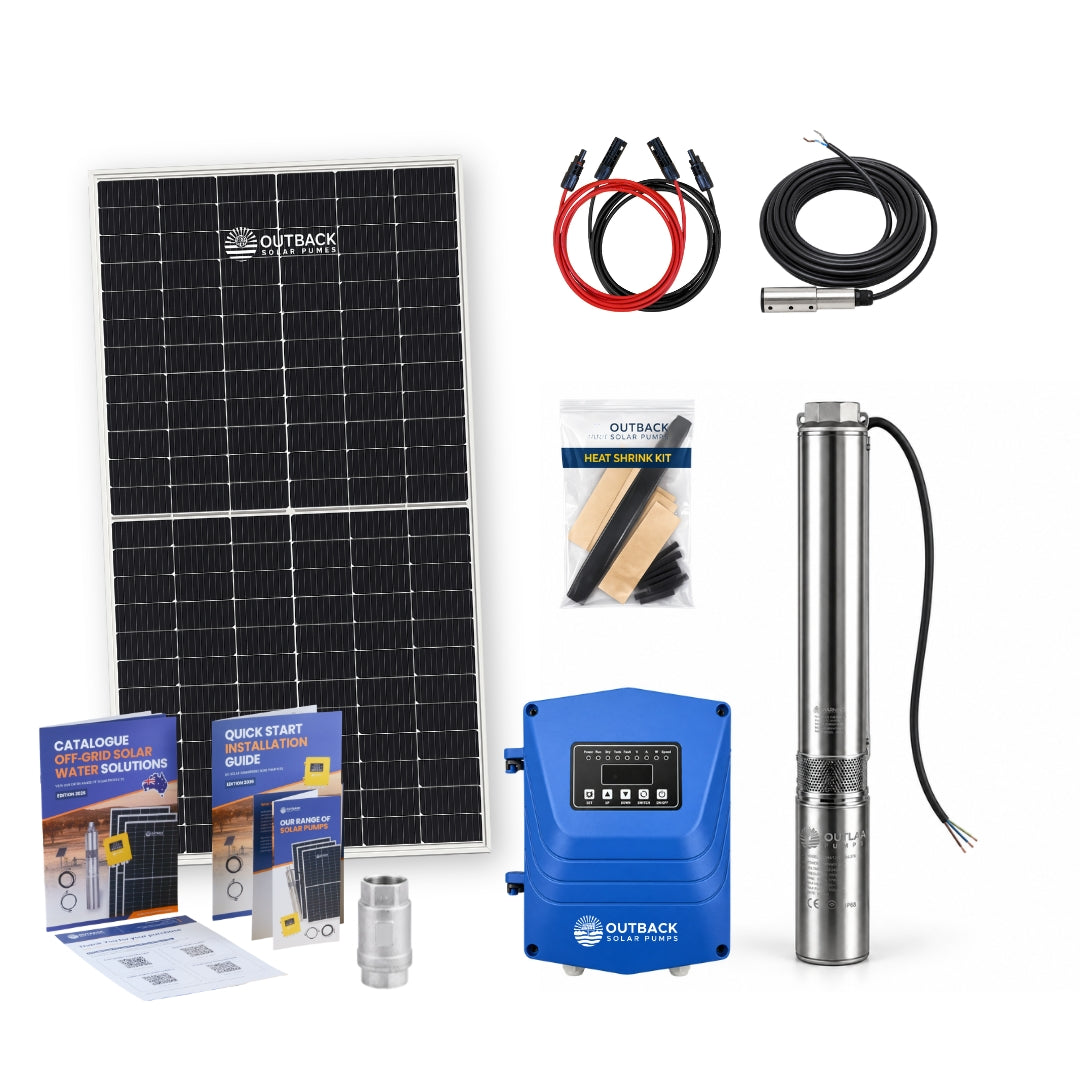

What's Included
- 1 x 450W Solar Panels
- 1 x Outback Joey Submersible Pump with 40m Cable
- 1 x AC/DC Hybrid MPPT Controller
- Plug-and-play solar connectors
- 1 x User Manual
Need Assistance or Ready to Order?
Our expert team is here to help you match the right kit to your bore depth and daily water needs. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support.
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
Do you offer trade pricing or project quantities?
We do. Trade accounts receive standing discount and priority dispatch. For developments and multi-unit sites we quote the whole schedule and stage deliveries to match your program. Apply for trade pricing or call 1300 930 847.
Working on a project?
Send us the schedule and we will price the lot - staged delivery to match your program, trade terms, and engineering sign-off if you need it.
