Outback Pathfinder QB60 800W Surface Solar Water Pump Kit – AC/DC Hybrid with Frame
Free Express Shipping Australia-Wide
Found a better price elsewhere? We’ll beat it.
The Outback Pathfinder QB60 AC/DC Hybrid 800W Surface Solar Water Transfer Pump Kit is a powerful hybrid solar surface pump designed for reliable water transfer, irrigation, tank filling, livestock watering, and general-purpose water supply where submersible pumps are not suitable. Built for dependable daily operation with automatic solar-to-AC backup capability, this complete system combines strong pressure performance, intelligent pump protection, and efficient off-grid operation for Australian rural and remote properties. With a brushless DC motor, hybrid AC/DC MPPT controller, and dual 450W bifacial solar panels, the Pathfinder delivers stable water supply even during poor weather or higher-demand periods.
Highlights
• Delivers up to 37LPM (2,200L/Hr) for reliable tank filling, irrigation, livestock watering, and rural water transfer
• Powerful 62m maximum head with up to 8m suction lift for demanding surface pumping applications
• Hybrid AC/DC operation automatically prioritises solar with seamless mains or generator backup when required
• High-efficiency brushless DC motor provides smooth operation, lower maintenance, and long service life
• Includes 2 x 450W bifacial monocrystalline solar panels for strong solar performance and improved low-light operation
• Intelligent MPPT controller continuously adjusts solar input for stable daily pumping performance
• Automatic dry-run protection with overload, thermal, over-voltage, and under-voltage protection built in
• Soft-start motor control reduces startup stress and helps extend motor life
• Heavy-duty construction featuring brass impeller, copper windings, NSK bearings, and powder-coated cast iron frame
• IP65-rated outdoor controller enclosure built for harsh Australian rural and off-grid conditions
Pathfinder Package Inclusions
Reliable Hybrid Water Transfer Performance
The Outback Pathfinder AC/DC 800W is designed for properties requiring dependable surface water transfer where submersible pumps are not practical. Ideal for dams, tanks, rivers, creeks, irrigation systems, and livestock watering, this hybrid system delivers strong pressure and reliable daily operation across a wide range of rural applications.
Its surface-mounted centrifugal pump design provides efficient water transfer while maintaining consistent performance for moderate pressure applications.
Automatic Solar & AC Backup Operation
One of the biggest advantages of the Pathfinder system is its intelligent AC/DC hybrid capability. The included MPPT controller automatically prioritises solar power during the day while seamlessly allowing backup operation from mains power or a generator when required.
This helps maintain water supply during poor weather conditions, overnight operation, or periods of increased water demand without requiring batteries or an inverter.
Built For Harsh Australian Conditions
The Pathfinder is engineered using industrial-grade components selected for durability and long-term outdoor reliability.

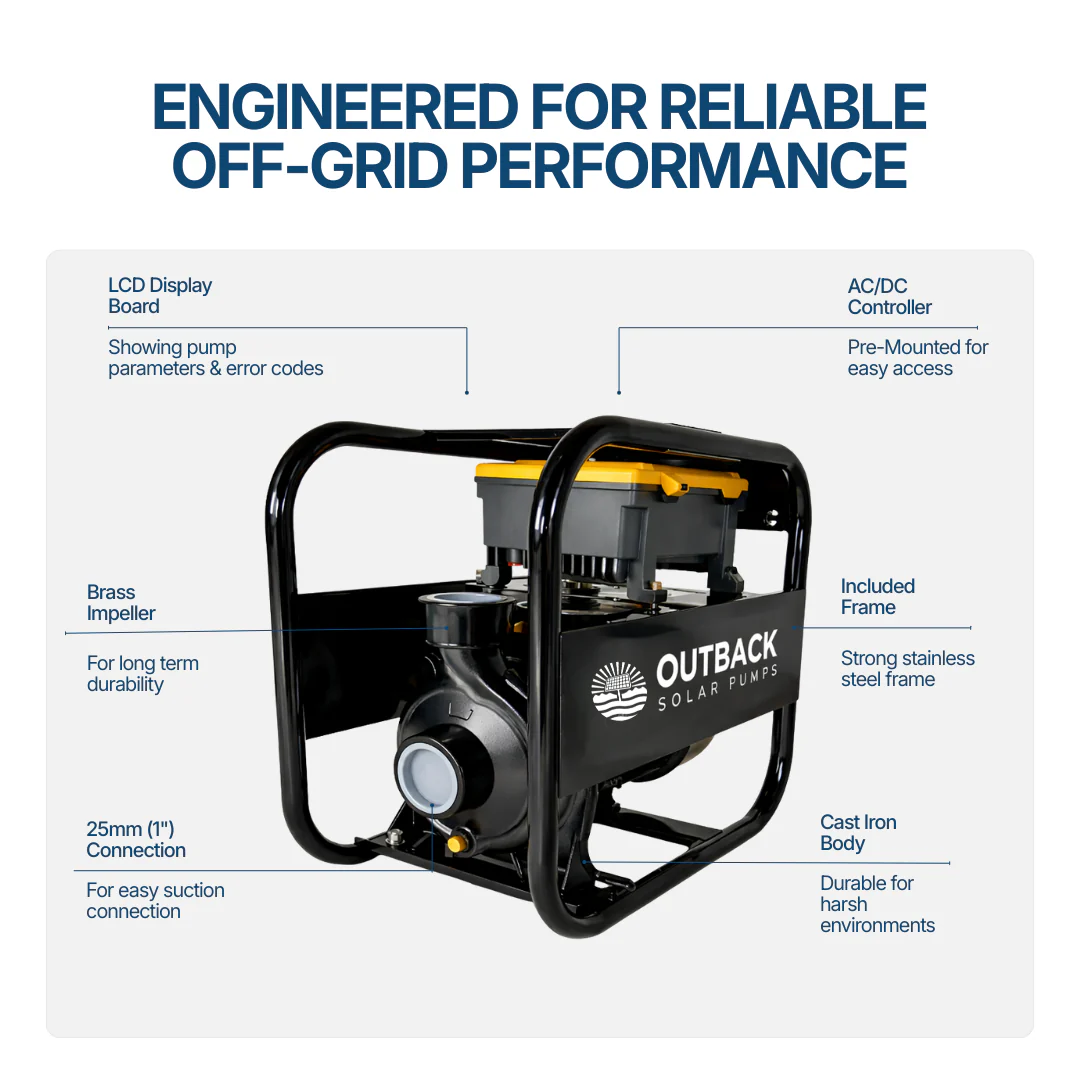

The system features a high-efficiency brushless DC motor, brass impeller, copper windings, NSK bearings, and a heavy-duty cast iron powder-coated frame designed to withstand demanding rural environments.
The included dual-glass bifacial solar panels are wind and hail rated with anodised aluminium frames for long service life outdoors.
Intelligent Pump Protection & Monitoring
The supplied hybrid MPPT controller actively monitors operating conditions to protect the pump and improve system stability throughout the day.
Built-in protection features include:
• Automatic dry-run protection with auto restart
• Overload protection
• Thermal protection
• Over-voltage and under-voltage protection
• Soft-start motor control
• Automatic fault diagnostics and fault codes
• LED status indicators and live operating feedback
The controller provides real-time monitoring of voltage, current, power usage, speed, and system faults while housed inside a weather-resistant IP65 enclosure suitable for outdoor installation.
Designed For Everyday Rural Water Applications
The Pathfinder is ideal for:
• Water transfer from dams, rivers, creeks, and tanks
• Livestock watering systems
• Irrigation systems
• Tank filling
• Remote water supply
• Off-grid properties
• Rural and farm water transfer applications
• Applications requiring surface-mounted pumps instead of bore pumps

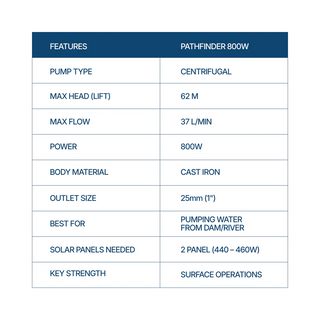

Specifications
Model: OSP-1PAT-37-62-2P
Brand: Outback Solar Pumps
Pump Type: Surface-Mounted Centrifugal Solar Pump
Motor: Brushless DC (BLDC) Motor
Max Flow: 37LPM (2,200L/Hr)
Max Head: 62m
Suction Lift: Up To 8m
Outlet Size: 25mm Female (1" BSP)
Power Input: DC Solar Input via MPPT Controller (Two-Panel Series System)
Pump Cable: 10m Pre-Wired Motor Cable Included
Controller Type: AC/DC Hybrid MPPT Solar Pump Controller
Controller Protection: Dry-Run, Overload, Thermal, Over & Under Voltage Protection
Cooling Method: Fanless Natural Air Convection
Ingress Rating: IP65 Outdoor Rated
Solar Panel: 2 x 450W N-Type Bifacial Monocrystalline Panels
Panel Construction: Dual-Glass With Aluminium Frames
Low-Light Performance: Enhanced Morning & Late Afternoon Output
System Operation: Direct Solar, AC Mains, or Generator Compatible — No Inverter Required
Durability: Wind & Hail Rated Solar Panels with Heavy-Duty Outdoor Construction

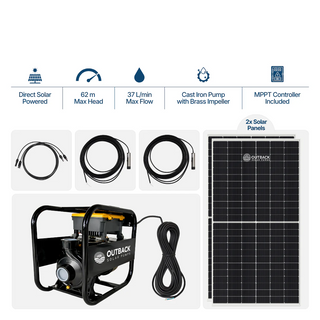

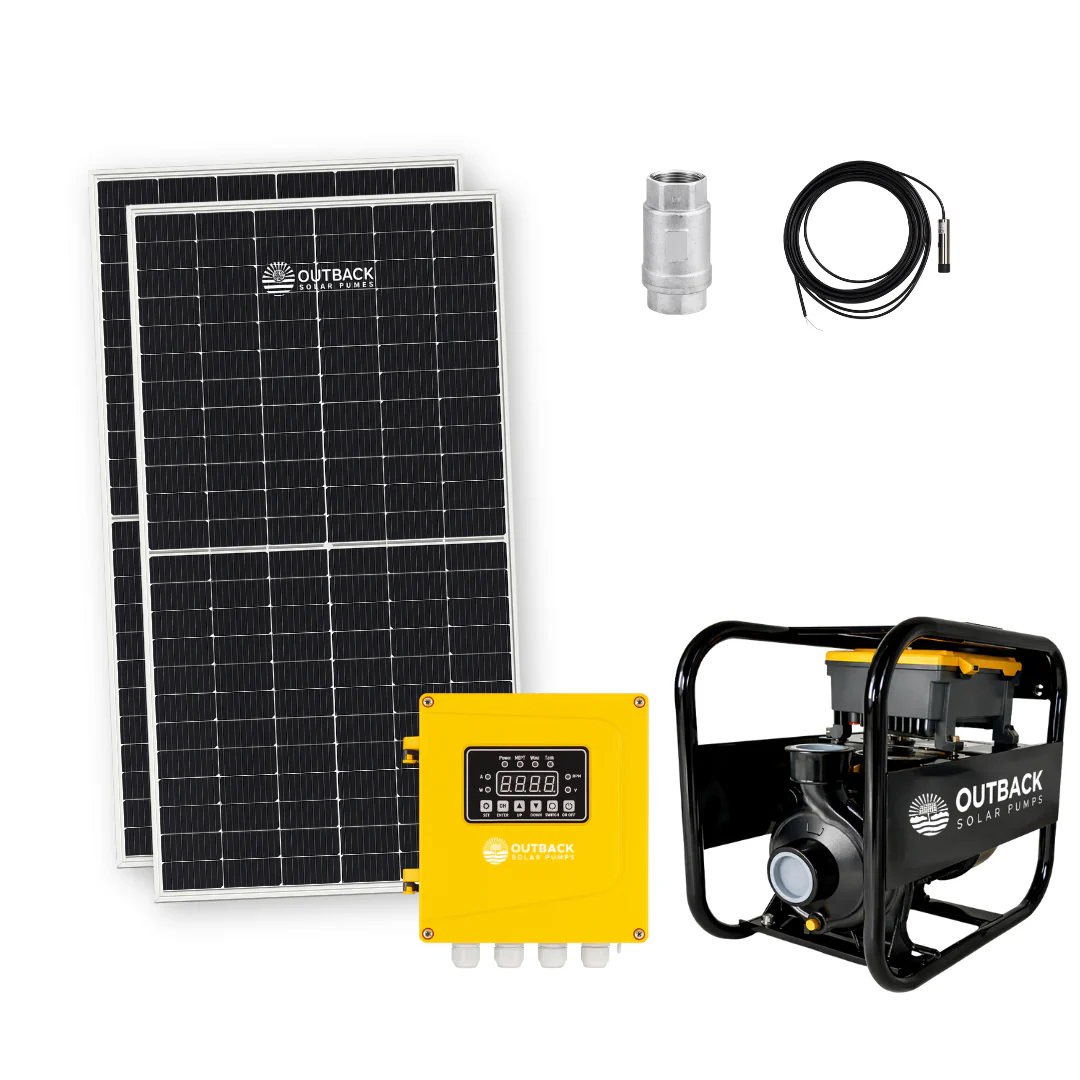

What's Included
1 x Surface Pump & Motor
1 x Cast Iron Powder-Coated Frame
1 x 10m Pre-Wired Motor Cable
1 x 30m Low-Level Probe / Float Switch
1 x MPPT AC/DC Hybrid Solar Pump Controller
2 x 450W Monocrystalline Solar Panels
2 x 3m MC4 Solar Extension Cables
1 x 25mm Foot Valve with Strainer
Pressure switches, extended cabling, and additional solar panels available separately if required.
