Outback Pioneer 600W AC/DC Full Solar Bore Pump Kit – 3" Submersible Bore Water System
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview

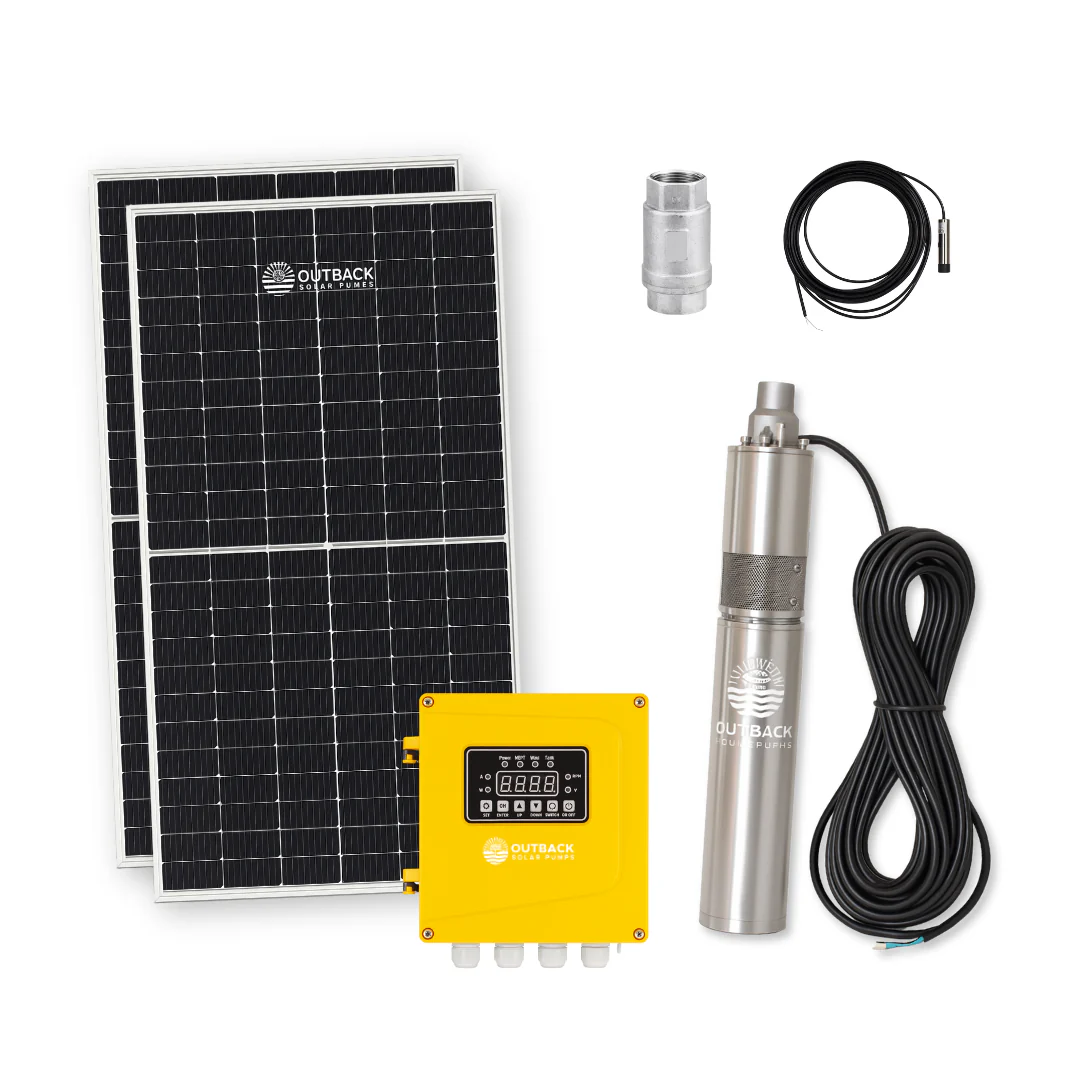

The Outback Pioneer 1-100 AC/DC Hybrid 3" 600W Submersible Solar Bore Pump Complete Kit is a powerful shallow-bore solar pumping solution designed for reliable stock water, tank filling, irrigation, and off-grid water supply across rural and remote properties. Built for dependable daily operation with solar-first hybrid flexibility, the Pioneer combines a robust stainless steel submersible pump, intelligent AC/DC controller, and dual 450W solar panels to deliver strong water output and stable performance even during low-light conditions. Ideal for low-yield bores requiring higher lift capability, the Pioneer delivers efficient operation with seamless backup from mains power or a generator when required.

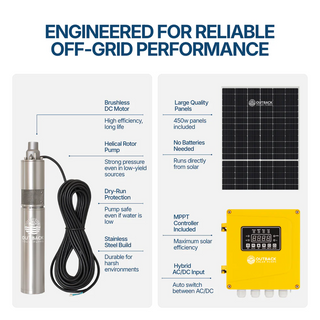

Highlights
• Delivers up to 18LPM (1,100L/Hr) for reliable tank filling, livestock watering, irrigation, and everyday off-grid water supply
• Powerful 100 metre maximum head provides strong lift capability for deeper shallow bores and long pipe runs
• Hybrid AC/DC operation automatically prioritises solar power while allowing seamless mains or generator backup when required
• High-efficiency brushless DC motor delivers smooth operation, lower maintenance, and long-term reliability in remote environments
• Includes 2 x 450W bifacial monocrystalline solar panels for strong solar performance and improved low-light pumping capability
• Efficient screw rotor / helical rotor pump design maintains stable flow and excellent lifting performance under varying conditions
• Intelligent MPPT controller continuously adjusts solar input throughout the day for stable pumping and improved water production
• Integrated dry-run, overload, thermal, low-voltage, and over-voltage protection helps protect the system during operation
• Heavy-duty stainless steel pump construction designed for harsh Australian rural and off-grid conditions
• IP65-rated outdoor controller enclosure built for reliable long-term outdoor installation
Reliable Water Supply For Rural Properties
The Outback Pioneer AC/DC 600W is designed for properties requiring dependable daily water supply from shallow and low-yield bores. Whether supplying stock troughs, filling tanks, watering gardens, or supporting irrigation systems, the Pioneer delivers stable off-grid water transfer with strong lifting capability.
Its efficient screw rotor pump design helps maintain consistent flow across higher heads while the brushless DC motor provides smooth, continuous operation with reduced wear.
Hybrid Solar & AC Backup Flexibility
The Pioneer features intelligent AC/DC hybrid functionality, allowing the system to operate directly from solar power during the day while seamlessly switching to 240V AC mains or generator backup when required.
This provides greater reliability during cloudy weather, periods of increased water demand, or extended low-sun conditions — all without requiring batteries or an inverter.
Strong Solar Performance In Low-Light Conditions
Supplied with 2 x 450W N-Type bifacial monocrystalline solar panels, the Pioneer delivers strong startup and pumping performance throughout the day.
The oversized solar array improves low-light operation during mornings, afternoons, and cloudy weather while helping maximise total daily water output.
Intelligent Protection & System Monitoring
The included AC/DC hybrid MPPT controller actively manages pump performance while protecting the system from unstable operating conditions.
Protection features include:
• Automatic dry-run protection with auto restart
• Overload protection
• Thermal protection
• Low-voltage and over-voltage protection
• Soft-start motor control
• Automatic fault diagnostics and LED status indication
The controller is housed inside a weather-resistant IP65 enclosure suitable for permanent outdoor installation.
Designed For Australian Conditions
The Pioneer is engineered using durable, long-life components selected for reliable performance in harsh rural environments.
The system features stainless steel pump construction, brushless DC motor technology, precision-balanced internal components, and wind and hail-rated bifacial solar panels with tempered glass and aluminium frames.

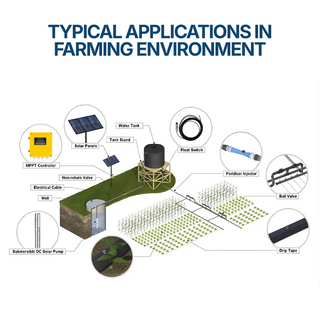

Ideal applications include:
• Livestock watering
• Tank filling
• Irrigation systems
• Remote homesteads
• Rural water supply
• Off-grid properties
• Low-yield bores
• Shallow bore water transfer

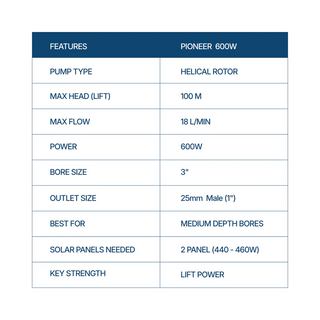

Specifications
Model: OSP-3PIO-18-100-2P
Brand: Outback Solar Pumps
Pump Type: 3" Submersible Screw Rotor / Helical Rotor Solar Bore Pump
Motor: Brushless DC Motor

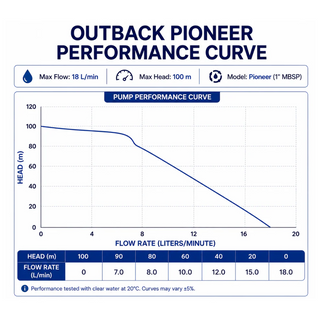

Max Flow: 18LPM (1,100L/Hr)
Max Head: 100m
Working Flow: 12–14LPM @ 50m
Pump Diameter: 75mm (3")
Outlet Size: 25mm Male (1" BSP)
Power Input: DC Solar Input via MPPT Controller (Two-Panel Series Operation)
Pump Cable: 40m Submersible Cable Included
Controller Type: AC/DC Hybrid MPPT Solar Pump Controller
Controller Protection: Dry-Run, Overload, Thermal, Low & Over Voltage Protection
Cooling Method: Fanless Natural Air Convection
Ingress Rating: IP65 Outdoor Rated
Controller Input Voltage: DC 60–450V / AC 150–240V Single Phase
Solar Panel: 2 x 450W N-Type Bifacial Monocrystalline Panels
Panel Construction: Dual-Glass With Aluminium Frames
Low-Light Performance: Enhanced Morning & Late Afternoon Output
System Operation: Direct Solar, AC Mains, or Generator Compatible — No Inverter Required
Warranty: 2-Year Pump & Controller Warranty
Solar Panel Performance Warranty: 30-Year Linear Performance Guarantee

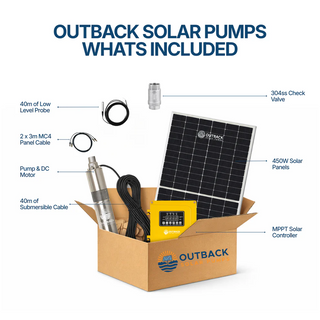

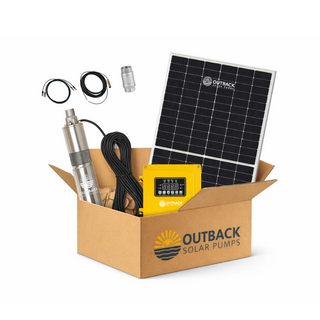

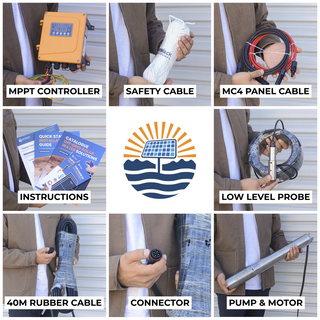

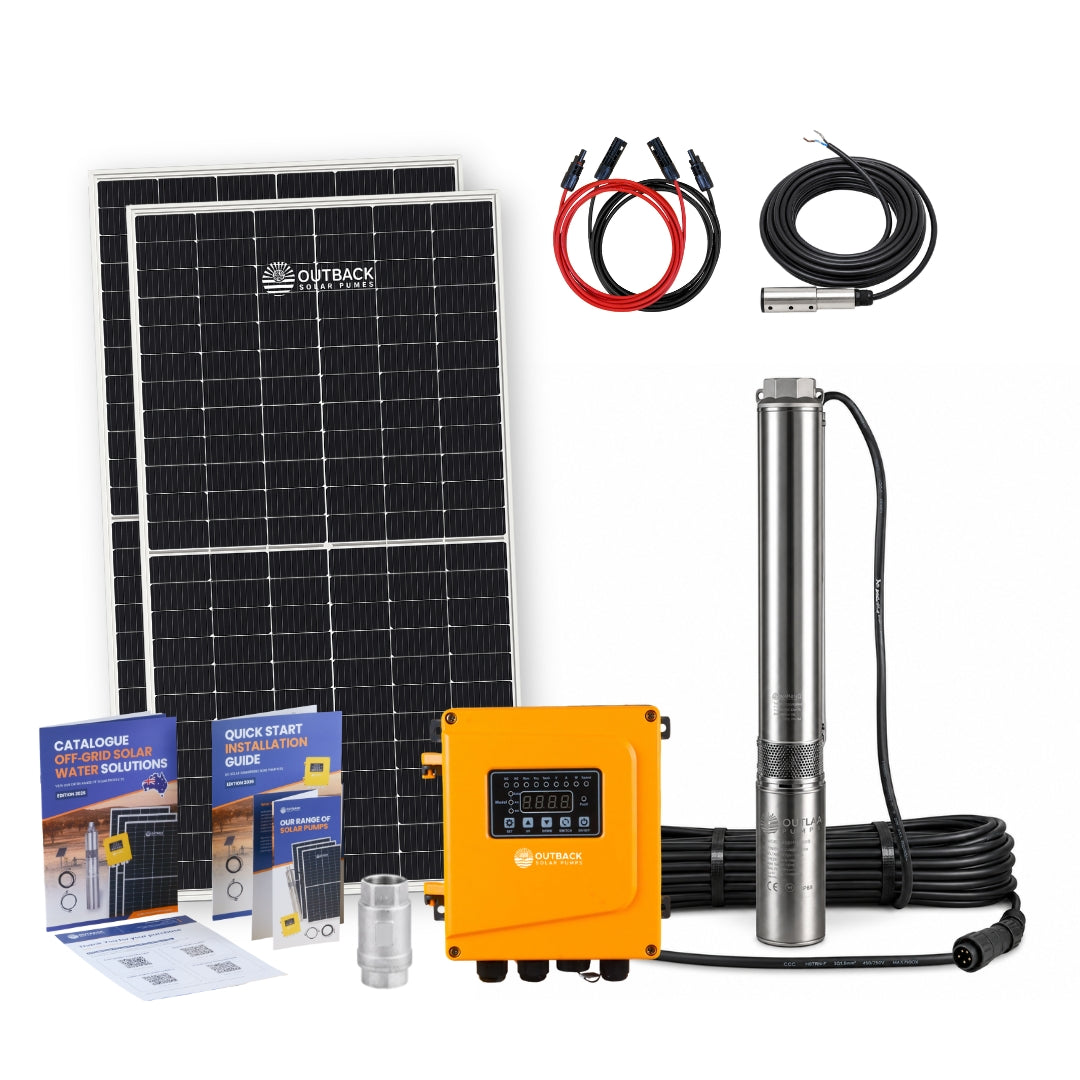

What's Included
1 x 600W 3" Submersible Pump & Motor
1 x 40m Pre-Wired Motor Cable
1 x 40m Low-Level Run-Dry Probe
1 x 40m 4mm Nylon Safety Cable
1 x MPPT AC/DC Hybrid Solar Pump Controller
2 x 450W Monocrystalline Solar Panels
2 x 3m MC4 Solar Extension Cables
1 x 25mm 304 Stainless Steel Check Non-Return Valve
Float switches, pressure switches, bore shrouds, extended cabling, and additional solar panels available separately if required.
Downloads
Pioneer Specifications Manual
Full Installation Manual
