Pedrollo SAR 100 BCm 10/50 Waste Water Lifting Station 100L
30-day returns on unused stock in original packaging.
Overview

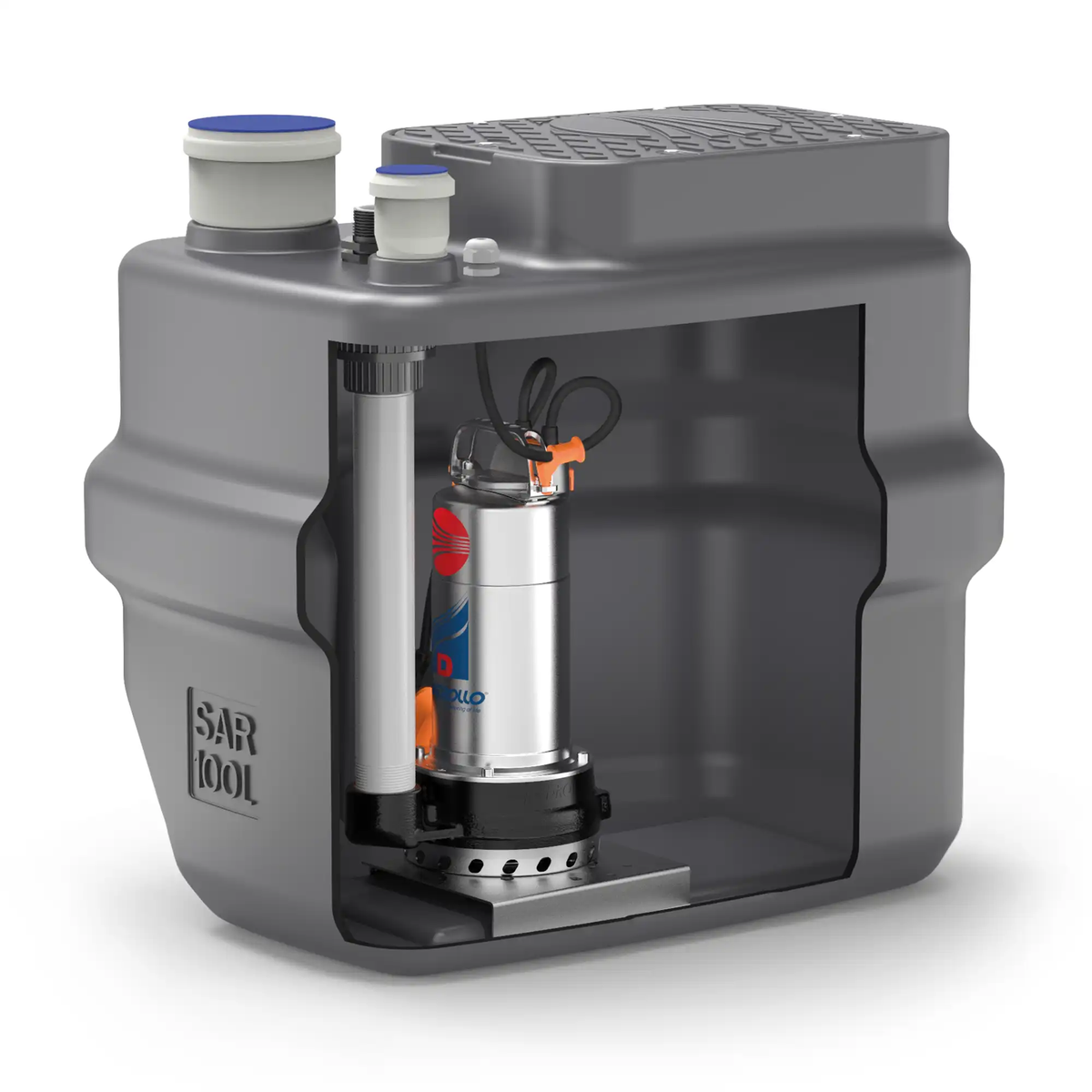

The Pedrollo SAR 100 is a 100 litre waste water lifting station for sites where gravity will not reach the sewer. It takes the discharge from washing machines, dishwashers, sinks and toilets and lifts it to the main line. This build is fitted with the BCm 10/50, a 0.75 kW cast iron channel impeller pump that handles dirty waste water rather than clear water only. It is the next size up from the 40 litre SAR 40.
Highlights
- 100 litre polyethylene collection tank
- Pedrollo BCm 10/50 pump, 0.75 kW and 1 HP, single phase 240 V
- 12 m maximum head, flow to 600 L/min
- Two channel stainless steel impeller, passes 50 mm solids
- DN 110 collection pipe connection
- 1 1/2 inch discharge connection
- 10 m power cable
- Installs on the floor or underground, inside or outside
Construction
- Polyethylene tank
- Two channel stainless steel impeller
- 10 m power cable fitted
Applications
- Basement and below sewer bathrooms
- Laundry and kitchen discharge
- Granny flats and extensions
- Sites where gravity fall to the sewer is not available
Specifications
| Model Number | SAR 100-BCm 10/50 |
| Tank Volume | 100 litres |
| Pump Model | Pedrollo BCm 10/50 |
| Pump Power P2 | 0.75 kW, 1 HP |
| Supply | 240 V single phase |
| Current | 5.5 A |
| Maximum Head | 12 m |
| Maximum Flow | 600 L/min |
| Solids Handling | 50 mm |
| Collection Pipe Connection | DN 110 |
| Discharge Connection | 1 1/2 inch |
| Power Cable | 10 m |
| Tank Material | Polyethylene |
What Is Included
- 1 x Pedrollo SAR 100 polyethylene tank with cover
- 1 x Pedrollo BCm 10/50 submersible pump
- 1 x 10 m power cable
- 1 x internal discharge pipework and non return valve
Installation Information
The SAR 100 cover is not rated for foot or vehicle traffic. Where the station is installed in a trafficked area it needs a separate load rated pit cover over the top.
Warranty
1 year warranty.
Downloads
Need Assistance or Ready to Order?
Our team can size this for your job and quote freight to your postcode. Email sales@waternex.com.au or call 1300 930 847.
Downloads
Specification sheets and certificates for this product.
