REEFE RDW150E.PTS Self Priming Deep Well Pump With Injector and Pressure Tank
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview

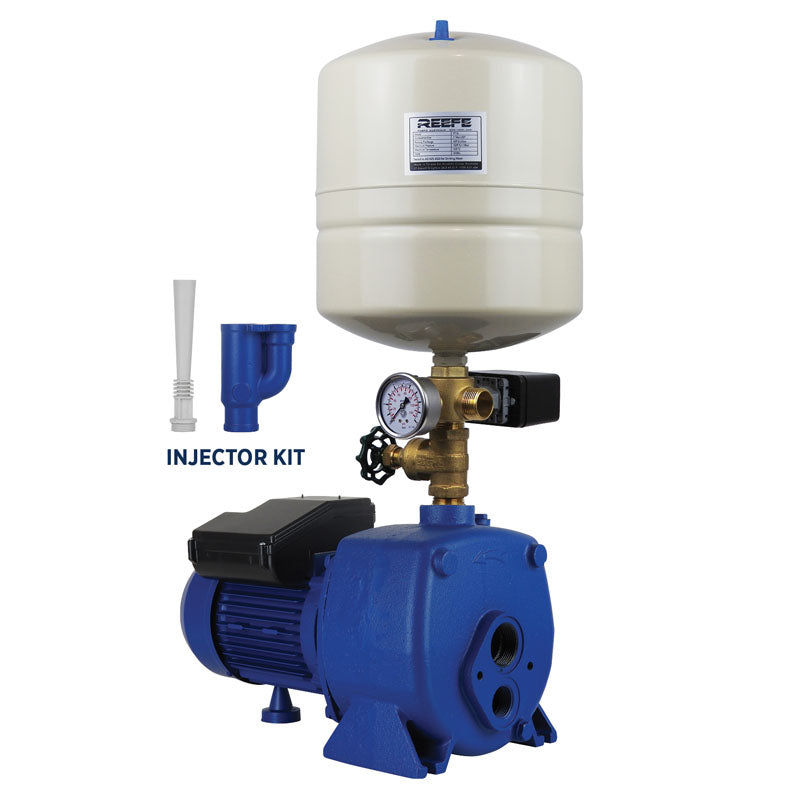

Reefe RDW150E.PTS Deep Well Pressure Pump with Pressure Tank, Switch & Gauge
Made in Europe: The Reefe RDW150E.PTS deep well pump showcases exceptional quality and heavy-duty performance, designed to handle the most demanding water extraction requirements. Engineered in Europe, this self-priming centrifugal pump comes with a robust external injector, making it ideal for household and rural systems. Don’t compromise with cheap alternatives—trust Reefe's durability and a 3-year warranty for your peace of mind.
Specifications:
- Model Number: RDW150E.PTS
- Voltage: 240 volts
- Max Flow Rate: 60 L/min (3600 L/h)
- Maximum Suction Lift: 50 meters
- Pump Rating: 35 meters at 20 L/min, 20 psi
- Horsepower: 1.5 HP (1.1 kW)
- Amp Draw: 7.9 amps
- Injector Type: P20 or P30, depending on well depth
- Inlet/Outlet Size: Inlet - 32 mm, Outlet - 25 mm
- Packaging Size: 41.5 cm x 28 cm x 90.1 cm
- Packaging Weight: 33.1 kg
- Liquid to be Pumped: Clean Water
Features:
- Each pump is supplied with an injector kit.
- Includes pressure tank, switch, gauge, and tee.
- Features thermal overload protection.
- Suitable for liquid temperatures ranging from 0 to 60°C.
Applications:
- Designed for deep wells up to 50 meters.
- Efficient for long suction lines from tank to pump.
- Ideal for drawing water from dams, creeks, and rivers.
- Suitable for irrigation, tank filling, or transferring water.
Construction:
- Anti-corrosive coated, cast iron pump body and injector.
- Aluminium UNI 5076 motor body for enhanced stability.
- Techno-polymer diffusers, nozzle, and Venturi tube.
- Polymer impellers and a stainless steel AISI 304 pump shaft.
- Carbon-ceramic mechanical seal for reliable sealing.
- Features IP44 ingress protection and Insulation Class F.
With its superior engineering and robust construction, the Reefe RDW150E.PTS is the perfect choice for those seeking a reliable, long-lasting solution for their deep well water management needs. Invest in quality with Reefe and ensure your water supply system is as efficient and dependable as possible.
Documents
Have questions when you're installing the pump? Give us a call on 1300 930 847, we're happy to help!
What's in the Box:
- Reefe RDW150EPTS Deep Well Pump
- Injector Kit (P20 or P30)
- Pressure Tank
- Pressure Switch
- Pressure Gauge
- Tee Connector
- Thermal Overload Protection (pre-installed)
Note: Pipework is not provided. Please ensure you have the necessary piping and fittings for installation. Fittings/pipework can be requested.
