Tuhorse 4S1000C 4 Inch Centrifugal Solar Bore Pump 1000W Pump & Controller
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview
The Tuhorse 4S1000C-40 Solar Bore Pump is a pump and MPPT controller package (solar panels not included) built around a 4" 1000W/110V-DC stainless steel centrifugal multi-stage impeller pump with an MPPT auto control box and 40m of fitted power cable. It suits bore depths of 10m to 80m, drawing from bores, rivers, dams, creeks and springs with no mains power, inverter or battery bank required.
Highlights
- Supplied as pump and MPPT control box, ready to pair with solar panels
- 4" 1000W/110V-DC stainless steel submersible solar pump
- Centrifugal multi-stage impeller design for higher flow
- MPPT auto control box with tank and bore level sensing
- Adjustable motor speed and low power protection
- 40m fitted power cable
- Suits bore depths of 10m to 80m
- 1" outlet
- 24 month back-to-base warranty on pump and control box
- Free delivery within Australia
A Complete Off-Grid Water Supply
This is the pump and MPPT control box, supplied ready to pair with a solar array sized to your bore. The control box, power cable and water sensors arrive together, so on site you add your panels, drop the pump and run the poly pipe.
Because it runs directly from the panels, there is no inverter and no battery bank to buy or maintain. Once installed it costs nothing to run.
Flow at Head
Output depends on how far the water has to be lifted. This package delivers 15 L/min at 100m, 25 L/min at 90m, 35 L/min at 80m, 45 L/min at 70m, 50 L/min at 60m, 58 L/min at 50m, 62 L/min at 40m, 68 L/min at 30m, 72 L/min at 20m, 80 L/min at 10m.
Daily figures are based on 6 to 8 hours of peak sun per day in winter and 8 to 10 hours in summer.
| Head | Flow | Gallons per Hour |
|---|---|---|
| 100m | 15 L/min | 200 gal/h |
| 90m | 25 L/min | 333 gal/h |
| 80m | 35 L/min | 467 gal/h |
| 70m | 45 L/min | 600 gal/h |
| 60m | 50 L/min | 666 gal/h |
| 50m | 58 L/min | 773 gal/h |
| 40m | 62 L/min | 827 gal/h |
| 30m | 68 L/min | 906 gal/h |
| 20m | 72 L/min | 960 gal/h |
| 10m | 80 L/min | 1067 gal/h |
MPPT Auto Control Box
The control box runs maximum power point tracking, so it keeps pulling the best available power out of the panels as light conditions change through the day.
It takes two water sensors, one for the bore and one for the tank, so the pump stops on low bore water and again when the tank is full. Motor speed is adjustable and low power protection is built in. Input voltage is accepted up to 200V/DC.
Specifications
| Specification | Details |
|---|---|
| Model Number | 4S1000C-40 |
| Supplier Code | SSP020 |
| Product Type | Submersible Solar Bore Pump and Controller |
| Pump Diameter | 4" |
| Pump Power | 1000W/110V-DC |
| Pump Type | Centrifugal Multi-Stage Impeller |
| Pump Material | Stainless Steel |
| Outlet | 1" |
| Power Cable | 40m fitted |
| Solar Panels | Not included |
| Control Box | MPPT Auto Control Box |
| Maximum Input Voltage | 200V/DC |
| Warranty | 24 Months Back-to-Base (Sydney), Pump and Control Box |
| Manufacturer | Tuhorse |
Applications
- Bore water pumping
- Stock and livestock watering
- Rural and remote properties
- Off-grid water supply
- Pumping from rivers
- Pumping from dams
- Pumping from creeks and springs
- Water transfer between tanks or sites
- Irrigation supply
- Properties without mains power
Installation Information
The package is designed to be plug and go, but a few items are deliberately not included so they can be matched to your site.
- A stainless steel safety cable is required to hold the pump in the bore.
- If pumping from a dam or river, a float set-up is required instead.
- Panel frames and mounting posts are needed to support the solar panels.
- Poly pipe from the pump to the tank is not supplied.
- Do not submerge the pump deeper than 30m.
- The bore sensor and tank sensor must both be positioned before commissioning.
- Electrical work should be carried out by a licensed electrician where required.
- Confirm your bore depth and daily water requirement against the flow table above before ordering.

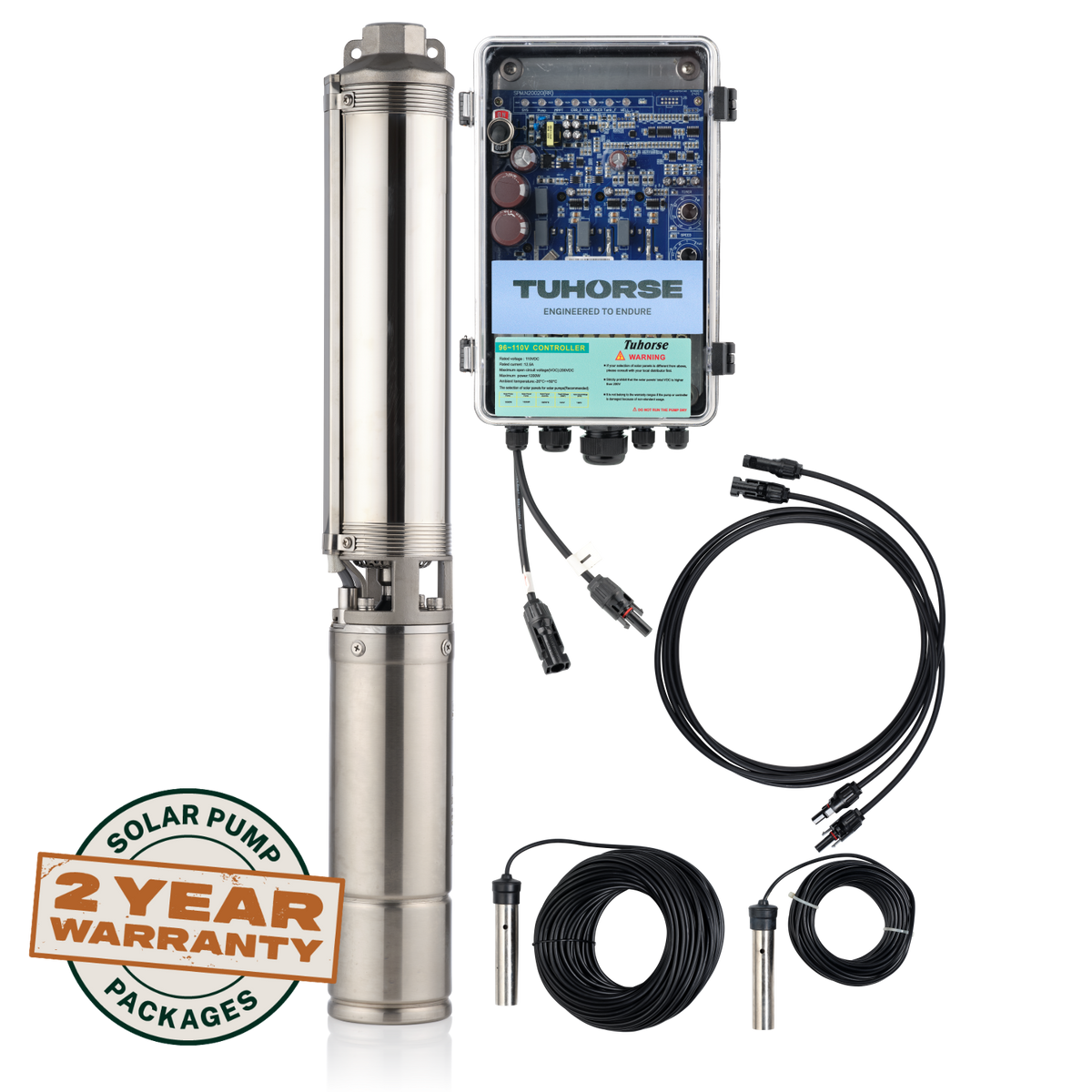

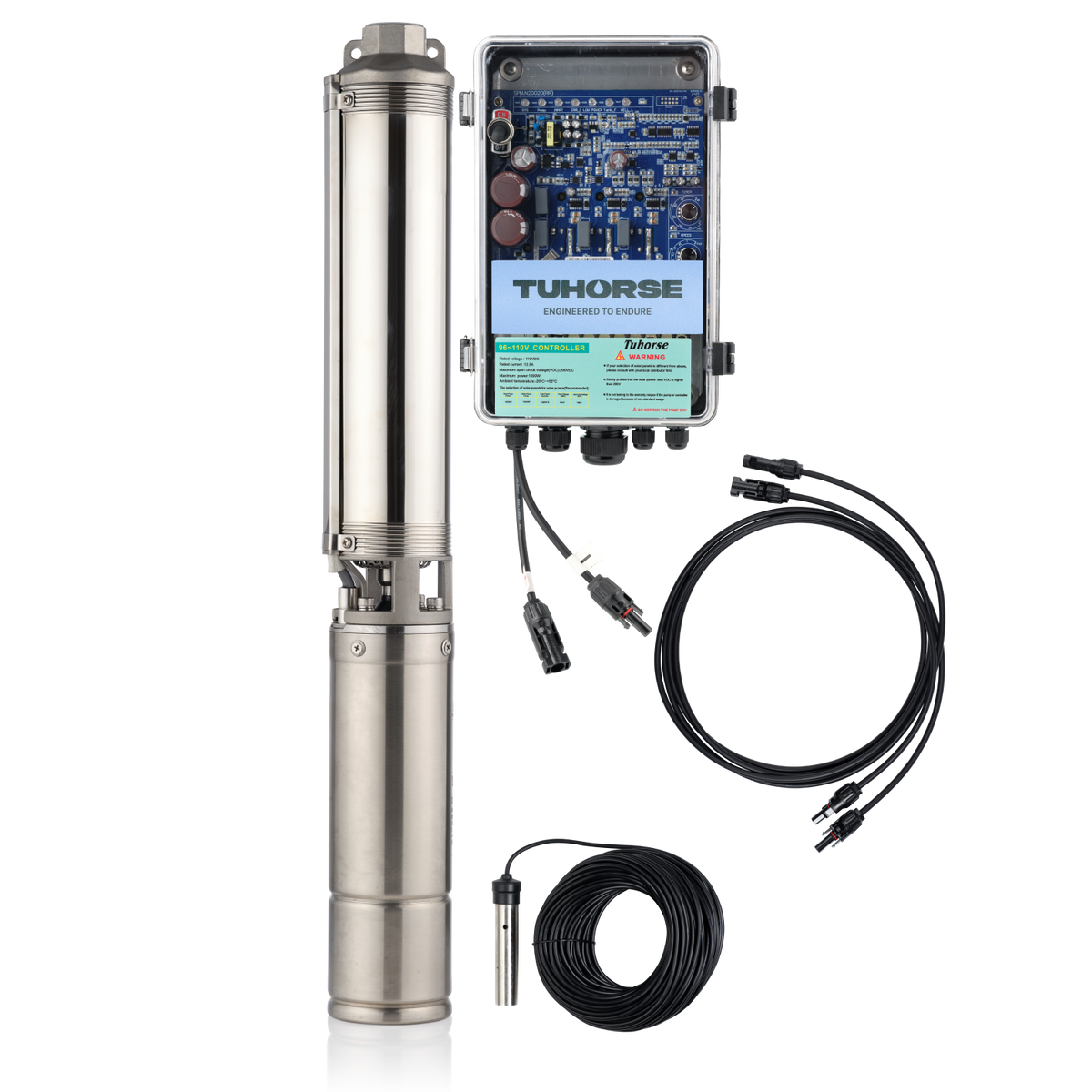

What's Included
- 4"1000W Centrifugal solar bore pump with A08 wet end and auto control box and 40m power cable
- 2 x 10M water sensors (for bore and water tank)
- 2 x 2M MC4 extension cable for connect solar panels to control box
- User manual
- 24 months back to base
Not included: stainless steel safety cable, solar panel frames and posts, and poly pipe from the pump to the tank.
