Tuhorse 4S1000C 4 Inch Centrifugal Solar Bore Pump Package 1000W + 800W Panels
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview
The Tuhorse 4S1000C-40/800 Solar Bore Pump Package is a complete off-grid pumping kit built around a 4" 1000W/110V-DC stainless steel centrifugal multi-stage impeller pump with 4 x 200W monocrystalline solar panels, an MPPT auto control box and 40m of fitted power cable. It suits bore depths of 10m to 40m, drawing from bores, rivers, dams, creeks and springs with no mains power, inverter or battery bank required.
Highlights
- Complete package: pump, 4 x 200W panels, control box, cable and sensors
- 4" 1000W/110V-DC stainless steel submersible solar pump
- 800W of monocrystalline A-grade solar panels included
- Centrifugal multi-stage impeller design for higher flow
- MPPT auto control box with tank and bore level sensing
- Adjustable motor speed and low power protection
- 40m fitted power cable
- Suits bore depths of 10m to 40m
- 1.25" outlet
- 24 month back-to-base warranty on pump and control box
- Free delivery within Australia
A Complete Off-Grid Water Supply
This is a full package rather than a bare pump. The panels, control box, power cable and water sensors all arrive together, so the only site work is mounting the panels, dropping the pump and running the poly pipe.
Because it runs directly from the panels, there is no inverter and no battery bank to buy or maintain. Once installed it costs nothing to run.
MPPT Auto Control Box
The control box runs maximum power point tracking, so it keeps pulling the best available power out of the panels as light conditions change through the day.
It takes two water sensors, one for the bore and one for the tank, so the pump stops on low bore water and again when the tank is full. Motor speed is adjustable and low power protection is built in. Input voltage is accepted up to 200V/DC.
Specifications
| Specification | Details |
|---|---|
| Model Number | 4S1000C-40/800 |
| Supplier Code | SSP021 |
| Product Type | Submersible Solar Bore Pump Package |
| Pump Diameter | 4" |
| Pump Power | 1000W/110V-DC |
| Pump Type | Centrifugal Multi-Stage Impeller |
| Pump Material | Stainless Steel |
| Outlet | 1.25" |
| Maximum Head | 100M |
| Maximum Flow | 5000L/hr (rated in 110V/DC) |
| Pump Dimensions | 100mm x 650mm |
| Pump Weight | 18kg |
| Maximum Submerge Depth | < 30m |
| Power Cable | 40m fitted |
| Solar Panels | 4 x 200W Monocrystalline A-Grade (800W total) |
| Control Box | MPPT Auto Control Box |
| Maximum Input Voltage | 200V/DC |
| Warranty | 24 Months Back-to-Base (Sydney), Pump and Control Box |
| Manufacturer | Tuhorse |
Applications
- Bore water pumping
- Stock and livestock watering
- Rural and remote properties
- Off-grid water supply
- Pumping from rivers
- Pumping from dams
- Pumping from creeks and springs
- Water transfer between tanks or sites
- Irrigation supply
- Properties without mains power
Installation Information
The package is designed to be plug and go, but a few items are deliberately not included so they can be matched to your site.
- A stainless steel safety cable is required to hold the pump in the bore.
- If pumping from a dam or river, a float set-up is required instead.
- Panel frames and mounting posts are needed to support the solar panels.
- Poly pipe from the pump to the tank is not supplied.
- Do not submerge the pump deeper than 30m.
- The bore sensor and tank sensor must both be positioned before commissioning.
- Electrical work should be carried out by a licensed electrician where required.
- Confirm your bore depth and daily water requirement against the flow table above before ordering.

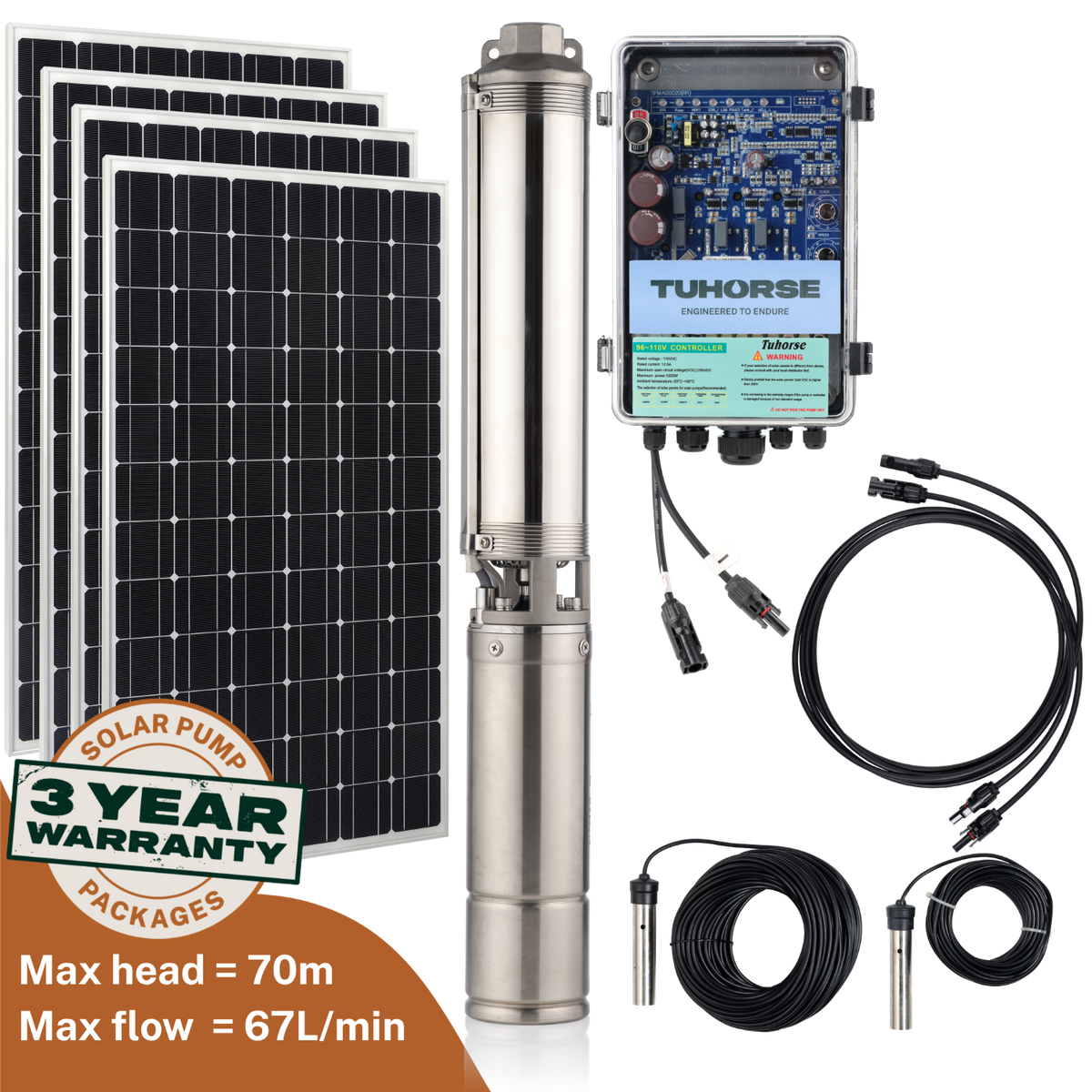

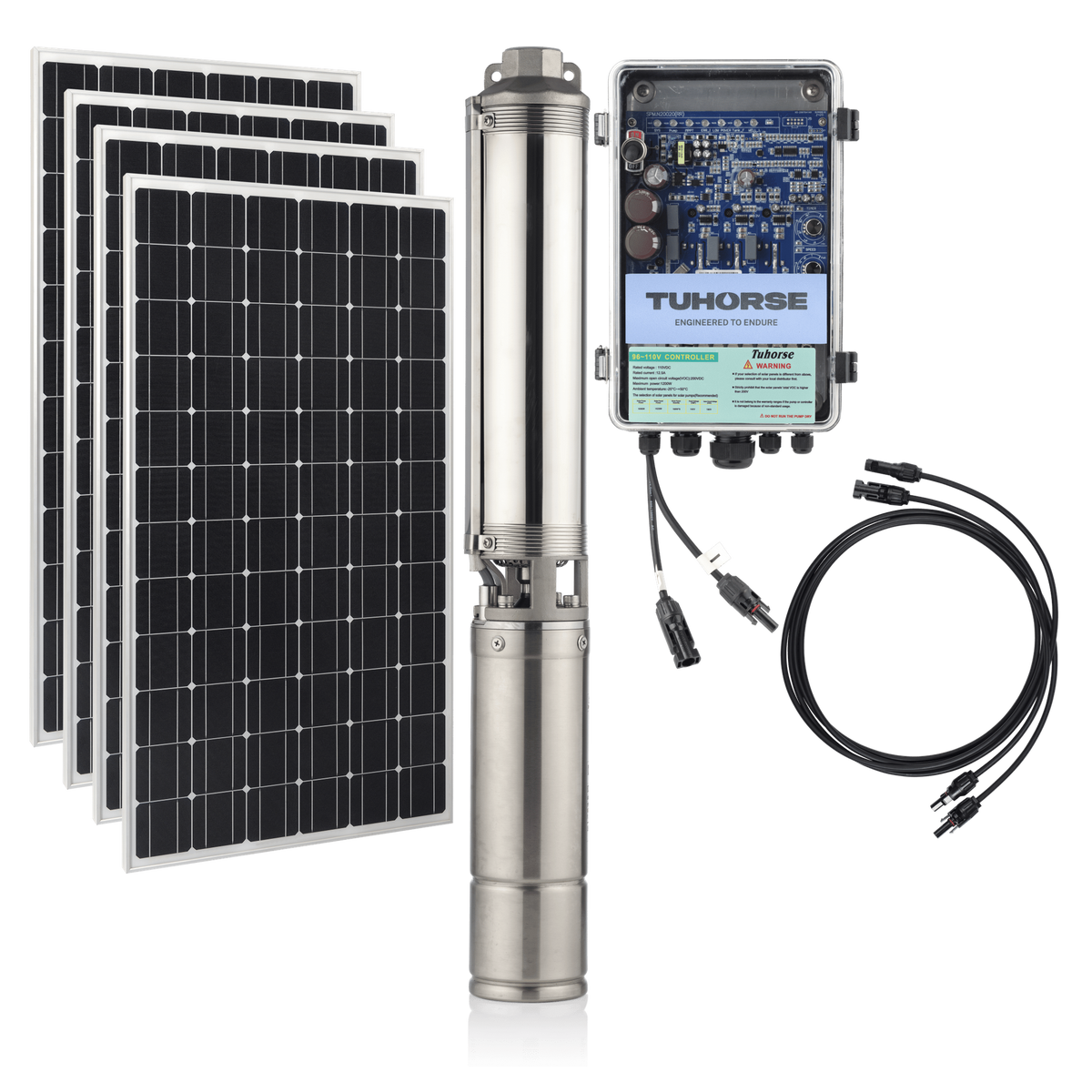

What's Included
- 4 x200W mono crystalline A grade solar panels
- 4" 1000W/110V Centrifugal Multi stage impellers Solar Pump A08 with 40M 4mm x 3 fitted power cable
- Auto control box
- 2 x 2M with MC4 extension cable for connect solar panels to control box
- 1 x 40M & 1 x 10M water sensors ( for bore and water tank)
- User manual
- 24 months (Pump&Control Box) back to base (Sydney)
Not included: stainless steel safety cable, solar panel frames and posts, and poly pipe from the pump to the tank.
