Tuhorse Solar Pool Pump 600W + 800W Panels
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview

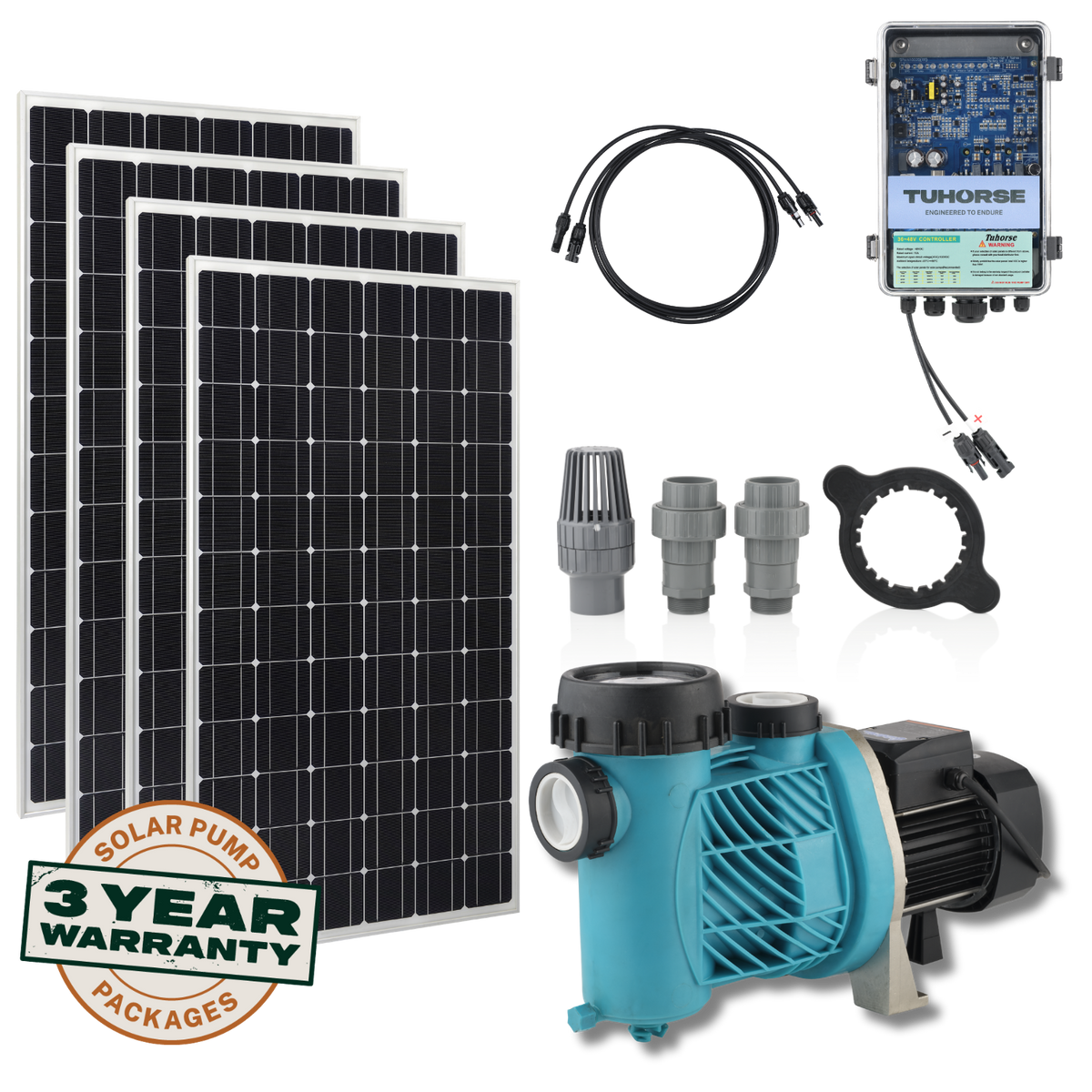

The Tuhorse 600W Solar Pool Pump circulates residential and commercial swimming pools straight from solar, with a DC brushless motor and a built-in controller that lets the panels drive the pump directly. It runs fully off grid with no electricity bill, and can also feed high-flow, low-head irrigation. It comes with 4 x 200W monocrystalline solar panels, the control box, cable and sensors.
Highlights
- Complete package with 4 x 200W solar panels
- Pump power: 600W
- Maximum head: 14m
- Maximum flow: 15000LPH
- Maximum suction: 3m
- Inlet and outlet: 2"/40mm
- MPPT auto control box with level sensing and low power protection
- Runs on solar, or optionally on battery or generator input
- 24 month back-to-base warranty
- Free delivery within Australia
MPPT Auto Control Box
The control box runs maximum power point tracking, pulling the best available power from the panels as light changes through the day. Motor speed is adjustable, low power protection is built in, and it accepts water sensors for level control.
Specifications
| Specification | Details |
|---|---|
| Model Number | THSP15-14-48/600 |
| Supplier Code | SSP030 |
| Product Type | Solar Pool Pump Package |
| Pump Power | 600W |
| Maximum Head | 14m |
| Maximum Flow | 15000LPH |
| Maximum Suction | 3m |
| Inlet / Outlet | 2"/40mm |
| Solar Panels | 4 x 200W Monocrystalline (800W) |
| Control Box | MPPT Auto Control Box |
| Warranty | 24 Months Back-to-Base (Sydney) |
| Manufacturer | Tuhorse |
Applications
- Swimming pool circulation
- Residential and commercial pools
- Off-grid pool filtration
- High-flow low-head irrigation
- Water feature circulation

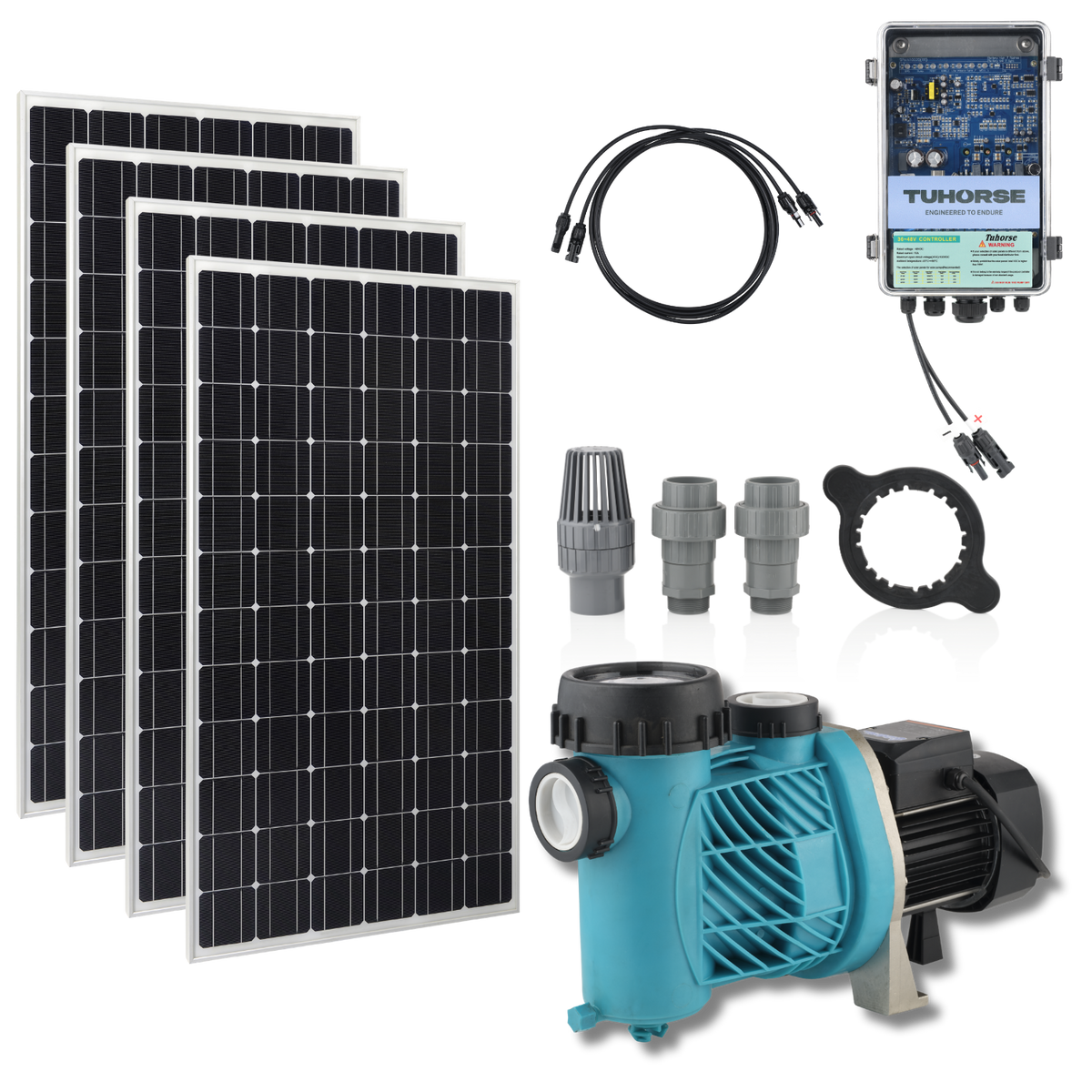

What's Included
- 1 x Pool Pump
- 4 x 200w Mono Crystallise A grade solar panels
Downloads
Need Assistance or Ready to Order?
Our expert team is here to help you select the right setup and answer any questions. Contact us at sales@waternex.com.au or give us a call at 1300 930 847 for advice and support.
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
