Tuhorse Solar Surface Jet Pump 210W + 400W Panels
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview
The Tuhorse 210W Solar Surface Jet Pump is a solar pressure pump for drawing water from shallow bores, tanks, dams and rivers and lifting it to a tank or through a pressure line. It runs directly from solar with an MPPT auto control box and needs no inverter or battery bank. It comes with 2 x 200W monocrystalline solar panels, the control box, cable and sensors.
Highlights
- Complete package with 2 x 200W solar panels
- Pump power: 210W/36V-DC
- Maximum head: 37m
- Maximum flow: 35L/min
- Inlet and outlet: 1"/25mm
- MPPT auto control box with level sensing and low power protection
- Runs on solar, or optionally on battery or generator input
- 24 month back-to-base warranty
- Free delivery within Australia
MPPT Auto Control Box
The control box runs maximum power point tracking, pulling the best available power from the panels as light changes through the day. Motor speed is adjustable, low power protection is built in, and it accepts water sensors for level control.
Specifications
| Specification | Details |
|---|---|
| Model Number | SSP032 |
| Supplier Code | SSP032 |
| Product Type | Solar Surface Jet Pump Package |
| Pump Power | 210W/36V-DC |
| Maximum Head | 37m |
| Maximum Flow | 35L/min |
| Inlet / Outlet | 1"/25mm |
| Dimensions | 27 x 12 16 cm |
| Solar Panels | 2 x 200W Monocrystalline (400W) |
| Control Box | MPPT Auto Control Box |
| Warranty | 24 Months Back-to-Base (Sydney) |
| Manufacturer | Tuhorse |
Applications
- Pressure and tank supply
- Pumping from shallow bores
- Pumping from rainwater tanks
- Pumping from dams and rivers
- House and shed water pressure
- Irrigation supply

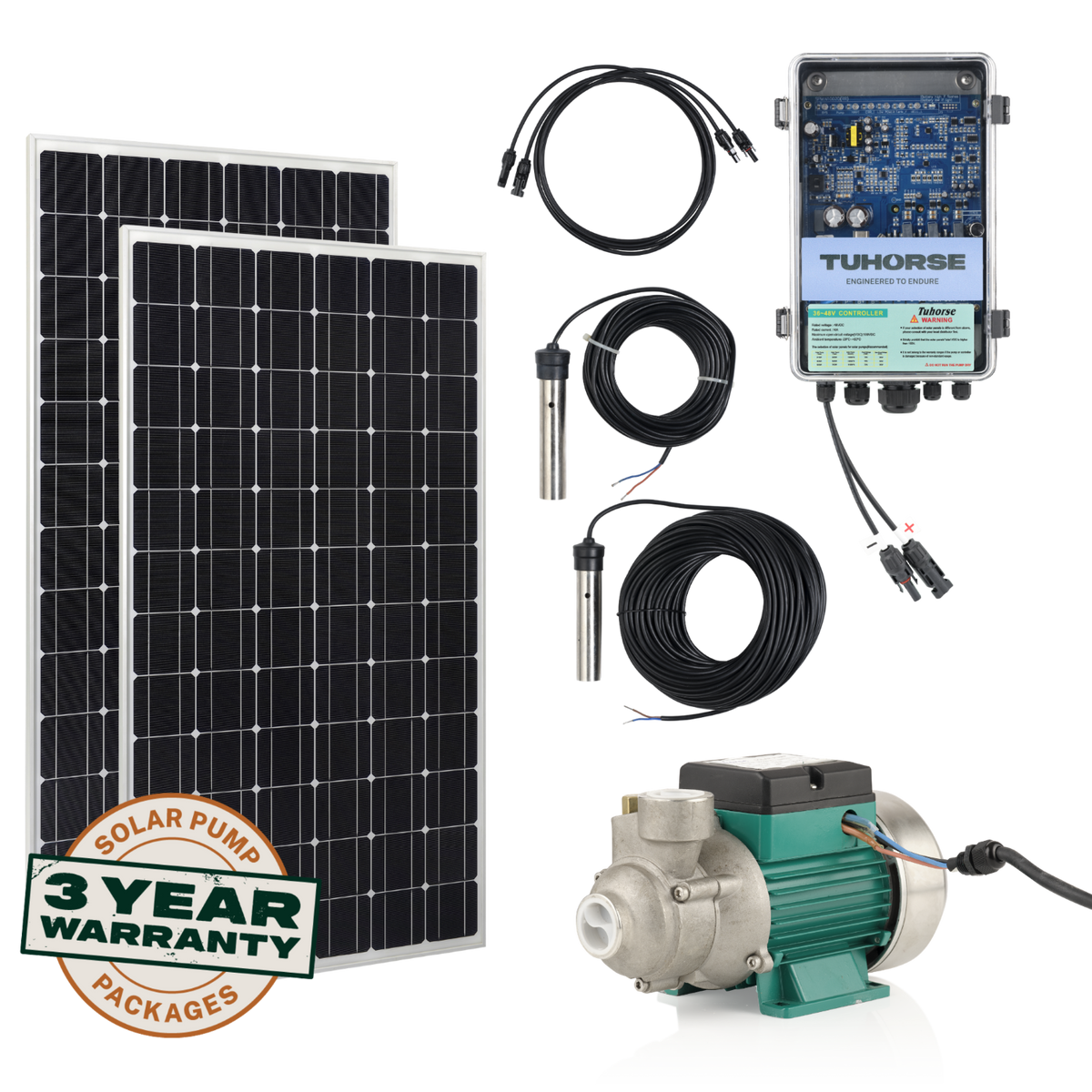

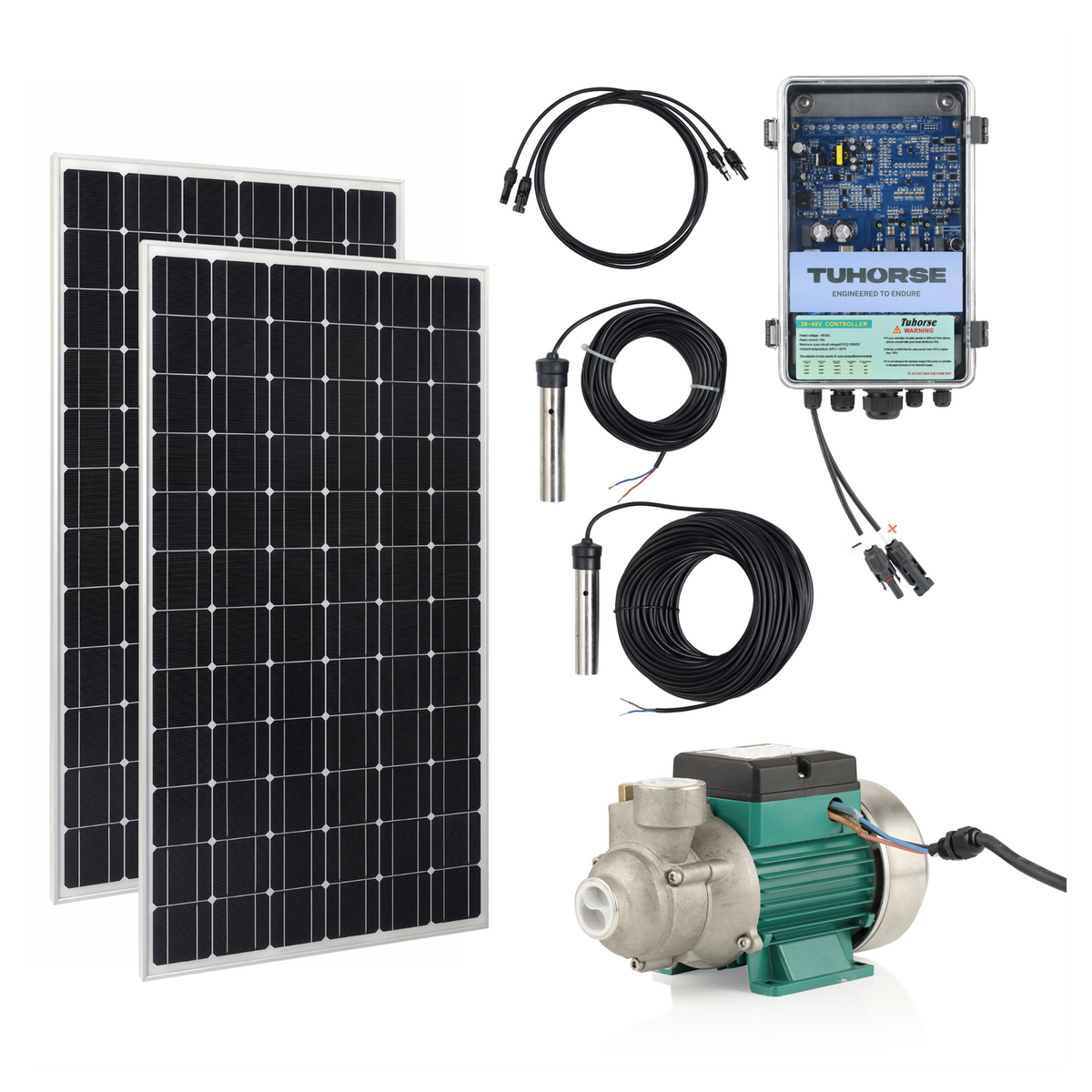

What's Included
- 1 x 210W Solar Jet Pump with 3m power cable
- 2 x 200W Solar Panels
- 1 x Auto Control Box with 2 water sensors
- 2 x 1.5m MC4 extension Cable
- 24 months (Pump&Control Box) back to base
