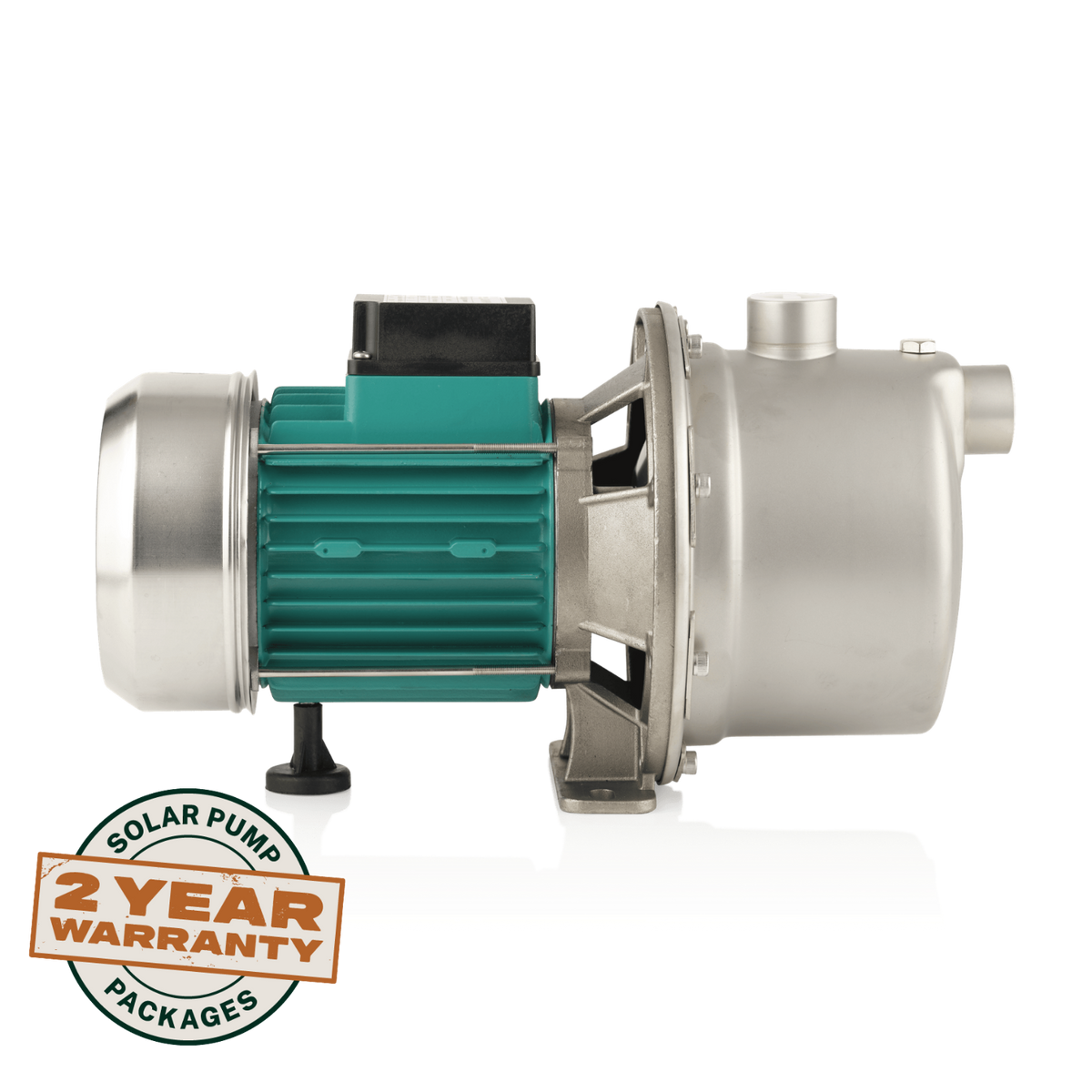

Tuhorse Solar Surface Jet Pump 500W (Pump & Controller)
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Overview
The Tuhorse 500W Solar Surface Jet Pump is a solar pressure pump for drawing water from shallow bores, tanks, dams and rivers and lifting it to a tank or through a pressure line. It runs directly from solar with an MPPT auto control box and needs no inverter or battery bank. It is supplied as the pump and control box, ready to pair with your solar panels.
Highlights
- Supplied as pump and control box, ready to pair with solar panels
- Pump power: 500W/48V DC
- Maximum head: 35m
- Maximum flow: 3200L/h
- Maximum suction: 8m
- Inlet and outlet: 1"/25mm
- MPPT auto control box with level sensing and low power protection
- Runs on solar, or optionally on battery or generator input
- 24 month back-to-base warranty
- Free delivery within Australia
Flow at Head
Flow depends on the head it is pumping against: 15 L/min at 25m, 26 L/min at 20m, 40 L/min at 14m, 47 L/min at 10m, 50 L/min at 5m.
| Head | Flow |
|---|---|
| 25m | 15 L/min |
| 20m | 26 L/min |
| 14m | 40 L/min |
| 10m | 47 L/min |
| 5m | 50 L/min |
MPPT Auto Control Box
The control box runs maximum power point tracking, pulling the best available power from the panels as light changes through the day. Motor speed is adjustable, low power protection is built in, and it accepts water sensors for level control.
Specifications
| Specification | Details |
|---|---|
| Model Number | SSP033 |
| Supplier Code | SSP033 |
| Product Type | Solar Surface Jet Pump and Controller |
| Pump Power | 500W/48V DC |
| Pump Type | Impellers |
| Maximum Head | 35m |
| Maximum Flow | 3200L/h |
| Maximum Suction | 8m |
| Inlet / Outlet | 1"/25mm |
| Solar Panels | Not included |
| Control Box | MPPT Auto Control Box |
| Warranty | 24 Months Back-to-Base (Sydney) |
| Manufacturer | Tuhorse |
Applications
- Pressure and tank supply
- Pumping from shallow bores
- Pumping from rainwater tanks
- Pumping from dams and rivers
- House and shed water pressure
- Irrigation supply
What's Included
- 1 x Solar pressure pump (THSGJ 3.2-35-48) with 3m power cable
- 1 x Auto control box
- 2 x 1.5m MC4 extension cable
Not included: solar panels and mounting frames, supplied separately so the array can be matched to your site.
