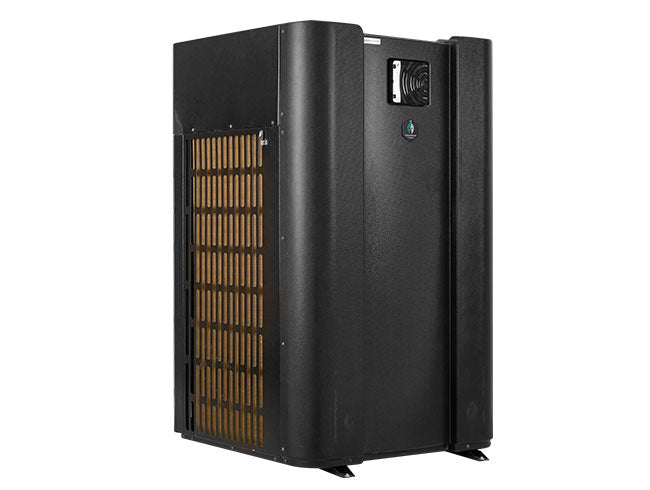

Guardian Lux-V 13kW Pool Heat Pump – Top Discharge, Full DC Inverter
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
Expect luxury and innovation with the Guardian Lux-V Series. Built with the latest full DC inverter technology and designed for cold-climate performance, the Lux-V 13kW delivers reliable heating and cooling all year round — even when outside temperatures drop to –15°C.
With vertical air discharge for efficient airflow and compact installation, plus a stylish ABS front panel and galvanized steel back, the Lux-V is as durable as it is powerful. Backed by an industry-leading warranty and local Australian service, this unit is the premium choice for smaller to mid-sized pools and spas.
Why Choose the Lux-V?
-
C.O.P. up to 14.5 — exceptional efficiency with lower running costs
-
Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service
-
Cold Climate Ready — reliable operation down to –15°C with automatic fast defrosting
-
DC Full Inverter Technology — advanced compressor, fans, and control system for consistent performance
-
Heating & Cooling Function — use your pool year-round in any season
-
Smart Controls — Wi-Fi connectivity, 4 operating modes, and intelligent LCD touchscreen with 0.1°C precision
-

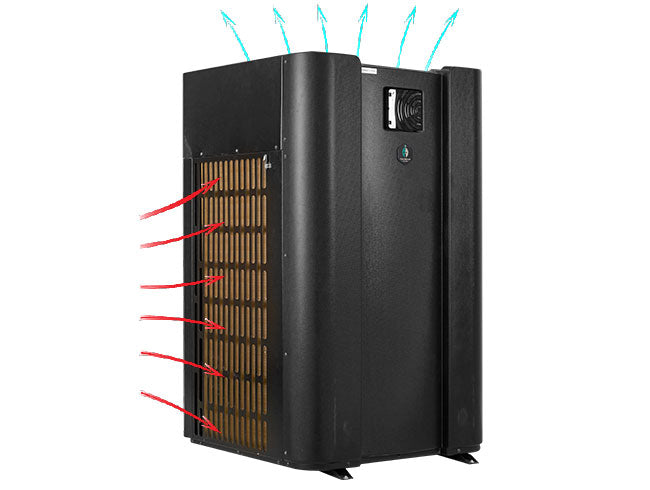

Vertical Air Discharge — space-saving design with efficient airflow
-
Durable Construction — ABS front panel with galvanized steel back for long outdoor life
-
Quiet Operation — powerful performance without disruptive noise
-
Eco-Friendly R32 Refrigerant — reduced environmental footprint
Smart Wi-Fi Control – Heat Your Pool From Anywhere
Get a FREE Custom Pool Heating Quote in Minutes!
Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.
Get Your FREE Custom Quote Now!
Enjoy a warm, inviting pool without any hassle or cost to get started!
Technical Specifications — Lux-V 13kW (GLV-13)
Performance (Air 27°C / Water 26°C / Humidity 80%)
-
Heating Capacity: ~13.0 kW
-
C.O.P.: up to 14.5
Performance (Air 15°C / Water 26°C / Humidity 70%)
-
Heating Capacity: ~9.5–10 kW (typical for size)
-
C.O.P.: ~7.0–4.7
Construction & Components
-
Operating Air Temperature: –15°C to 43°C
-
Compressor: Mitsubishi Rotary/Inverter or Panasonic Rotary/Inverter
-
Heat Exchanger: Titanium
-
Casing: ABS front panel + galvanized steel back panel
-
Power Supply: 220–240V~/1Ph/50Hz
-
Electrical Connection: 15A plug/hardwired (model dependent)
-
Rated Input Power: ~0.25–2.2 kW
-
Max Rated Input Power: ~3.2 kW
-
Sound Pressure (1m): 42–54 dB(A)
-
Water Connection: 40 mm
-
Net Weight: ~70 kg
-
Unit Size: approx. 1150 × 500 × 950 mm (vertical design)
What’s Included
-
1 × Guardian Lux-V 13kW Heat Pump (GLV-13)
-
1 × Intelligent LCD Touch Controller
-
1 × User Manual & Quick Start Guide
-
1 × Warranty Information Pack
Applications
-
Small to medium residential pools
-
Swim spas and plunge pools
-
Year-round heating and cooling, even in cold climates down to –15°C
