Kwikflo Dual Sewer Pump Station 900L 1200L 2000L - Cutter & Grinder
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview

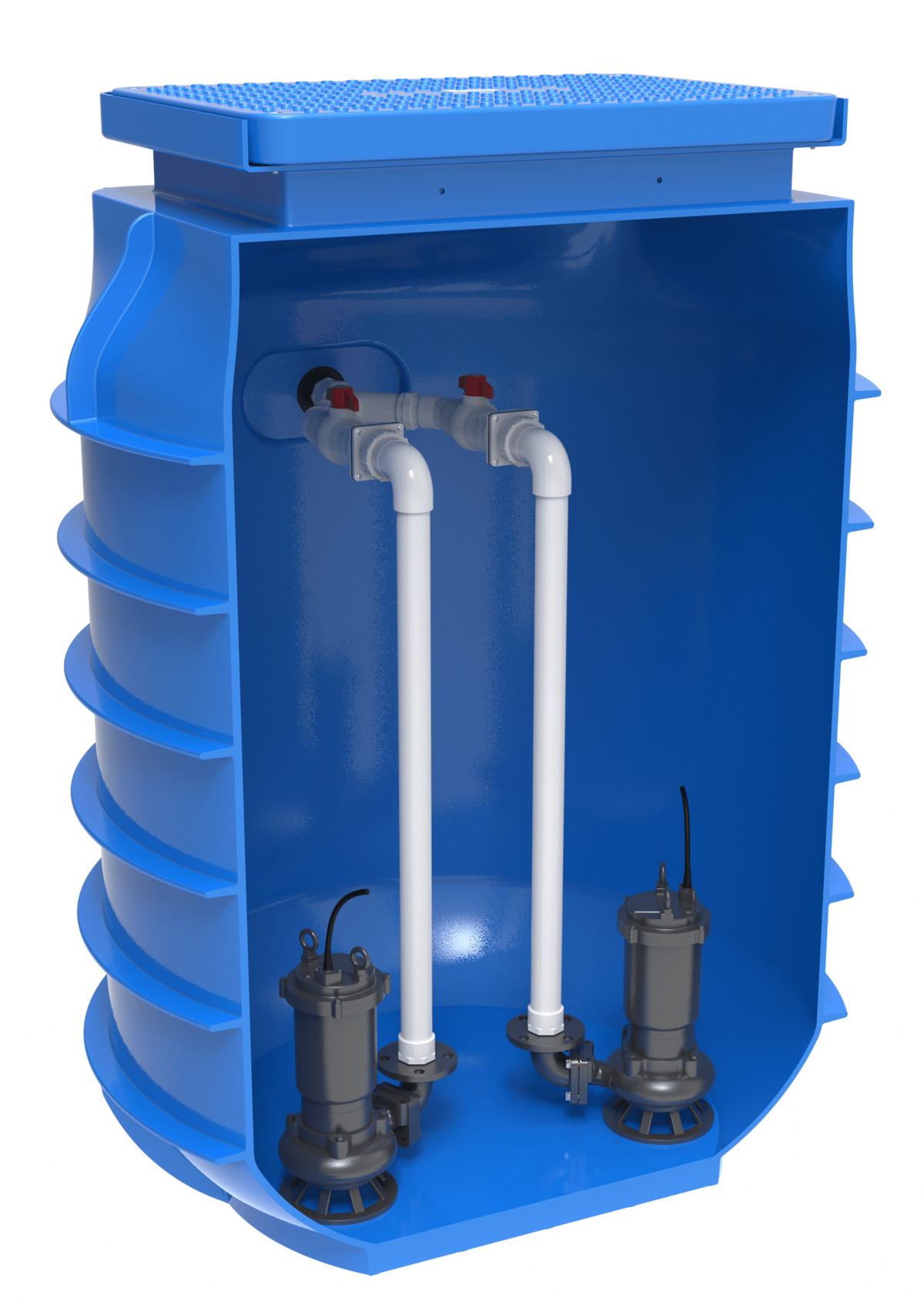

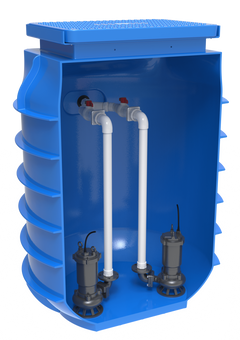

The Kwikflo Dual 900L, 1200L & 2000L Pump Station is a pre-assembled packaged pump station supplied with two pumps, in-tank valves and pipework, a control panel and float set, and a poly lid. Built to lift sewage, blackwater and trade waste from below the sewer line, it arrives ready to drop in — the site work is connecting the inlet, the discharge and the power.
Highlights
- Pre-assembled packaged pump station, 900L, 1200L & 2000L polyethylene tank
- Two pumps in duty/standby with control panel and floats
- Cutter and grinder pumps for sewage, blackwater and trade waste
- Ball valve, non-return valve, barrel unions and PVC pipework pre-fitted
- Poly lid included, with Class B and Class D cover options available
- Freestanding — no mounting kit or concrete base required
- Handles raw sewage, tradewaste, effluent and stormwater
- 600mm x 600mm access opening
- Risers available for deeper installations
Why Dual Pumps
A dual station runs two pumps in a duty/standby arrangement through a control panel. If one pump fails or the inflow spikes, the second takes over — so the station keeps running instead of backing up. That redundancy is why dual stations are specified for apartment blocks, commercial buildings, civil works and any site where an overflow is unacceptable.
Pre-Assembled to Cut Site Time
The internal components are fitted before the station leaves the factory: ball valves, non-return valves, barrel unions and the PVC interconnecting pipework, plus the control panel and float set on dual units.
The inlet penetration is not pre-drilled — it's cut by the plumber to suit the incoming invert on site. A moulded BSP outlet is provided.
Choosing the Pump
Strainer / drainage pumps (AL series) suit stormwater, greywater and drainage where the water carries no sewage solids.
Cutter pumps (ALC series) shred solids at the intake, so they handle blackwater — anything with a toilet in the run.
Grinder pumps (ALG series) go a step further, grinding waste to a fine slurry for long pump runs and higher heads.
Specifying a drainage pump on a sewage duty is the most common and most expensive mistake on these systems — it will block.
Model Comparison
| Model | Tank | Pump | Type | Power | Approx. Weight |
|---|---|---|---|---|---|
| 900L - ALC750 Cutter, 240V | 900L | ALC750-1 | Cutter | 0.75kW 240V | 115kg* |
| 900L - ALG1500 Grinder, 415V | 900L | ALG1500 | Grinder | 1.5kW 415V | 135kg* |
| 1200L - ALG1500 Grinder, 415V | 1200L | ALG1500 | Grinder | 1.5kW 415V | 152kg* |
| 2000L - ALG1500 Grinder, 415V | 2000L | ALG1500 | Grinder | 1.5kW 415V | 180kg* |
*Weights are calculated from published tank and pump figures where available and are estimates for planning only — confirm against Aline's technical data before arranging freight.
Construction
- Polyethylene holding tank
- Freestanding configuration
- Poly lid
- 600mm x 600mm access opening
- Moulded BSP outlet
- Inlet penetration cut on site by the plumber
- Ball and non-return valves
- Barrel unions
- PVC interconnecting pipework
- Control panel with float set
Liquids Handled
- Raw sewage
- Tradewaste
- Effluent
- Stormwater
Applications
- Apartment and unit blocks
- Commercial buildings
- Civil and industrial developments
- Sites where an overflow is unacceptable
- Basement pump-away
- Below-sewer drainage
- Stormwater transfer
- Tradewaste and effluent handling
Installation Information
The station is freestanding and does not require a base or mounting kit. Pumps are boxed separately for transit and fitted on site.
- The inlet penetration is not pre-drilled and must be cut to suit the incoming invert.
- Pumps and floats must be accessible from the tank entry point. Notify Aline before booking if confined space entry is required, as additional charges apply.
- Have the site assessed by a qualified professional for hydrostatic pressure risk prior to installation.
- Electrical connection must be carried out by a licensed electrician.
- 415V models require three-phase supply — confirm site power before ordering.
- Select a load-rated cover where the station sits under a trafficable area.
- Confirm the duty point against the pump curve for the head and flow at your site.
What's Included
- 1 x 900L, 1200L & 2000L Polyethylene Pump Station Tank (freestanding)
- 2 x Submersible Pump (model per variant selected)
- 1 x Poly Lid
- 1 x Set of Ball and Non-Return Valves
- 1 x Set of Barrel Unions
- 1 x PVC Interconnecting Pipework
- 1 x Control Panel
- 1 x Float Set
Inlet and discharge pipework beyond the tank, load-rated covers and risers are supplied separately.
Important Notes
- It is recommended that the site be assessed by a qualified professional to identify and mitigate any risks related to hydrostatic pressure prior to installation.
- Pump sizing and configuration should be selected based on the application requirements and site conditions.
- Please note: Waternex is not responsible for incorrect pump or pump station sizing without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense.
Need Assistance or Ready to Order?
Our expert team is here to help you select the perfect setup and answer any questions. Contact us at sales@waternex.com.au or give us a call at 1300 930 847 for personalized advice and support.
Pump Station Range
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
Do you offer trade pricing or project quantities?
We do. Trade accounts receive standing discount and priority dispatch. For developments and multi-unit sites we quote the whole schedule and stage deliveries to match your program. Apply for trade pricing or call 1300 930 847.
Working on a project?
Send us the schedule and we will price the lot - staged delivery to match your program, trade terms, and engineering sign-off if you need it.
