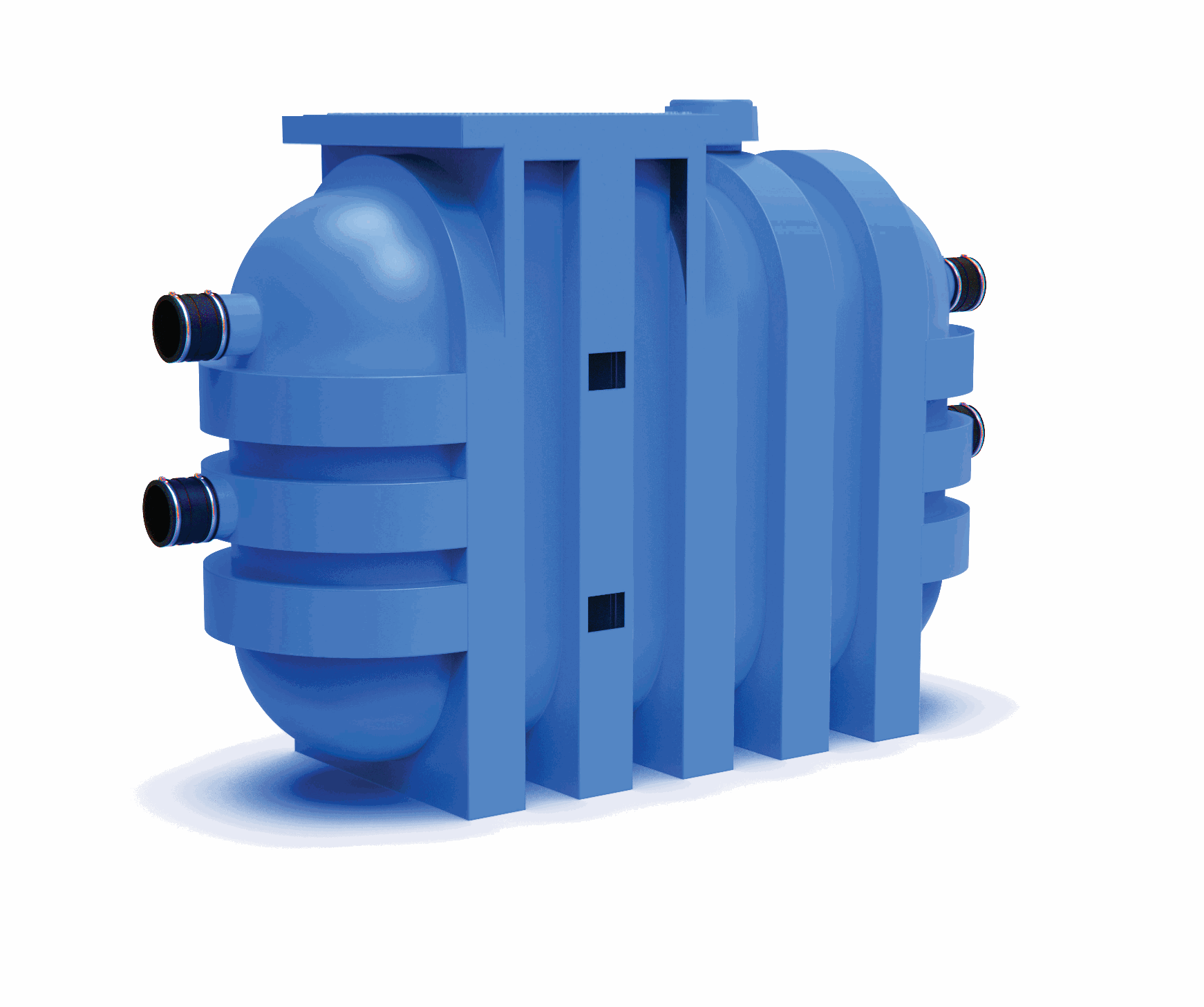

The Kwikflo KGT1000 Grease Arrestor is a 1000L polyethylene grease trap built to remove fats, oils, grease and suspended solids from commercial kitchen wastewater before it reaches the sewer. It suits above ground and below ground installation, making it a practical fit for cafés, restaurants, canteens, hospitals, bars and hotels that need a certified pre-treatment stage. Manufactured by Aline Pumps, the Kwikflo range is an approved listed pre-treatment product for food businesses.

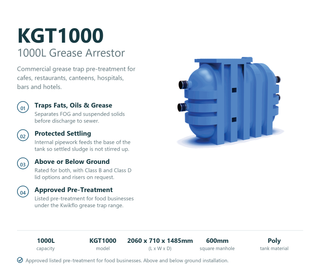

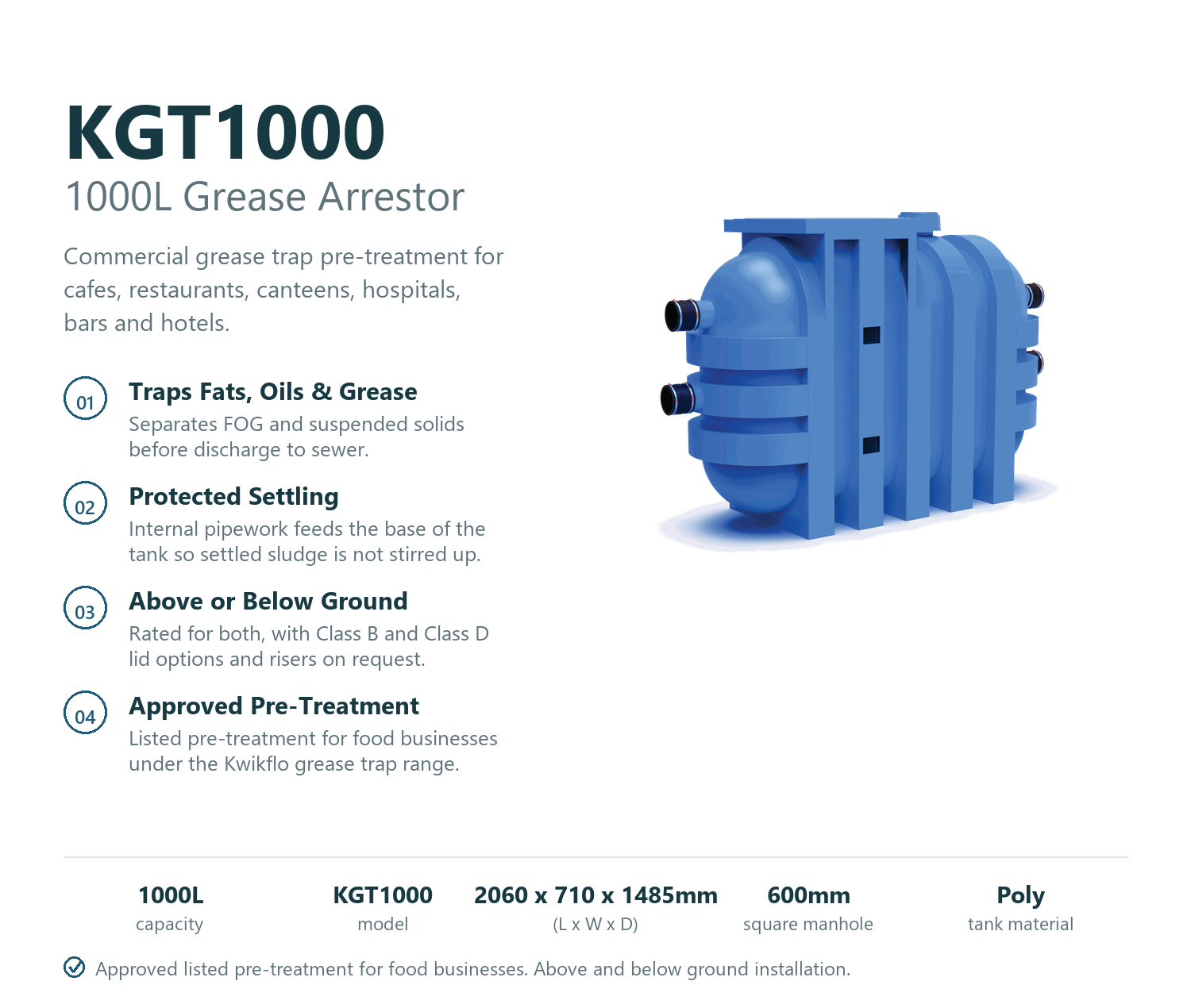

Highlights
- Removes fats, oils, grease and suspended solids from trade waste
- 1000L polyethylene tank, model KGT1000
- Suitable for both above ground and below ground installation
- Approved listed pre-treatment for food businesses
- Internal pipework directs flow to the base of the tank to avoid re-suspending settled sludge
- 600mm square manhole for access and servicing
- Wide range of lid options from Class B through to Class D load ratings
- Risers available on request for deeper below-ground installs
- Handles raw sewage, trade waste, effluent and stormwater
- Compact 2060mm x 710mm footprint
- Part of the Kwikflo range spanning 1000L to 5000L, with custom fibreglass sizes available
- Can be configured in dual inline or dual parallel arrangements for higher flows
Proven Grease Separation for Commercial Kitchens
Commercial kitchens push a constant load of fats, oils and grease into their drainage. Left untreated, that material cools and hardens in the sewer line, which is why water authorities require food businesses to install a grease arrestor as a pre-treatment stage.
The KGT1000 gives cafés, restaurants and institutional kitchens a 1000L holding volume where that separation happens under gravity, before the wastewater is discharged to sewer.
Internal Pipework That Protects the Settled Layers
Contaminated water arrives through the inlet pipe and is directed by the internal pipework down to the base of the tank.
Feeding the flow low into the tank avoids stirring up sludge and grease that has already separated. Without this, incoming water would mix the tank contents and carry separated material back toward the outlet.
Inside the tank, the wastewater slows and separates into three layers. Sludge and heavier solids settle into the base of the unit, grease is trapped and floats to the surface, and the treated liquid in the middle is discharged from the grease arrestor to sewer.
Above Ground or Below Ground Installation

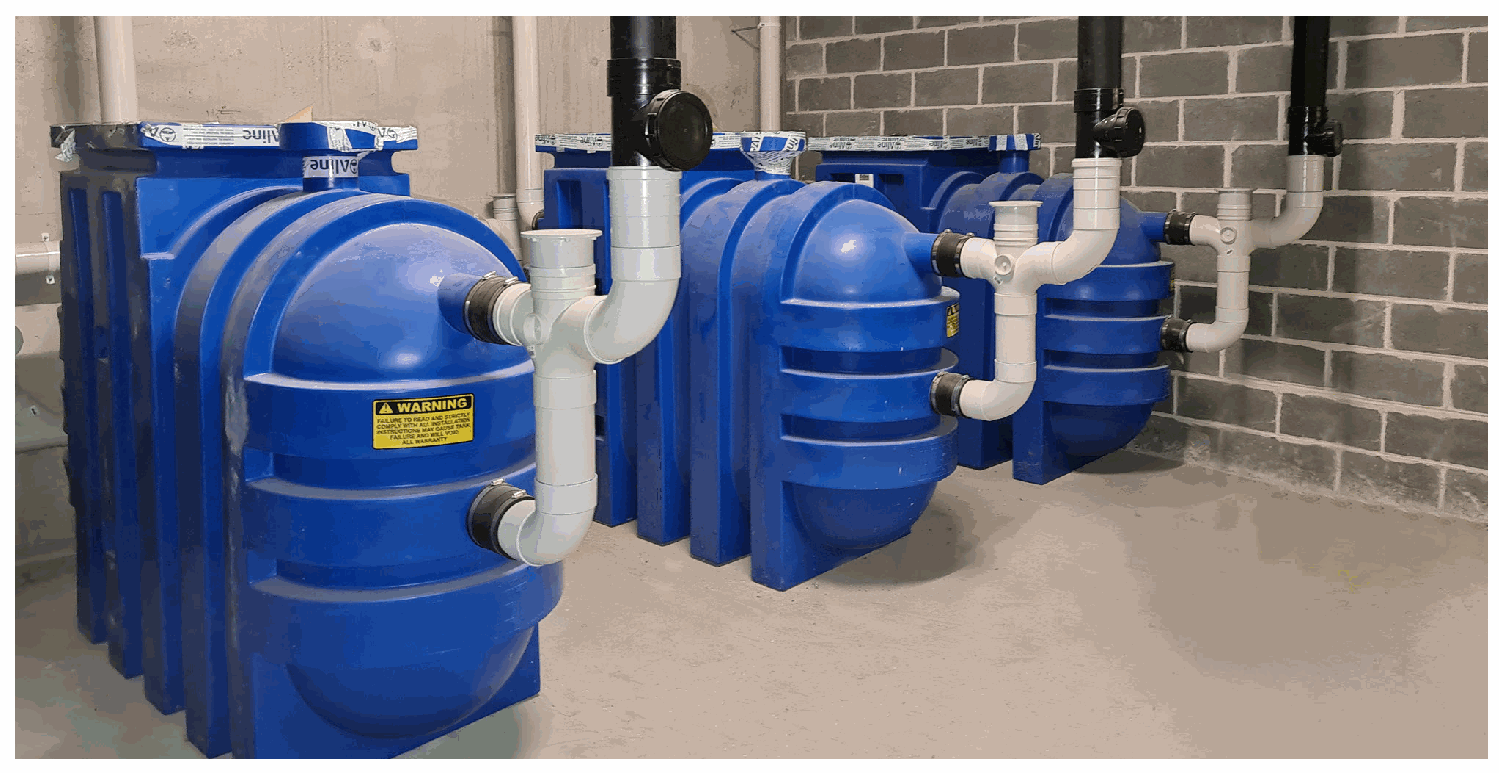

The KGT1000 is rated for both above ground and below ground installation, so it can sit in a plant room, service yard, or be buried under a trafficable area with the appropriate lid.

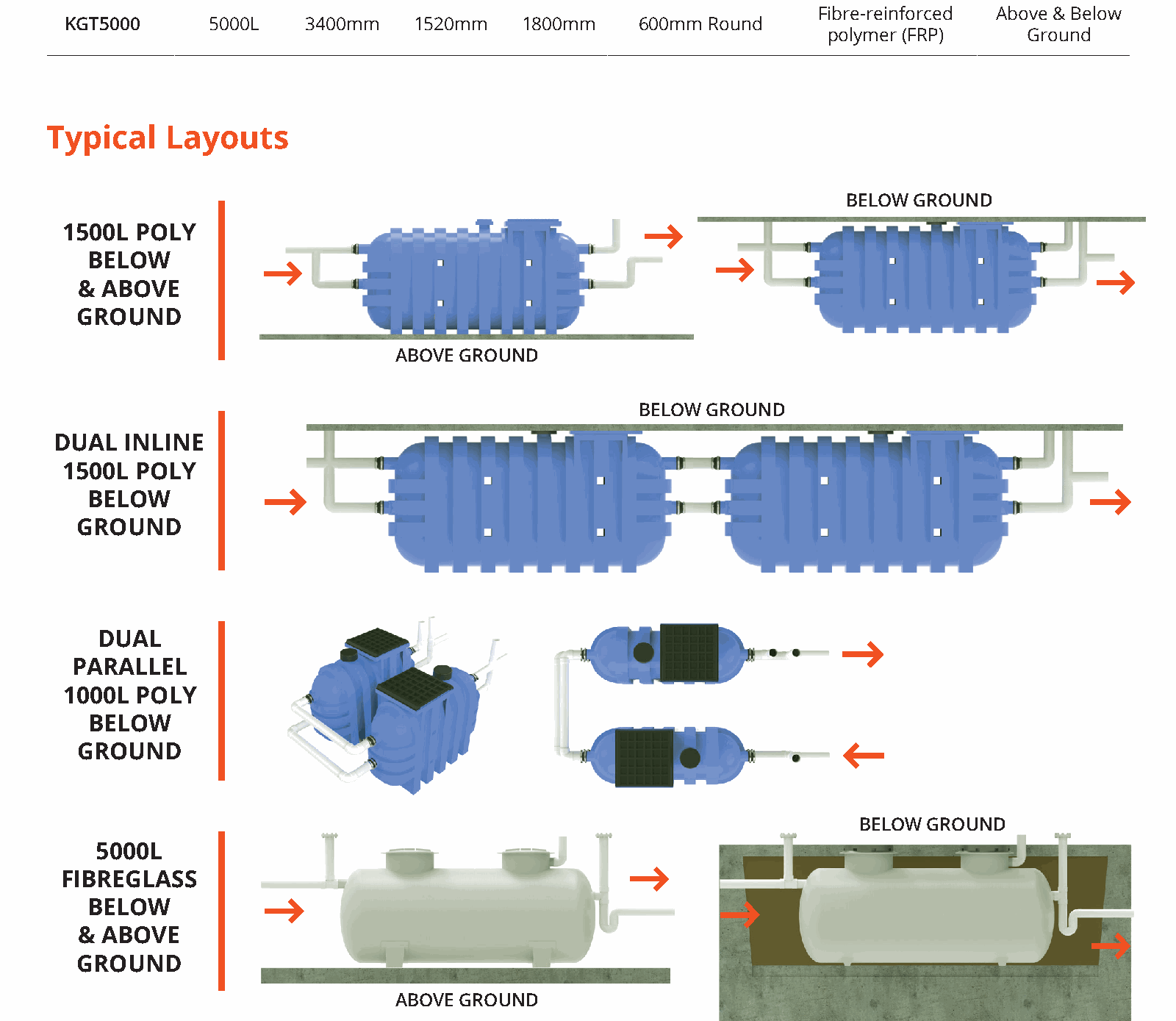

For sites with higher flows than a single 1000L unit can handle, the Kwikflo range supports dual parallel and dual inline configurations, and steps up through 1500L poly to 2000L, 3000L, 4000L and 5000L fibre-reinforced polymer models.
Straightforward Servicing Access
A 600mm square manhole gives access for pump-out and inspection. Grease arrestors need regular pump-out by a licensed liquid waste contractor, at a frequency set by the local water authority based on the size of the unit and the kitchen's output.
Features
- Gravity grease separation
- Removes fats, oils and grease
- Removes suspended solids
- 1000L nominal volume
- Internal pipework directed to the base of the tank
- Avoids re-suspension of settled sludge and grease
- Sludge and solids settle into the base of the unit
- Grease trapped and floated to the surface
- Treated liquid discharged to sewer
- Polyethylene tank construction
- 600mm square manhole
- Above ground installation
- Below ground installation
- Risers available on request
- Multiple lid options across Class B and Class D ratings
- Dual inline configuration capability
- Dual parallel configuration capability
- Approved listed pre-treatment for food businesses
- Part of a range extending from 1000L to 5000L
- Custom fibreglass sizes available

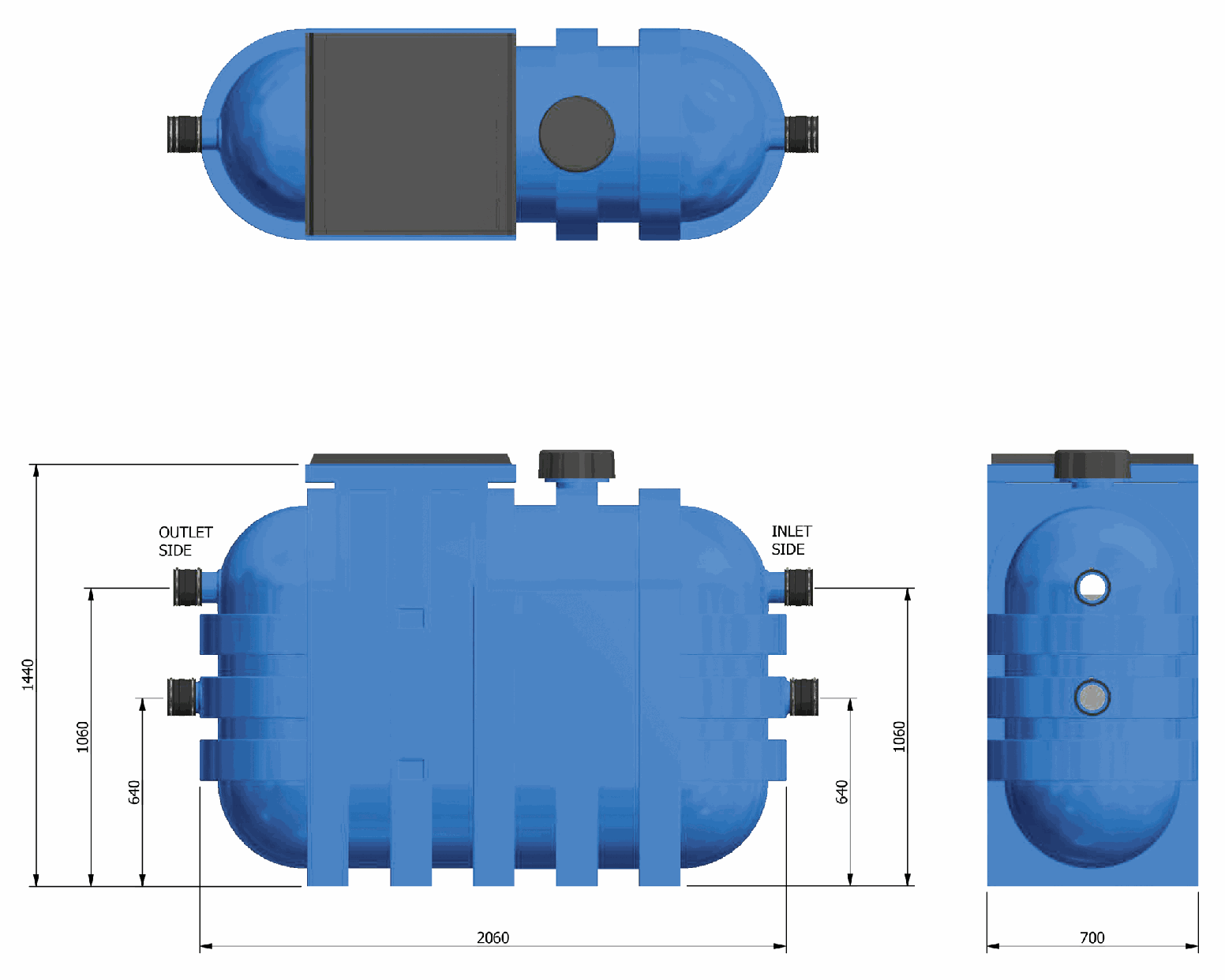

Construction
- Polyethylene (poly) grease arrestor tank
- 1000L volume
- 2060mm length
- 710mm width
- 1485mm depth
- 600mm square manhole
- Internal inlet pipework directed to the base of the tank
- Inlet and outlet connections on opposite ends of the tank
- Moulded external ribbing for structural strength
- Inlet plumbing to be installed by a licensed plumber
- Risers available on request
- Lid selected separately to suit the installation and load class
Liquids Handled
- Raw sewage
- Trade waste
- Effluent
- Stormwater
Applications
- Cafés
- Restaurants
- Canteens
- Hospitals
- Bars and hotels
- Commercial kitchens
- Food business trade waste pre-treatment
- Above ground grease arrestor installations
- Below ground grease arrestor installations
How It Works
Contaminated water arrives through the inlet pipe.
The internal pipework directs that flow to the base of the tank, which avoids mixing and re-suspending sludge and grease that has already settled or risen.
Sludge and solids settle in the base of the unit.
Grease is trapped and floats to the surface.
Treated liquid is discharged from the grease arrestor to sewer.
Installation Information
The KGT1000 can be installed above ground or below ground. Inlet plumbing is to be installed by a licensed plumber, and risers are available on request where the tank sits deeper below finished surface level.
Important installation considerations include:
- The water level and outlet pipe must sit 150mm below the inlet.
- The inlet connections are on one end of the tank and the outlet connections on the opposite end.
- The lid must be selected to match the installation type and the traffic load passing over it.
- Below ground installations require a load-rated cover, with Class B and Class D options available.
- Above ground installations can use the poly or fibreglass 600x600 lid, or the 200mm poly inspection port lid.
- Sites with flows beyond a single 1000L unit may require a dual parallel or dual inline arrangement.
- Sizing, trade waste approval and pump-out frequency are set by the local water authority.
- Final sizing and installation should be approved by the relevant hydraulic consultant, engineer, licensed plumber and local authority.
Specifications
| Specification | Details |
|---|---|
| Model Number | KGT1000 |
| Product Type | Grease Arrestor / Grease Trap |
| Volume | 1000L |
| Length | 2060mm |
| Width | 710mm |
| Depth | 1485mm |
| Manhole | 600mm Square |
| Material | Polyethylene (Poly) |
| Installation | Above and Below Ground |
| Separation Method | Gravity Separation |
| Separated Materials | Fats, Oils, Grease and Suspended Solids |
| Liquids Handled | Raw Sewage, Trade Waste, Effluent and Stormwater |
| Outlet Level Requirement | 150mm Below the Inlet |
| Risers | Available on Request |
| Inlet Plumbing | To Be Installed by Plumber |
| Approval | Listed Pre-Treatment for Food Businesses |
| Approval Reference | MPT/AGA/1000L |
| Manufacturer | Aline Pumps |
| Range | Kwikflo Grease Trap Range |
Exact dimensions, nominal operating volume, lid selection and riser requirements for the KGT1000 should be confirmed against the current manufacturer's technical drawing before ordering.
What's Included
- 1 x Kwikflo KGT1000 1000L Polyethylene Grease Arrestor Tank
- 1 x Set of Internal Inlet Pipework Directed to the Base of the Tank
- 1 x 600mm Square Manhole Opening
Lids, risers and inlet plumbing are selected and supplied separately to suit the installation. Contact our team to specify the correct lid class and riser configuration for your site.
