Kwikflo KGT1500 1500L Grease Trap Arrestor - Above & Below Ground
Free Express Shipping Australia-Wide
Found a better price elsewhere? We’ll beat it.
The Kwikflo KGT1500 Grease Arrestor is a 1500L polyethylene grease trap built to remove fats, oils, grease and suspended solids from commercial kitchen wastewater before it reaches the sewer. The extra 500L over the 1000L model suits busier kitchens and longer service periods between pump-outs. It is rated for above ground and below ground installation and is an approved listed pre-treatment product for food businesses, manufactured by Aline Pumps.
Highlights
- Removes fats, oils, grease and suspended solids from trade waste
- 1500L polyethylene tank, model KGT1500
- Suitable for both above ground and below ground installation
- Approved listed pre-treatment for food businesses under MPT/AGA/1500L
- Internal pipework directs flow to the base of the tank to avoid re-suspending settled sludge
- 600mm square manhole for access and servicing
- Longer interval between pump-outs than a 1000L unit at the same kitchen load
- Risers available on request for deeper below-ground installs
- Handles raw sewage, trade waste, effluent and stormwater
- 2925mm x 710mm footprint, same width and depth as the 1000L model
- Can be configured in dual inline arrangements for higher flows
More Capacity for Busier Kitchens
Commercial kitchens push a constant load of fats, oils and grease into their drainage. Left untreated, that material cools and hardens in the sewer line, which is why water authorities require food businesses to install a grease arrestor as a pre-treatment stage.
The KGT1500 holds 1500L, giving a longer retention time and more room for accumulated grease and sludge than a 1000L unit at the same kitchen load. For sites where the local water authority has set a pump-out frequency that a smaller tank cannot meet comfortably, the extra volume is usually the deciding factor.
It shares the 710mm width and 1485mm depth of the 1000L model and gains its capacity in length, at 2925mm, which often makes it a straight swap where width is constrained.
Internal Pipework That Protects the Settled Layers
Contaminated water arrives through the inlet pipe and is directed by the internal pipework down to the base of the tank.
Feeding the flow low into the tank avoids stirring up sludge and grease that has already separated. Without this, incoming water would mix the tank contents and carry separated material back toward the outlet.
Inside the tank, the wastewater slows and separates into three layers. Sludge and heavier solids settle into the base of the unit, grease is trapped and floats to the surface, and the treated liquid in the middle is discharged from the grease arrestor to sewer.
Above Ground or Below Ground Installation

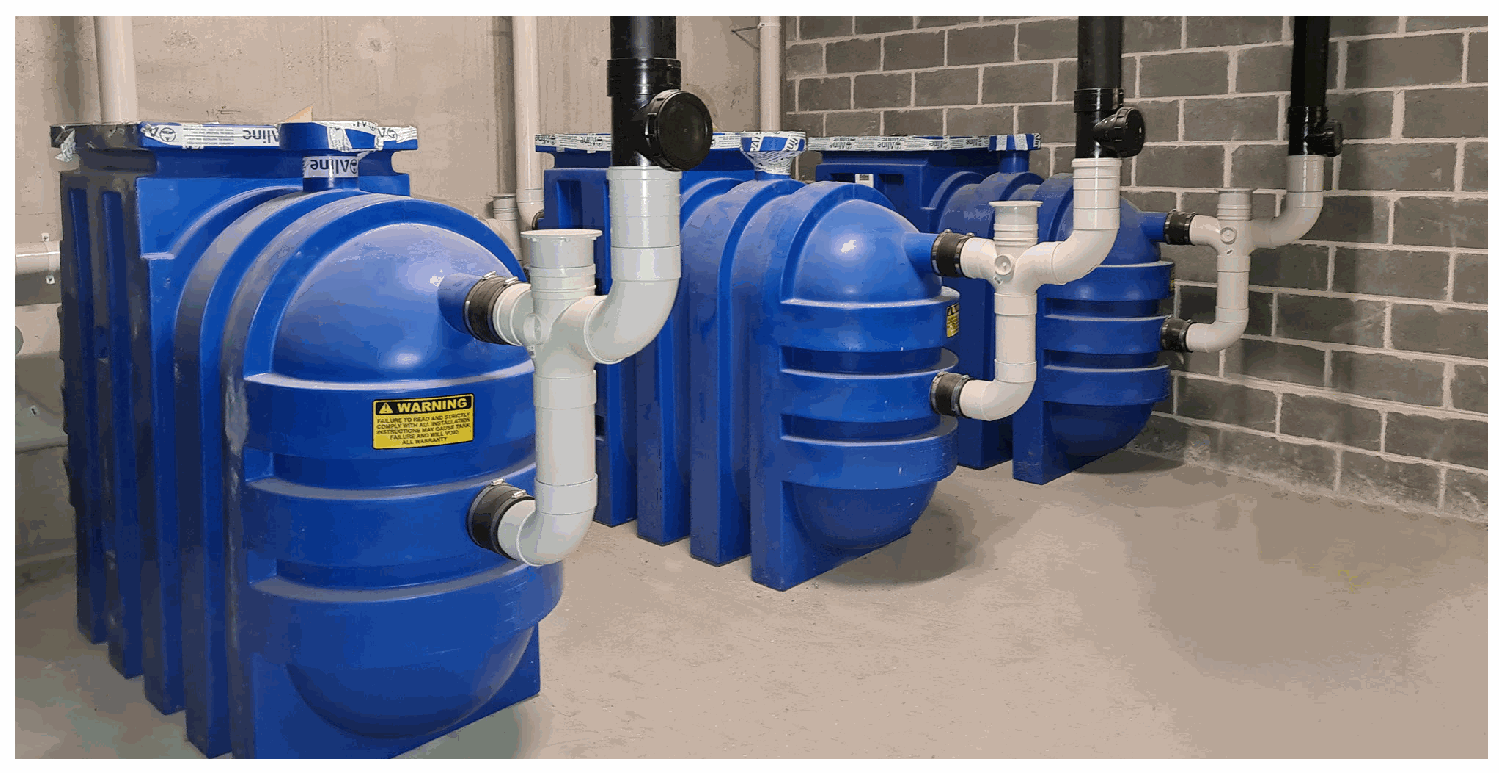

The KGT1500 is rated for both above ground and below ground installation, so it can sit in a plant room, service yard, or be buried under a trafficable area with the appropriate lid.

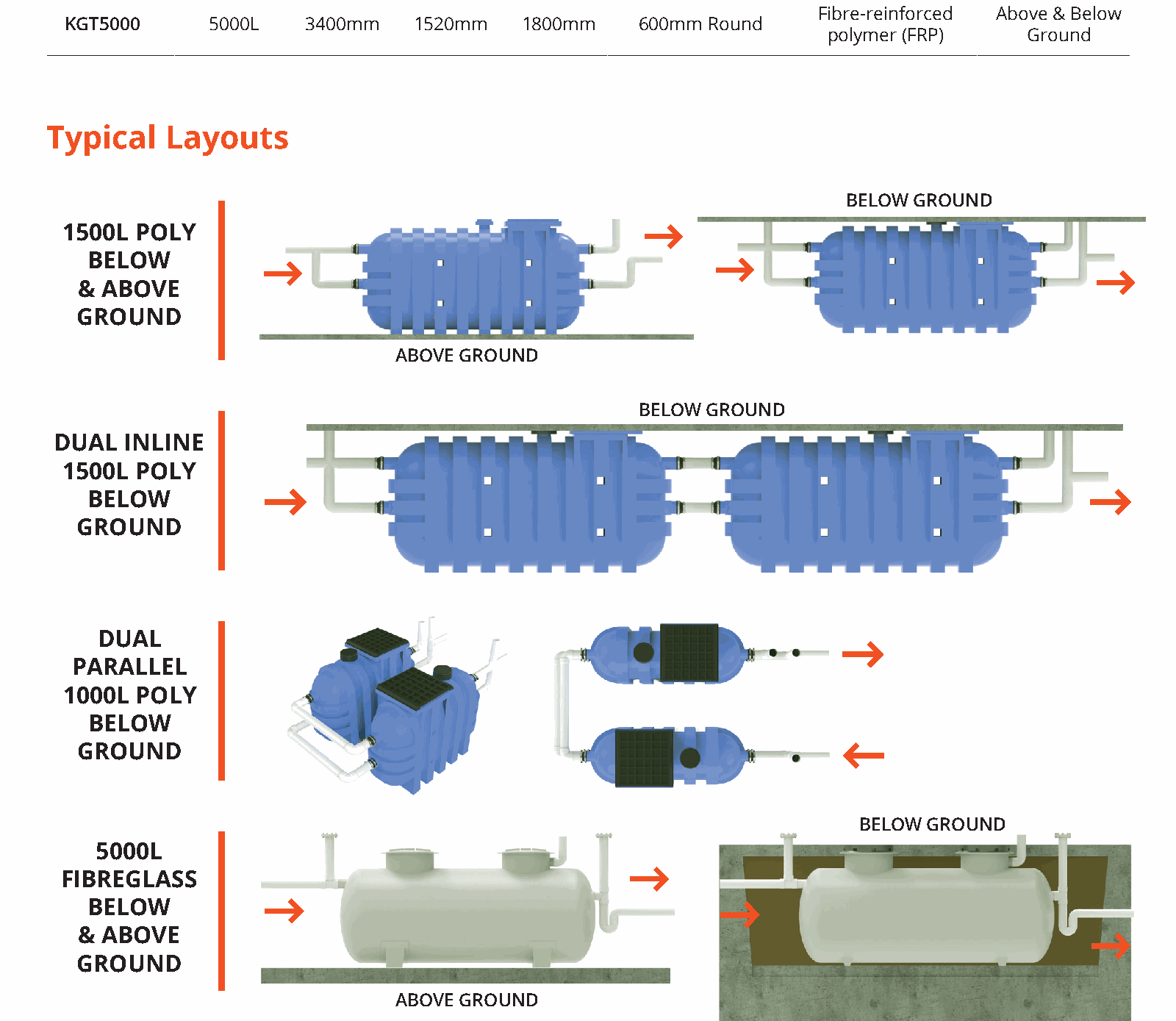

Where a single 1500L unit is not enough, the Kwikflo range supports dual inline and dual parallel configurations, and steps up to fibre-reinforced polymer models at 2000L and above.
Straightforward Servicing Access
A 600mm square manhole gives access for pump-out and inspection. Grease arrestors need regular pump-out by a licensed liquid waste contractor, at a frequency set by the local water authority based on the size of the unit and the kitchen's output.
Features
- Gravity grease separation
- Removes fats, oils and grease
- Removes suspended solids
- 1500L nominal volume
- Internal pipework directed to the base of the tank
- Avoids re-suspension of settled sludge and grease
- Sludge and solids settle into the base of the unit
- Grease trapped and floated to the surface
- Treated liquid discharged to sewer
- Polyethylene tank construction
- 600mm square manhole
- Above ground installation
- Below ground installation
- Risers available on request
- Dual inline configuration capability
- Dual parallel configuration capability
- Approved listed pre-treatment for food businesses
- Approval reference MPT/AGA/1500L
Construction
- Polyethylene (poly) grease arrestor tank
- 1500L volume
- 2925mm length
- 710mm width
- 1485mm depth
- 600mm square manhole
- Internal inlet pipework directed to the base of the tank
- Inlet and outlet connections on opposite ends of the tank
- Moulded external ribbing for structural strength
- Inlet plumbing to be installed by a licensed plumber
- Risers available on request
- Lid selected separately to suit the installation and load class
Liquids Handled
- Raw sewage
- Trade waste
- Effluent
- Stormwater
Applications
- Cafés
- Restaurants
- Canteens
- Hospitals
- Bars and hotels
- Commercial kitchens
- Food business trade waste pre-treatment
- Above ground grease arrestor installations
- Below ground grease arrestor installations
How It Works
Contaminated water arrives through the inlet pipe.
The internal pipework directs that flow to the base of the tank, which avoids mixing and re-suspending sludge and grease that has already settled or risen.
Sludge and solids settle in the base of the unit.
Grease is trapped and floats to the surface.
Treated liquid is discharged from the grease arrestor to sewer.
Installation Information
The KGT1500 can be installed above ground or below ground. Inlet plumbing is to be installed by a licensed plumber, and risers are available on request where the tank sits deeper below finished surface level.
Important installation considerations include:
- The water level and outlet pipe must sit 150mm below the inlet.
- The inlet connections are on one end of the tank and the outlet connections on the opposite end.
- The lid must be selected to match the installation type and the traffic load passing over it.
- Allow for the 2925mm length when planning the excavation or plant room location.
- Sites with flows beyond a single 1500L unit may require a dual parallel or dual inline arrangement.
- Sizing, trade waste approval and pump-out frequency are set by the local water authority.
- Final sizing and installation should be approved by the relevant hydraulic consultant, engineer, licensed plumber and local authority.
Specifications
| Specification | Details |
|---|---|
| Model Number | KGT1500 |
| Product Type | Grease Arrestor / Grease Trap |
| Volume | 1500L |
| Length | 2925mm |
| Width | 710mm |
| Depth | 1485mm |
| Manhole | 600mm Square |
| Material | Polyethylene (Poly) |
| Installation | Above and Below Ground |
| Separation Method | Gravity Separation |
| Separated Materials | Fats, Oils, Grease and Suspended Solids |
| Liquids Handled | Raw Sewage, Trade Waste, Effluent and Stormwater |
| Outlet Level Requirement | 150mm Below the Inlet |
| Risers | Available on Request |
| Inlet Plumbing | To Be Installed by Plumber |
| Approval | Listed Pre-Treatment for Food Businesses |
| Approval Reference | MPT/AGA/1500L |
| Manufacturer | Aline Pumps |
| Range | Kwikflo Grease Trap Range |
Exact dimensions, nominal operating volume, lid selection and riser requirements for the KGT1500 should be confirmed against the current manufacturer's technical drawing before ordering.
What's Included
- 1 x Kwikflo KGT1500 1500L Polyethylene Grease Arrestor Tank
- 1 x Aline Poly Lid 450mm to Suit
- 1 x Aline Foam Tape
- 1 x Set of Internal Inlet Pipework Directed to the Base of the Tank
- 1 x 600mm Square Manhole Opening
Risers and inlet plumbing are selected and supplied separately to suit the installation. A Class D lid configuration is available for below-ground trafficable installations. Contact our team to specify the correct lid and riser arrangement for your site.
