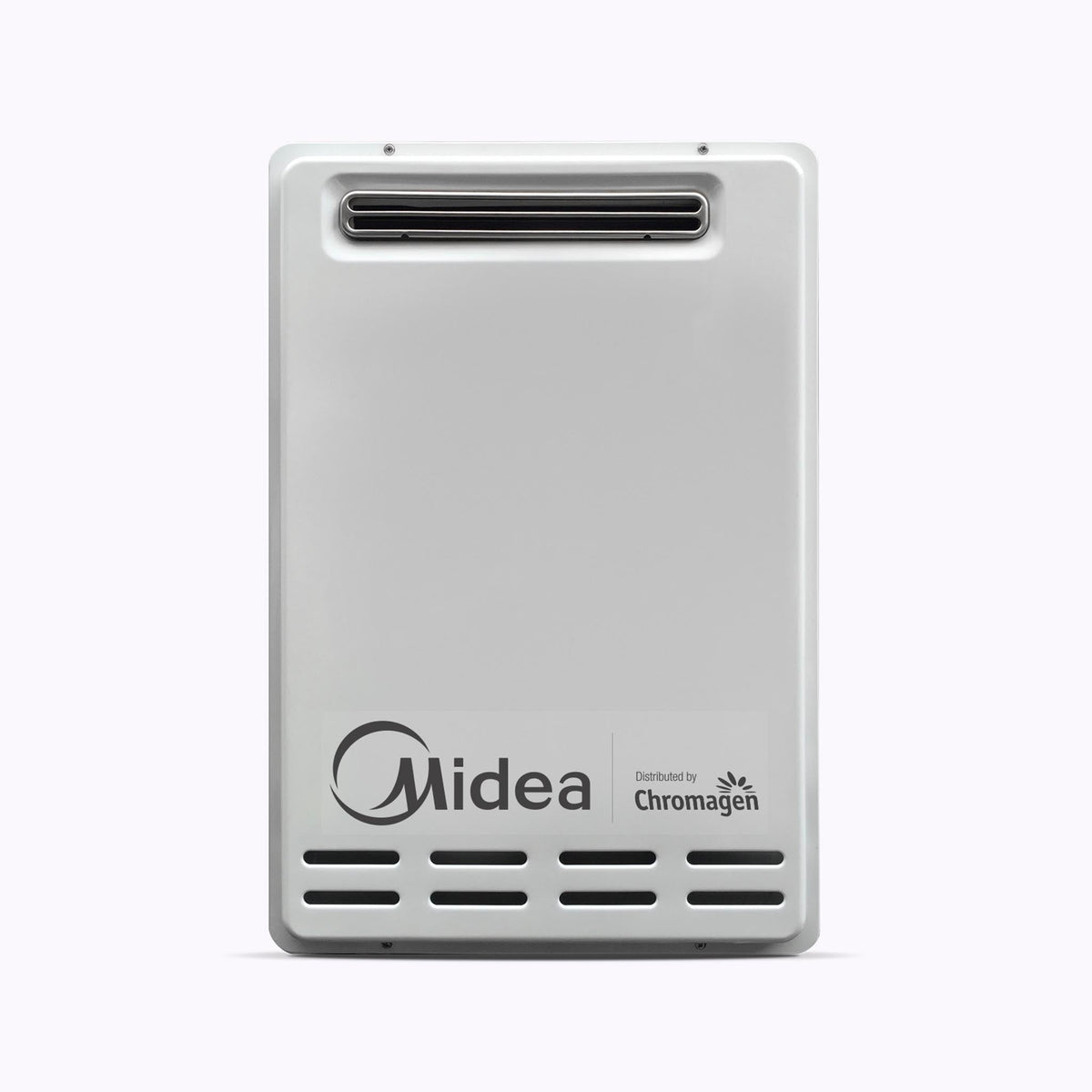

Midea M Series M20 20L/min Continuous Flow Gas Hot Water Heater - 70C Preset
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
The Midea M Series M20 (70C preset) is an external continuous flow gas water heater delivering 20 litres per minute at a 25C rise with a 6.7 star energy rating. It heats water only when a tap is opened, so there is no storage tank and no standing heat loss. Pre-set to 70C for tempered and ring-main systems that run a tempering valve, and available in Natural Gas and LPG.
Highlights
- 20 L/min continuous flow at a 25C temperature rise
- 6.7 star energy rating, 89.1% thermal efficiency
- Hot water on demand, no storage tank and no standing heat loss
- Pre-set 70C for tempered and ring-main systems
- Available in Natural Gas and LPG
- Inbuilt frost protection for cold climates
- Electronic ignition, burner fires only when hot water is drawn
- Compact wall mounted external unit
- Solar compatible, works as a booster on a solar pre-heat system
- 10 year heat exchanger warranty, 3 years parts and labour
Hot Water Only When You Need It
A continuous flow unit has no storage tank. It sits idle until a tap opens, then a flow sensor fires the burner and heats the water as it passes through the heat exchanger. When the tap closes the burner shuts down, so there is no standing heat loss from keeping a tank hot around the clock.
Specifications
| Specification | Details |
|---|---|
| Model | M20 |
| Supplier Code | B2017 (Natural Gas) / B2016 (LPG) |
| Product Type | External Continuous Flow Gas Water Heater |
| Flow Rating | 20 L/min at 25C rise |
| Temperature Setting | Pre-set 70C (tempering valve required) |
| Energy Star Rating | 6.7 stars |
| Thermal Efficiency | 89.1% |
| Flue System | Forced Flue (External) |
| Nominal Gas Consumption | 160 MJ/h |
| Gas Types | Natural Gas and LPG |
| Dimensions (H x W x D) | 595 x 375 x 165 mm |
| Weight | 15.5 kg |
| Water Connection | 1/2" (nominal 15mm) |
| Gas Connection | 3/4" (nominal 20mm) |
| Water Pressure | 150 to 1000 kPa (350 to 500 kPa preferred) |
| Minimum Operating Flow | 1.8 L/min (2.5 L/min to start) |
| Anti-Frost Protection | Standard |
| Power Supply | 240V / 50Hz mains |
| Ignition | Electronic |
| Manufacturer | Midea (Chromagen) |
Applications
- Homes with 1 to 2 bathrooms
- Tempered and ring-main hot water systems
- Replacing a storage hot water system
- Solar hot water booster
- Natural Gas or LPG homes
Installation Information
- Installation must be carried out by a licensed gas fitter.
- Confirm your gas type (Natural Gas or LPG) and available gas supply before ordering.
- A tempering valve is required on the 70C pre-set model to deliver safe outlet temperatures.
- Mount on an external wall with clearances per the installation manual.
- A 240V power point is required near the unit.
What's Included
- 1 x Midea M Series M20 Continuous Flow Gas Water Heater
- 1 x Installation and User Manual
Warranty
10 year heat exchanger warranty, 3 years parts and labour.
Need Assistance or Ready to Order?
Our team can help you match the right unit to your home and gas type. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support. Installation must be carried out by a licensed gas fitter.
