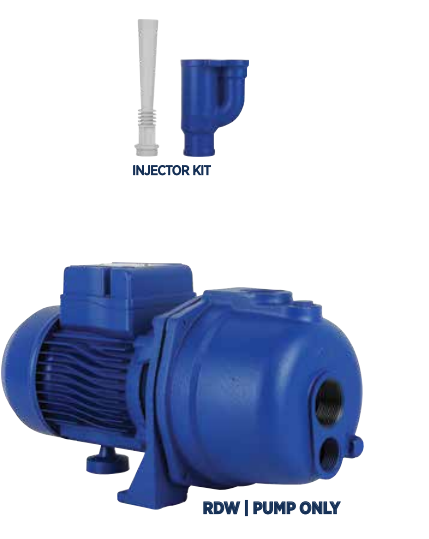

RDW100E Self Priming Deep Well Pump w/ Injector
The REEFE® RDW100E Self Priming Deep Well Pump is a powerful and reliable solution for drawing water from deep wells, dams, creeks, and rivers. Designed and manufactured in Europe, this pump is ideal for domestic and agricultural applications where the water level is deeper than 8 meters. With its robust construction and innovative design, this pump is built to last, providing consistent performance in demanding conditions.
Key Features:
- Self-priming design for efficient operation in deep wells up to 50m.
- Thermal overload protection for added safety and extended pump life.
- Durable anti-corrosive cast iron body, motor bracket, and ejector.
- Stainless steel Aisi 304 pump shaft for added durability and resistance to wear.
- Carbon-ceramics mechanical seal for leak prevention and smooth operation.
- Techno-polymer diffusers, nozzle & venturi tube for optimized flow performance.
- Polymer impellers for lightweight, efficient water movement.
- Suitable for long suction lines from tanks to pump.
Applications:
- Deep well pumping (up to 50m depth).
- Drawing water from dams, creeks, and rivers.
- Irrigation, tank filling, or water transfer for domestic and agricultural needs.
- Ideal for use in areas where water levels are more than 8m deep.
Specifications:
- Model: RDW100E
- Code: 21156
- Power: 930W
- Current: 4.1 Amps
- Inlet/Outlet Size: 1"
- Dimensions: 370 x 180 x 188 mm
- Maximum Flow: TBD
- Maximum Head: TBD
- Liquid Temperature: Max 35°C (domestic use)
What’s in the Box:
- 1 x RDW100E Self Priming Deep Well Pump
- 1 x Injector Kit (P20/P30)
- Instruction Manual
Note: Pipework is not provided. Please ensure you have the necessary piping and fittings for installation. Fittings/pipework can be requested.
