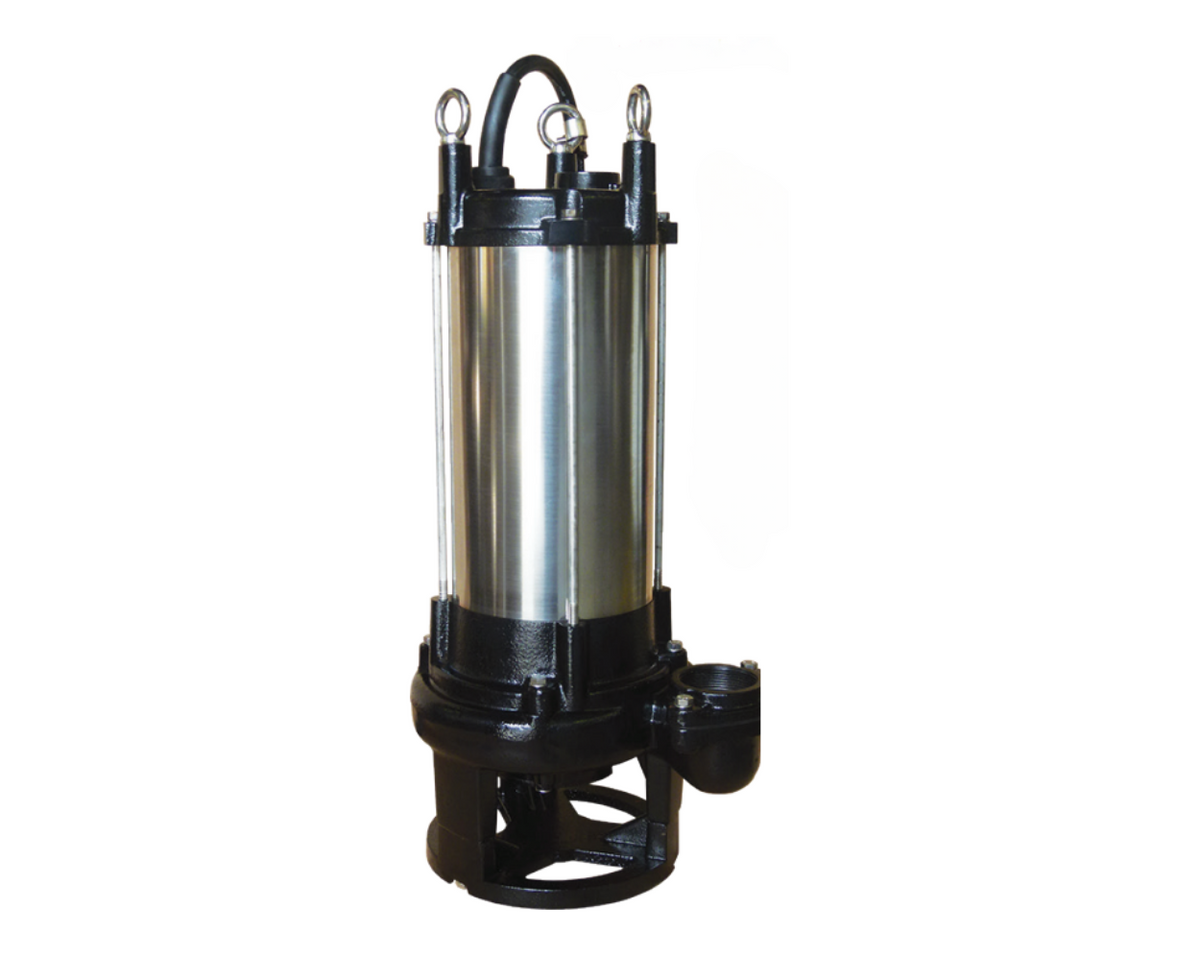

REEFE Heavy Duty Sewage Grinder Pump 2.2kw RGS22M
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview
Features:
- Capable of handling flows up to 6.4 L/sec and achieving a maximum head of 22m.
- Grinder mechanism comprising a fixed shredder ring and a rotating grinder made with hardened Chromium-Molybdenum alloy steel, delivering over 80,000 shredding actions per minute.
- Unique epoxy cable sealing base prevents water vapor from infiltrating the pump.
- Lifting lugs facilitate easy installation and servicing.
- Maximum liquid temperature tolerance of 40°C.
- Electrical Safety Approval to AS/NZS 60335.2.41 standards.
- Constructed with abrasion-resistant materials.
- Removable solid cast iron base for guide rail installations.
- Equipped with triplex seals, including double mechanical seal plus an oil seal, to safeguard the motor from the pumped liquid.
- 10m cable length.
- Ingress Protection rating of IP68.
- Insulation Class F.
Model Number: RGS22M
Flow Rate:
- Maximum: Tooltip 6.4 L/sec (384 L/min)
Total Head/Draw:
- Tooltip: 22m Head
Inlet/Outlet Size:
- Diameter: 50mm
Cable Length:
- 10m
Amperage Draw:
- 4.8 amp
Horsepower:
- Tooltip: 3.0HP (2.2kw)
Voltage:
- 415 volt
Packaging:
- Dimensions (cm): 31.2 x 31.2 x 51.3cm
- Weight (kg): 48kg
Liquid Type:
- Sewage - Dirty - Waste Water
Need More Information?
REEFE RGS22M Pump Installation Instructions
Applications:
The RGS22M Grinder Pump is suitable for a wide range of applications, including childcare centers, schools, recreational facilities, waste treatment facilities, industrial plants, sewage applications, and townhouse and unit complexes.
4. Construction:
- Grinder mechanism composed of a fixed shredder ring and a rotating grinder made with hardened Chromium-Molybdenum alloy steel, providing more than 80,000 shredding actions per minute.
- Unique epoxy cable sealing base prevents water vapor entering the water.
- Lifting lugs for easy installation and servicing.
- Max liquid temperature 40°C.
- Electrical Safety Approval to AS/NZS 60335.2.41.
- Abrasion-resistant construction.
- Removable solid cast iron base. When using these pumps with guide rails, the base must be removed.
- Hardened Grinder mechanism.
- Triplex seals - double mechanical seal plus an oil seal to isolate the motor from the pumped liquid.
- 10m cable.
- Ingress Protection IP68.
- Insulation Class F.
Why Choose the Pump:
When you choose the RGS22M Grinder Pump from us, you benefit from free shipping, a 1-year warranty, and exceptional after-sales support. Our commitment to customer satisfaction ensures that you receive reliable assistance and guidance every step of the way.
