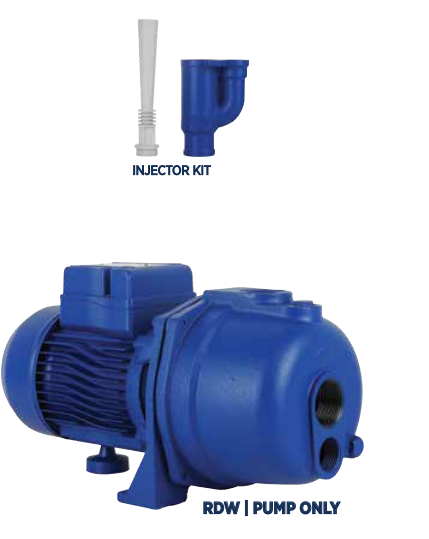

REEFE RDW200E Self Priming Deep Well Pump With Injector
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview
Reefe RDW200E Deep Well Pump with Injector Kit
European Quality, Built to Last (3-Year Warranty)
Invest in durability and performance with the Reefe RDW200E deep well pump. Manufactured in Europe, this heavy-duty, self-priming centrifugal pump is designed to handle the demanding needs of rural and household water systems. With a robust 3-year warranty, you can trust in the RDW200E for reliable, long-term operation.
Specifications:
- Model Number: RDW200E
- Voltage: 240 volts
- Amp Draw: 10.3 amps
- Horsepower: 1HP, Power Output: 1.47 kW
- Max Flow Rate: 60 liters per minute
- Maximum Suction Lift: 50 meters
- Pump Rating: 35 meters at 20 L/min, 35 psi
- Inlet/Outlet Size: 32mm inlet, 25mm outlet
- Injector Type: Choose between P20 or P30 based on suction depth requirements
- Packaging Dimensions: 41.5 cm x 22.6 cm x 24.8 cm
- Packaging Weight: 29.2 kg
- Liquid Type Handled: Clean water
Applications:
- Suitable for deep well water extraction up to 50m in depth
- Perfect for long suction lines from tanks to the pump
- Capable of drawing water from dams, creeks, and rivers
- Ideal for irrigation, tank filling, or transferring water in various settings
Features:
- Includes an external injector kit to optimize performance in deep well applications
- Available configurations include additional pressure tank, switch, gauge, and tee
- Features thermal overload protection for safety and durability
Construction Details:
- Pump body and injector constructed from anti-corrosive coated cast iron
- Motor body made from Aluminium UNI 5076
- Utilizes techno-polymer diffusers, nozzle, and Venturi tube
- Equipped with polymer impellers and a stainless steel AISI 304 pump shaft
- Sealed with a carbon-ceramic mechanical seal
- Rated with Ingress Protection IP44 and Insulation Class F
Note: Requires a 15 amp power outlet for operation.
Why Choose Reefe RDW200E? Choosing the RDW200E means investing in a pump that's built to endure. Made in Europe with the highest standards of quality and engineering, this pump is backed by a comprehensive 3-year warranty and a promise of durability. It's designed not just to meet, but to exceed the rigorous demands of water extraction and management in both household and agricultural environments.
Documents
Have questions when you're installing the pump? Give us a call on 1300 930 847, we're happy to help!
What’s in the Box:
- 1 x RDW200E Self Priming Deep Well Pump
- 1 x Injector Kit (P20/P30)
- Instruction Manual
Note: Pipework is not provided. Please ensure you have the necessary piping and fittings for installation. Fittings/pipework can be requested.
