REEFE RGM055A 250L Sewer Pump Station Package
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview

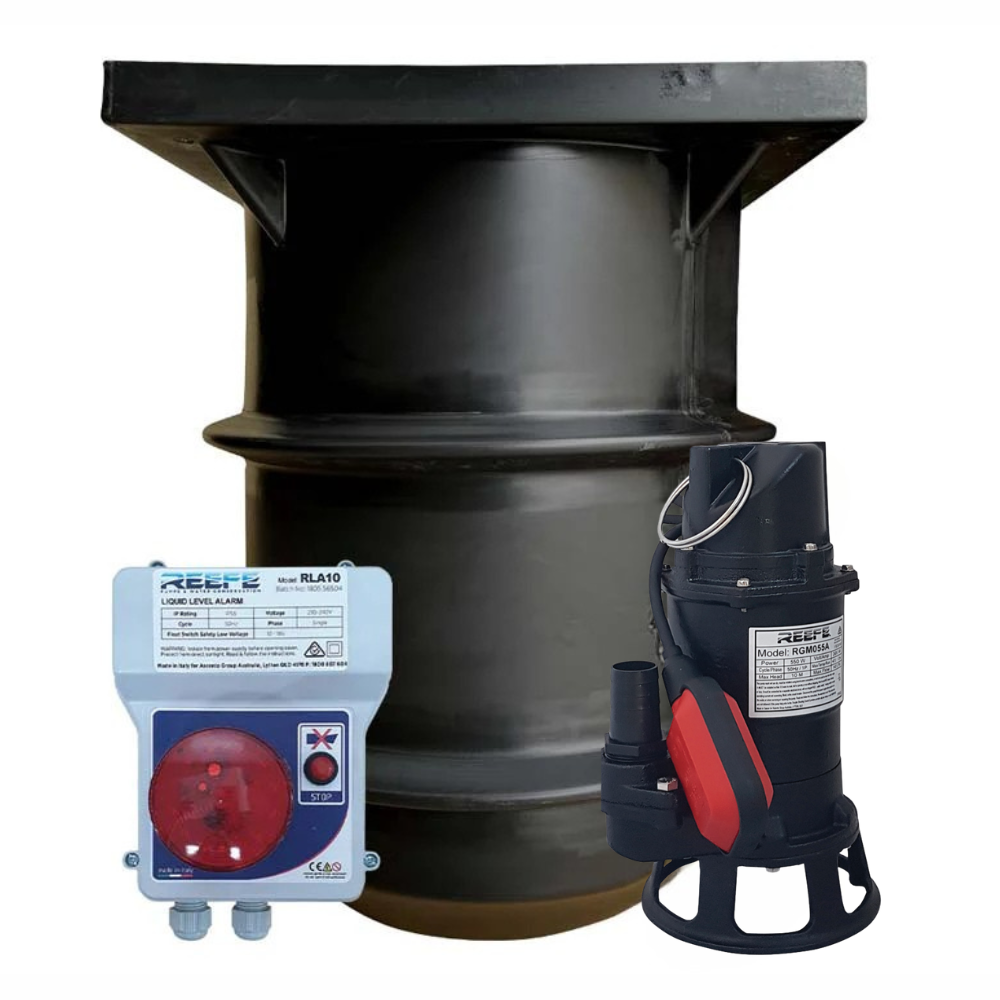

REEFE RGM055A 250L Sewer Pump Station Package
Plug-and-play 250L system for domestic sewer, stormwater, and greywater applications.

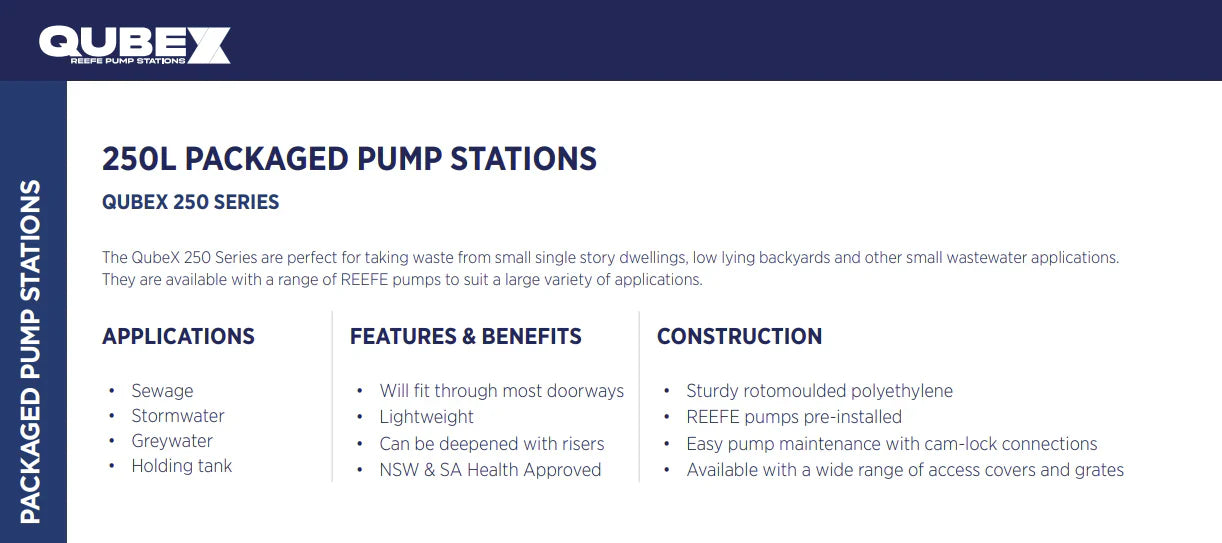

The REEFE QubeX 250 Series is a preassembled, ready-to-install solution designed for homes, granny flats, and low-lying properties. This package features the compact RGM055A automatic grinder pump.
Delivered pre-plumbed and factory-tested, the system keeps installation simple - just connect your inlet pipe and power.
Highlights
-
Fully Preassembled – Saves time and labour during install
-
Compact Footprint – Fits through standard doorways
-
Durable Rotomoulded Tank – Lightweight and built to last underground
-
RGM055A Grinder Pump
-
High-Level Alarm Included – Visual and audible alert for overflow prevention
-
Health Approved – Certified for use in NSW and SA
-
Low Maintenance – Cam-lock pipework allows quick servicing
-
Custom Cover Options – Choose from pedestrian or traffic-rated lids
Applications
-
Sewage Management – Ideal for homes and granny flats
-
Stormwater – Suitable for low-lying properties
-
Greywater Recycling – Manage household greywater
-
Temporary Holding Tank – Useful for work sites or overflow management
Specifications
Model: RGM055A 250L Packaged Pump Station
-
Tank Capacity: 250 litres
-
Pump Type: Single-phase automatic grinder
-
Pump Model: RGM055A
-
Power Supply: 240V
-
Motor Power: 0.55 kW
-
Max Flow: 160 L/min
-
Max Head: 10 m
-
Outlet Size: 32 mm
-
Alarm System: Integrated high-level float alarm
-
Pump Dimensions (mm): 175 (L) x 210 (W) x 335 (H)
-
Pump Weight: 13 kg
Access Cover Options (600 × 600 mm):
-
Class A Poly Pedestrian Cover (Included)
-
Class B Composite
-
Class D Cast Iron
-
Class A or B Grate Options
What’s Included
-
1 × 250L rotomoulded polyethylene tank
-
1 × RGM055A automatic grinder pump (pre-installed)
-
1 × High-level float alarm with beacon
-
1 × Preassembled cam-lock internal pipework
-
1 × 600 × 600 mm poly pedestrian access cover
-
1 × Installation/User Manual
Only the inlet pipe needs to be plumbed on-site. All internals come pre-installed and tested.
Downloads
REEFE 250L Sewer Pump Station Brochure
REEFE 250L Sewer Pump Station Installation Manual

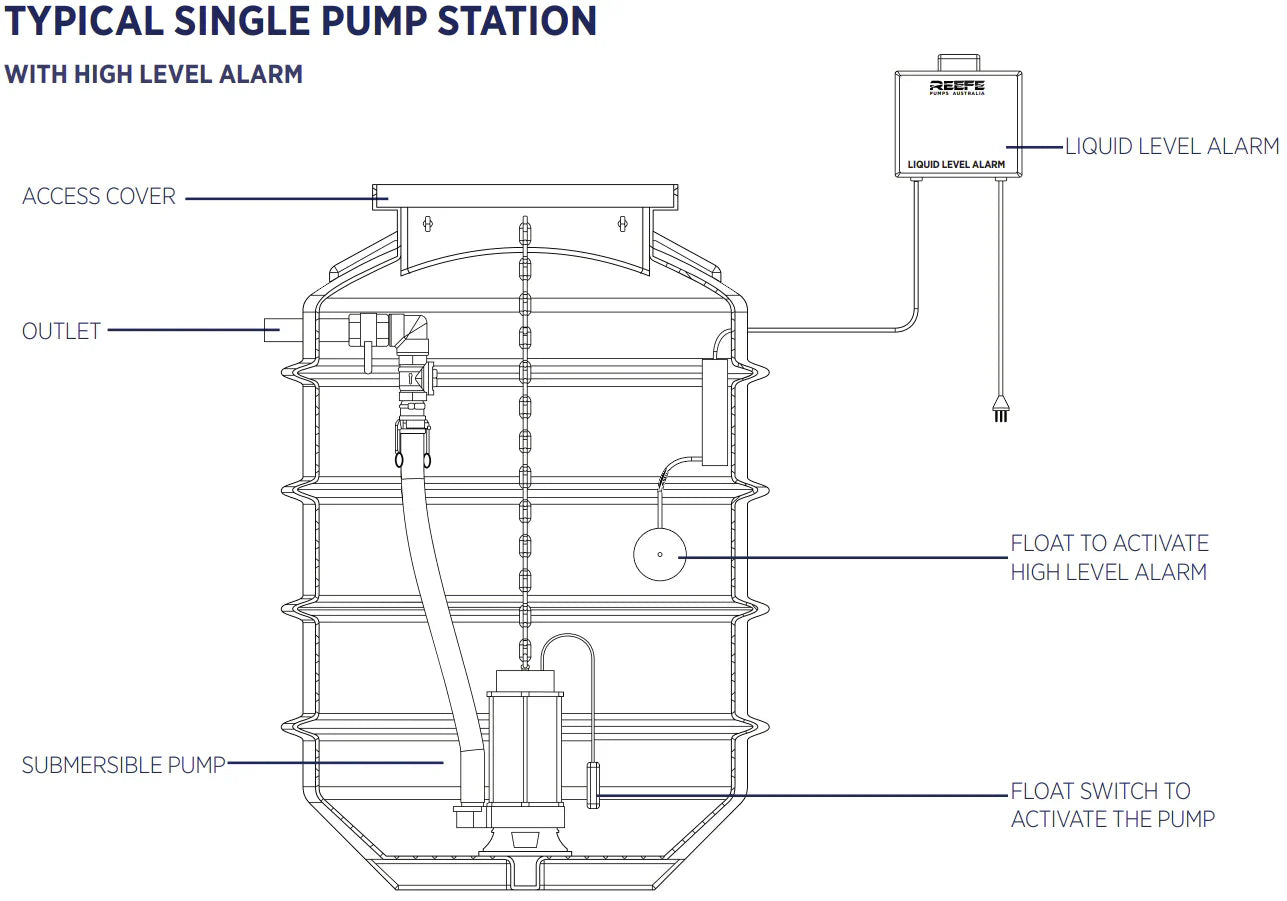

REEFE 250L Sewer Pump Station Exploded View
Please note: Waternex is not responsible for incorrect pump or pump station sizing of sewer lift stations without prior consultation. Returns or exchanges due to incorrect sizing will be at the customer's expense
Need Assistance or Ready to Order?
Our expert team is here to help you select the perfect setup and answer any questions. Contact us at sales@waternex.com.au or give us a call at 1300 930 847 for personalized advice and support.
Pump Station Range
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
Do you offer trade pricing or project quantities?
We do. Trade accounts receive standing discount and priority dispatch. For developments and multi-unit sites we quote the whole schedule and stage deliveries to match your program. Apply for trade pricing or call 1300 930 847.
