REEFE Solar Bore Pump with Solar Panels and Mounting Kit 80L/min 112m RS3C4.8-112.SP
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
The REEFE RS3C4.8-112.SP is a 100 percent solar powered submersible bore pump, delivering up to 80L/min at heads up to 112m using free energy from the sun. It uses an easy MPPT maximum efficiency start controller and a pre-coupled, factory tested centrifugal pump and motor assembly, so you can be up and running quickly, and the matched solar panels and pole mounting kit are included.
Highlights
- 80L/min maximum flow, up to 112m head
- 1100W centrifugal solar submersible bore pump
- Runs on 100 percent renewable solar energy
- MPPT maximum efficiency start controller included
- Under and over voltage protection, plus dead head protection
- Includes 4 x 440W solar panels, pole mounting kit and 15m array cable
- 2 year warranty, REEFE Premium Series
Solar Powered Bore Water
A solar bore pump draws water straight from your bore using energy from the sun, with no mains power or running cost. The MPPT controller gets the most from the panels through the day, and the pump ramps its output with the available sunlight to fill tanks and troughs for stock, irrigation and rural supply.
Specifications
| Specification | Details |
|---|---|
| Model | RS3C4.8-112.SP |
| Code | 35542 |
| Pump Diameter | 3" |
| Impeller Type | Centrifugal |
| System Voltage | 110V |
| Motor Power | 1100 W |
| Maximum Flow | 80 L/min |
| Maximum Head | 112 m |
| Solar Panels Required | 4 x 440W (included) |
| Discharge Outlet | 32mm (1 1/4") |
| Controller | MPPT maximum efficiency start controller |
| Weight (pump) | 14.5 kg |
| Pump Size (Dia x H) | 76 x 702 mm |
| Warranty | 2 years |
| Brand | REEFE |
Applications
- Rural and farm bore water supply
- Stock water and troughs
- Tank filling and irrigation
- Off grid and remote water supply

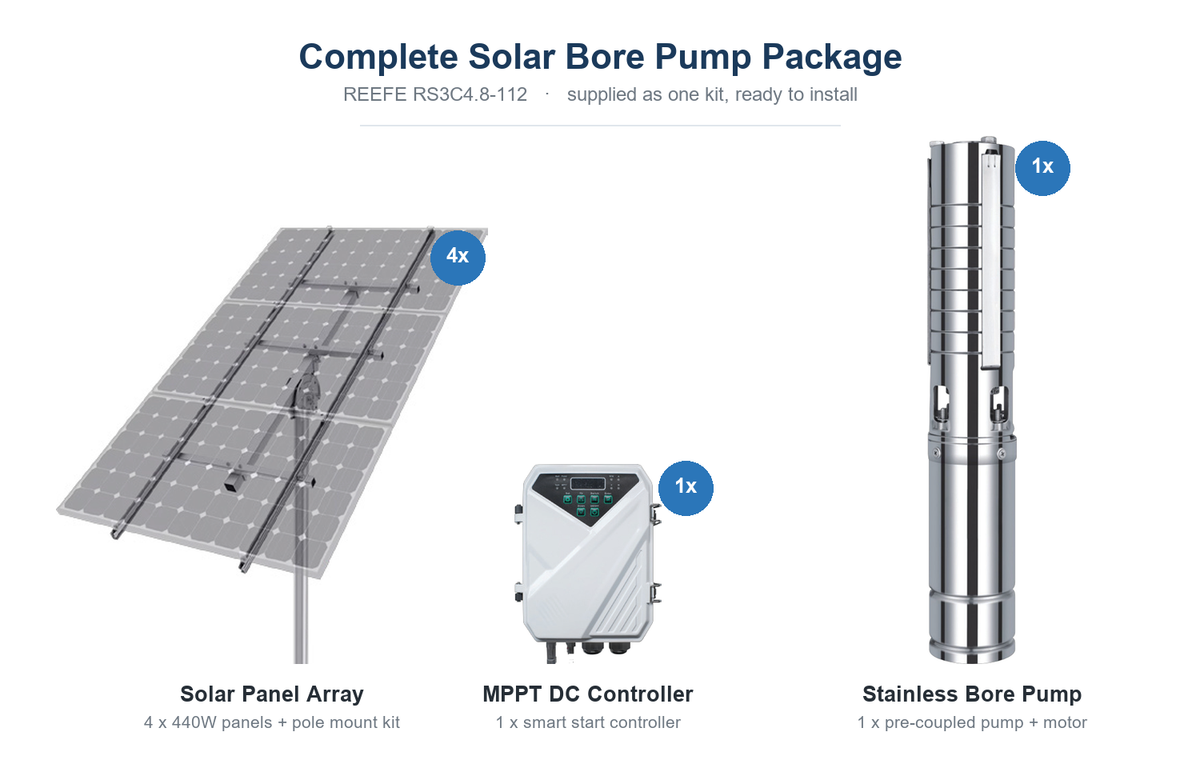

What's Included
- 1 x REEFE RS3C4.8-112.SP Solar Bore Pump (centrifugal)
- 1 x MPPT solar controller
- 4 x 440W solar panels
- 1 x Pole mounting kit
- 1 x 15m plug and play array cable
- 1 x Installation and User Manual
Downloads
Warranty
2 year REEFE Premium Series warranty. Contact us for the full warranty terms.
Need Assistance or Ready to Order?
Our team can help you match the right solar bore pump to your bore depth and water requirement. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support. Installation must be carried out by a licensed installer.
Downloads
Specification sheets and certificates for this product.
Delivery & returns
The details worth knowing before you order.
When will it arrive, and what does freight cost?
Freight is included in the price shown. Orders placed before 1pm dispatch the same business day to VIC, NSW and QLD, with free express shipping Australia-wide.
Delivery is kerbside with tailgate, so you will need someone on site to receive it and a way to move the unit into position.
Can I return it if I order the wrong one?
Returns are accepted within 30 days on unused stock in its original packaging. Contact us for a return authority before sending anything back.
Returns or exchanges due to incorrect sizing without prior consultation are at the customer's expense, which is exactly why we would rather spend ten minutes on the phone before you order.
Do I need a licensed plumber and electrician?
Yes. Plumbing connections must be made by a licensed plumber and the final electrical connection by a licensed electrician, to an RCD-protected circuit. Packaged units arrive pre-assembled, so both trades are on site for a fraction of the time a site-built system takes.
What is covered by warranty?
Manufacturer warranty applies to every product we supply, covering correctly installed units used within their rated duty. Warranty terms vary by brand and model - the period for this product is listed in the specifications above, or call us and we will confirm it.
Do you offer trade pricing or project quantities?
We do. Trade accounts receive standing discount and priority dispatch. For developments and multi-unit sites we quote the whole schedule and stage deliveries to match your program. Apply for trade pricing or call 1300 930 847.
