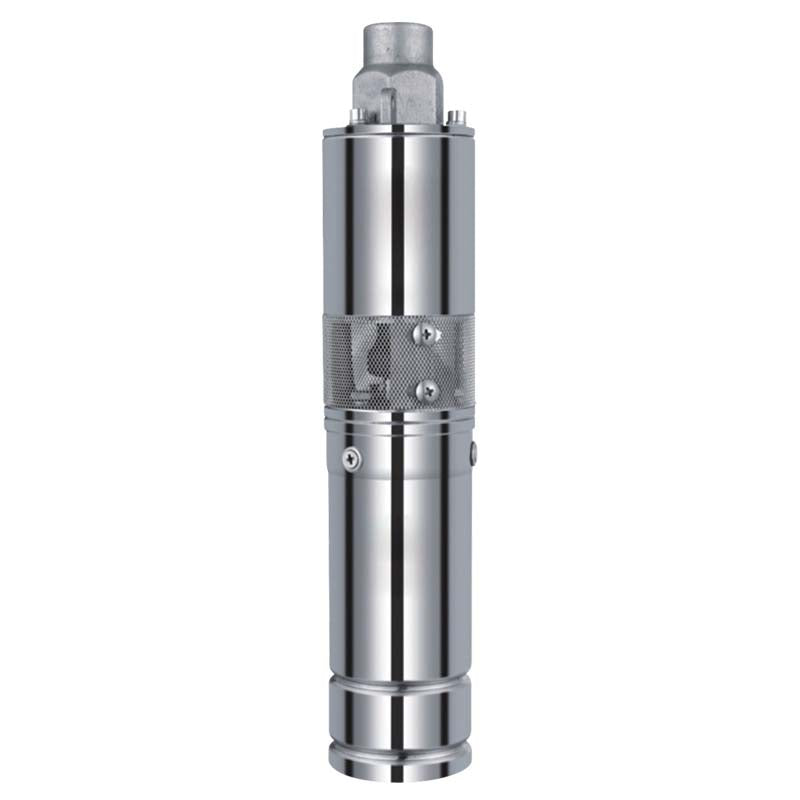

REEFE Solar Bore Pump 33L/min 150m 72V RS3S2.0-150
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
The REEFE RS3S2.0-150 is a 100 percent solar powered submersible bore pump, delivering up to 33L/min at heads up to 150m using free energy from the sun. It uses an easy MPPT maximum efficiency start controller and a pre-coupled, factory tested helical rotor pump and motor assembly, so you can be up and running quickly.
Highlights
- 33L/min maximum flow, up to 150m head
- 750W helical rotor solar submersible bore pump
- Runs on 100 percent renewable solar energy
- MPPT maximum efficiency start controller included
- Under and over voltage protection, plus dead head protection
- Requires 3 x 440W solar panels (sold separately)
- 2 year warranty, REEFE Premium Series
Solar Powered Bore Water
A solar bore pump draws water straight from your bore using energy from the sun, with no mains power or running cost. The MPPT controller gets the most from the panels through the day, and the pump ramps its output with the available sunlight to fill tanks and troughs for stock, irrigation and rural supply.
Specifications
| Specification | Details |
|---|---|
| Model | RS3S2.0-150 |
| Code | 35016 |
| Pump Diameter | 3" |
| Impeller Type | Helical Rotor |
| System Voltage | 72V |
| Motor Power | 750 W |
| Maximum Flow | 33 L/min |
| Maximum Head | 150 m |
| Solar Panels Required | 3 x 440W |
| Discharge Outlet | 25mm (1") |
| Controller | MPPT maximum efficiency start controller |
| Weight (pump) | 9 kg |
| Pump Size (Dia x H) | 76 x 418 mm |
| Warranty | 2 years |
| Brand | REEFE |
Applications
- Rural and farm bore water supply
- Stock water and troughs
- Tank filling and irrigation
- Off grid and remote water supply
What's Included
- 1 x REEFE RS3S2.0-150 Solar Bore Pump (helical rotor)
- 1 x MPPT solar controller
- 1 x Installation and User Manual
Downloads
Warranty
2 year REEFE Premium Series warranty. Contact us for the full warranty terms.
Need Assistance or Ready to Order?
Our team can help you match the right solar bore pump to your bore depth and water requirement. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support. Installation must be carried out by a licensed installer.
