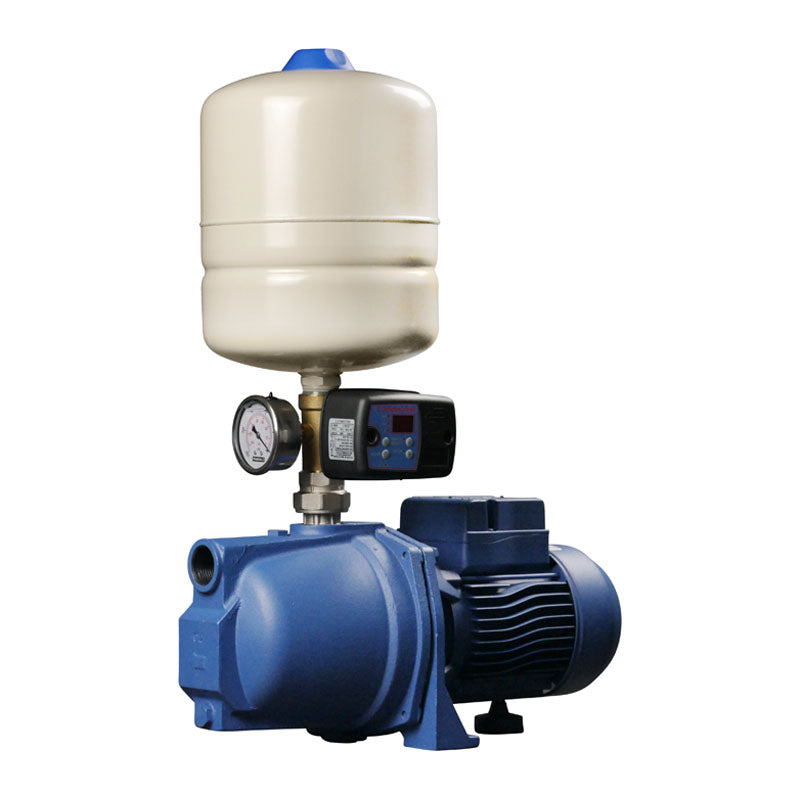

REEFE RSWE40.PTS Well Pump with Pressure Tank, Switch & Gauge
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview
Highlights
- Self-priming for excellent suction up to 9m
- High Quality construction with anti-corrosive materials ensures durability
- Digital pressure switch for easy adjustment
- Includes an 18L pressure tank for consistent water pressure
- Suitable for multiple applications including garden irrigation and stock watering
- 3-Year Manufacturer Warranty
Features
- 100% European Made: Guarantees superior quality and reliability
- Corrosion Resistance: All wet end internals are coated to resist corrosion
- Easy Installation: Comes with a digital pressure switch and easy mounting options
- Durable Materials: Features a cast iron pump body and aluminum motor casing
- Techno-polymer Components: Includes a diffuser, nozzle, venturi, and impeller for enhanced performance
Construction
- Pump Body: Cast iron
- Motor Casing: Aluminum
- Diffuser/Nozzle/Venturi/Impeller: Techno-polymer
- Pump Shaft: Stainless steel 304
- Seals: Carbon-ceramic mechanical seals
Applications
- Surface mounted wells
- Household water supply (not recommended for drinking water)
- Garden sprinklers and irrigation systems
- Livestock watering
- Spear pumping

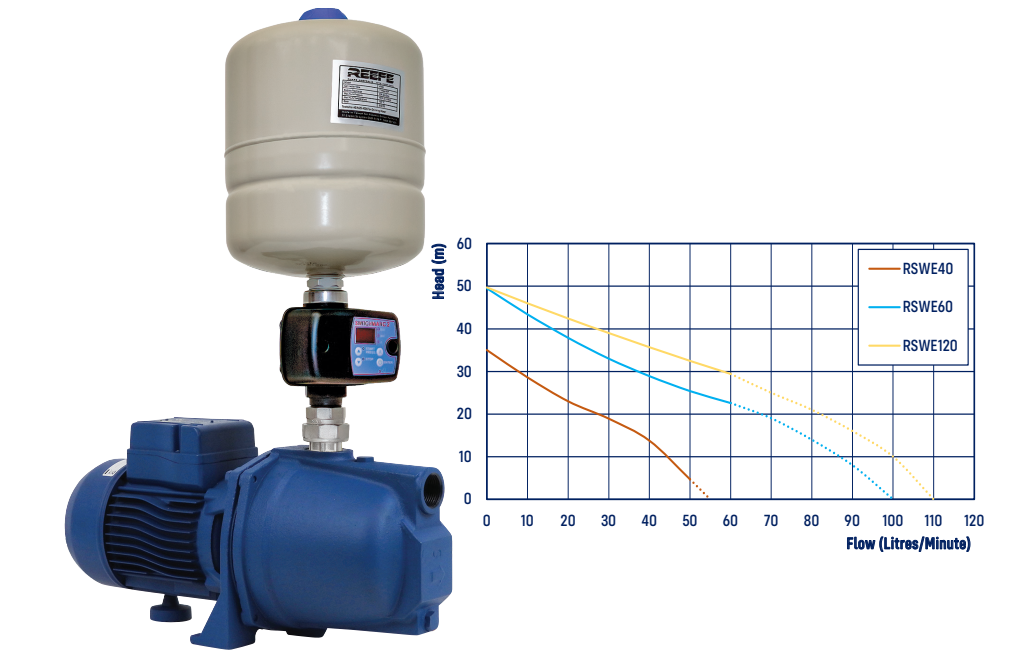

Specifications
- Model: RSWE40.PTS
- Amps: 2.6
- Watts: 440
- Rated Flow: 25 L/min
- Maximum Flow: 50 L/min
- Rated Head: 21m
- Maximum Head: 35m
- Suction Lift: 9m
- Outlet Size: 25mm
- No. of Taps: 2-4
- Weight: 14.25 kg
- Dimensions (LxWxH): 380 x 280 x 640 mm
What’s in the Box
- 1 x RSWE40 Well Jet Pump
- 1 x 18L Pressure Tank
- 1 x Pressure Switch
- 1 x Pressure Gauge
- Installation Manual
This pump is a reliable solution for your water pumping needs, ensuring a consistent water supply with minimal maintenance required. Whether you're looking to water your garden or provide for your livestock, the RSWE40 has got you covered.
Downloads
Technical Data
Have questions when you're installing the pump? Give us a call on 1300 930 847, we're happy to help!
