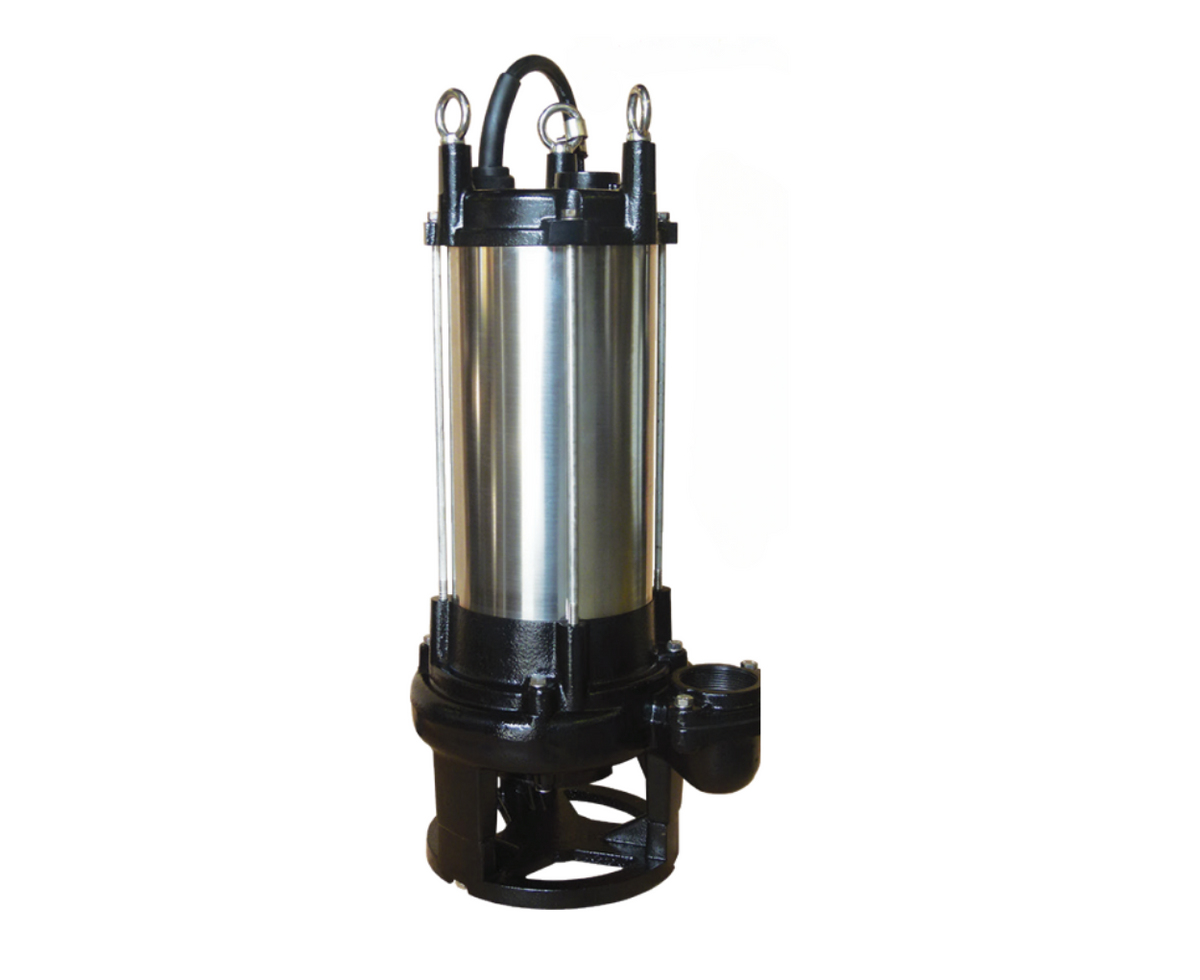

REEFE Sewage Grinder Pump Manual 1.1kw -RGS11M
30-day returns on unused stock in original packaging. Returns due to incorrect sizing without prior consultation are at the customer's expense, so call us before you order if you are unsure.
Tell us the fixtures, the run length and the head and we will size it for you, usually same day.
1300 930 847 Mon-Fri, 9:30am-4:00pm AESTOverview
A safe, dependable, trouble-free I-Series REEFE pump. With superior engineering, these heavy duty grinder pumps are suitable for the most
grueling applications. The grinder mechanism provides more than 80,000 slicing actions per minute while the radical cutter and cutter ring reduces
the torque and kilowatt requirements, which makes it one of the most efficient grinder pumps available.
Benefits:
- Efficient Grinding Mechanism: Features a fixed shredder ring and a rotating grinder made of hardened Chromium-Molybdenum alloy steel, delivering over 80,000 shredding actions per minute.
- Energy Efficiency: The innovative cutter ring design reduces torque and kilowatt requirements, enhancing overall efficiency.
- Durability: Constructed with an abrasion-resistant material and a removable solid cast iron base, ensuring long-lasting performance under tough conditions.
- Safe and Secure: Equipped with Triplex seals—double mechanical seal and an oil seal—to isolate the motor from the pumped liquids, enhancing operational safety.
Applications:
The RGS11M is particularly effective in:
- Waste treatment facilities
- Industrial plants
- Sewage systems for townhouses and unit complexes
- Childcare centers and schools
- Recreational facilities
Construction:
This pump is built to endure challenging environments with features including:
- Ingress Protection IP68, providing complete dust and water immersion protection.
- Insulation Class F, ensuring the pump operates safely under varying electrical conditions.
- A unique epoxy cable sealing base to prevent water vapor penetration.
Specifications:
- Model: RGS11M
- Amps: 9
- Power/Voltage: 1.1 kW / 240 Volts
- Maximum Flow: 3.2 L/sec
- Maximum Head: 16m
- Outlet Size: 32mm
- Cable Length: 10m
- Operation: Manual
- Weight: 31 kg
- Dimensions (Diameter x Height): 284 x 512 mm
- 1 Year warranty
- Electrical Safety Approval to AS/NZS 60335.2.41
Unique epoxy cable sealing base prevents water vapour entering the water
Lifting lugs for easy installation and servicing
Max liquid temperature 40°C
Need More Information?
REEFE RGS11M Pump Installation Instructions
Why Choose the RGS11M?
We ensure that each product not only meets the highest standards of quality and performance but also comes with comprehensive support:
- Free Shipping: All our pumps are delivered to your location free of charge.
- Warranty: We provide a robust warranty with the RGS11M, safeguarding your purchase.
- After-Sales Support: Our dedicated team is available to assist with any questions or support needs, ensuring a seamless experience.
Frequently Asked Questions:
-
What makes the RGS11M suitable for industrial applications?
- Its high shredding capability and robust construction make it capable of handling demanding industrial waste management tasks.
-
Can the RGS11M pump hot liquids?
- Yes, it can handle liquids up to 40°C, making it versatile for different environmental conditions.
-
How do I service this pump if it's installed in a hard-to-reach area?
- The RGS11M is equipped with lifting lugs for easy installation and servicing, even in challenging locations.
-
What should I do with the removable base when installing the pump on guide rails?
- When using the RGS11M with guide rails, the solid cast iron base must be removed to ensure proper installation and function.
