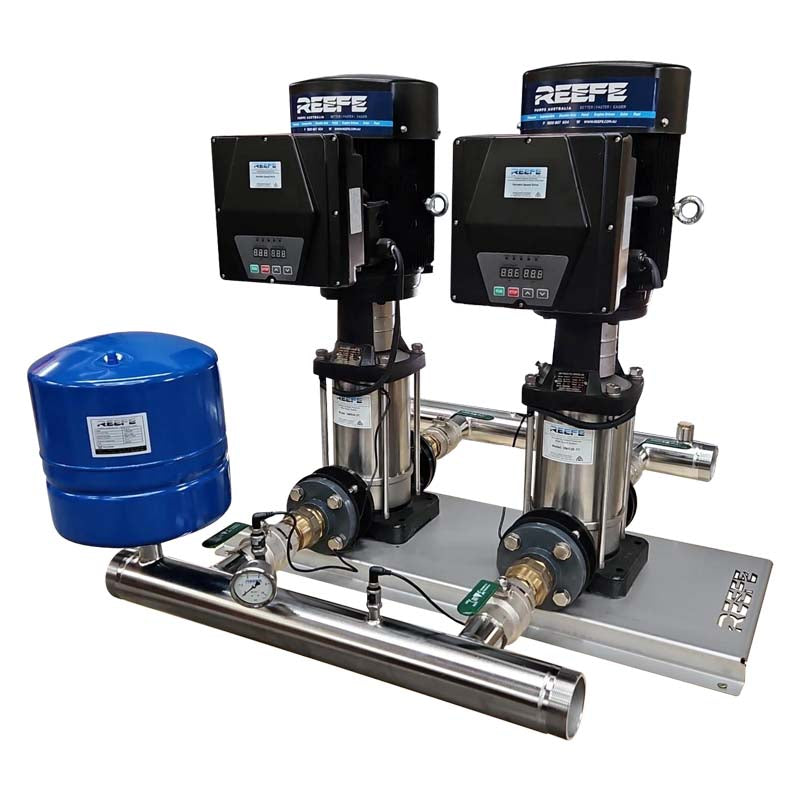

REEFE VMRD10-7T Variable Speed Vertical Multistage Pump Set
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
Pump Highlights
-
High Efficiency Operation: With a power rating of 3 kW per pump, the VMRD10-7T efficiently handles a flow range from 5m³/hr to 26m³/hr, ensuring consistent water supply with minimal energy consumption.
-
Durable Construction: Built to last, the pump features corrosion-resistant wetted parts including stainless steel impellers, shaft, outer sleeve, diffusers, and base port connections. A ductile iron motor bracket and cast iron mounting plate enhance structural integrity and longevity.
-
User-Friendly Design: Enjoy hassle-free installation with plug-and-play functionality and a pre-set Variable Speed Drive (VSD) that simplifies operation. The pump can also be custom-configured during factory wet testing to suit specific project requirements.
-
Versatile Applications: From domestic water supply to agricultural irrigation, fire fighting systems, and industrial processes, the VMRD10-7T adapts seamlessly. It is designed for use in cooling towers, water treatment plants, and high-pressure washing applications.
-
Maintenance Made Easy: The cartridge type mechanical seal facilitates quick maintenance, ensuring minimal downtime and efficient serviceability. Auto-reset functionality after power interruptions guarantees uninterrupted operation.
Technical Specifications:
- Code: 31353
- Model: VMRD10-7T
- Voltage: 415V
- Power per Pump: 3 kW
- Minimum Flow: 5m³/hr
- Maximum Flow: 26m³/hr
- Maximum Head: 68m
- Height: 528mm
- Inlet/Outlet Diameter: 40mm
- Suction Port Centre from Ground: 130mm
Additional Features:
- Enclosure Rating: IP54
- Construction Materials: Ductile iron motor bracket, stainless steel top cap, impellers, shaft, outer sleeve, diffusers, and base port connections, cast iron mounting plate, outer sleeve, and o-ring neck ring.
- Applications: Domestic and commercial water supply, process water systems, high-pressure washing, fire fighting systems, agricultural and horticultural irrigation, stock water supply, water treatment, cooling towers.
