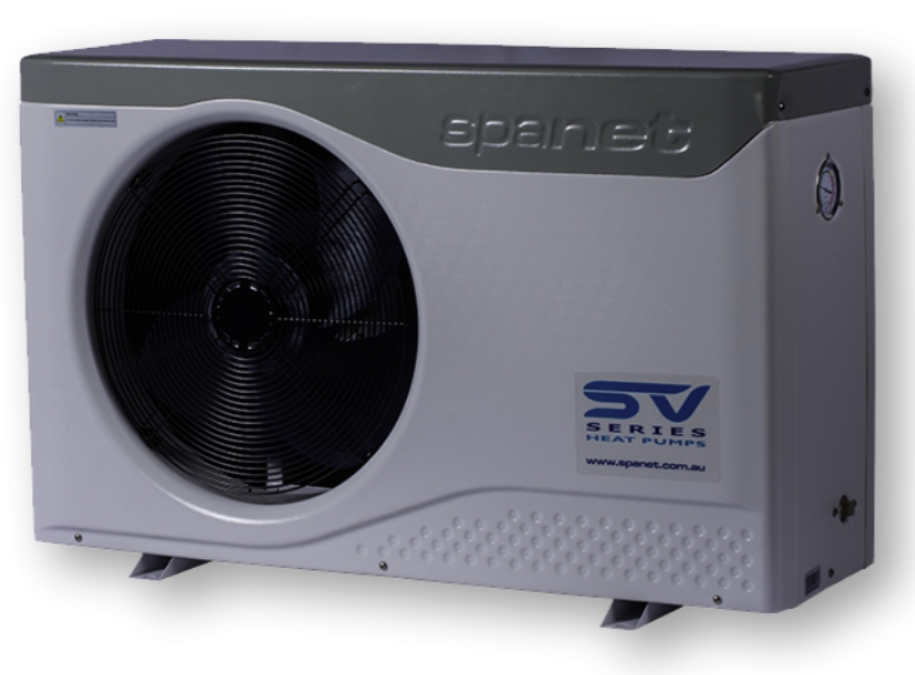

Spanet 12.0kW SV Series Integrated Heat Pump
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
The Spanet 12.0kW SV Series is a PowerSmart spa heat pump that integrates directly with a SpaNET SV Series spa control. There is no separate keypad on the heat pump. All temperature and mode settings are handled from the spa-side keypad, and the SV control system monitors the heat pump in real time with solid state diagnostics for long term reliability and low running costs. The 12.0kW output suits larger spas and swim spas.
Highlights
- 12.0kW heating capacity for larger spas and swim spas
- True integration with SpaNET SV Series spa controls, no separate keypad
- Controlled entirely from the spa-side keypad
- Solid state diagnostics with real-time monitoring
- PowerSmart design for low operating costs
- 40mm union connections, 5m lead
- 3 year compressor, 2 year parts, 1 year on-site warranty
- Australian supported by Spa-Craft
Built to Work With Your SV Spa Control
Unlike a standalone heat pump with its own keypad, the SV Series is designed to work in synergy with a SpaNET SV Series spa control. You set the temperature and modes from the spa-side keypad you already use, and the control system looks after the heat pump automatically. That integration is what keeps running costs down and reliability up.
Specifications
| Specification | Details |
|---|---|
| Model | 12.0kW SV Series Integrated Heat Pump |
| Supplier Code | SN-HP-120P |
| Product Type | SV Series Spa Heat Pump |
| Heating Capacity | 12.0kW |
| Maximum Input Current | 10.8A |
| Union Size | 40mm |
| Lead Length | 5m |
| Plug Type | AMP |
| Dimensions (L x W x H) | 980 x 312 x 615mm |
| Weight | 62kg |
| Integration | SpaNET SV Series spa control |
| Warranty | 3 Years Compressor, 2 Years Parts, 1 Year On-Site |
| Manufacturer | SpaNET |
Applications
- Larger spas and swim spas
- Spas running a SpaNET SV Series control
- Replacing an element heater to cut running costs
- Year-round spa heating
Installation Information
- Requires a SpaNET SV Series spa control for full integration.
- All electrical work must be completed by a qualified electrician.
- Allow clear airflow around the unit for efficient operation.
- 40mm plumbing unions connect into the spa circulation line.
What's Included
- 1 x Spanet 12.0kW SV Series Heat Pump with 5m lead
- 1 x Installation Guide
Need Assistance or Ready to Order?
Our team can help you match the right heat pump to your spa and SV control. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support.
