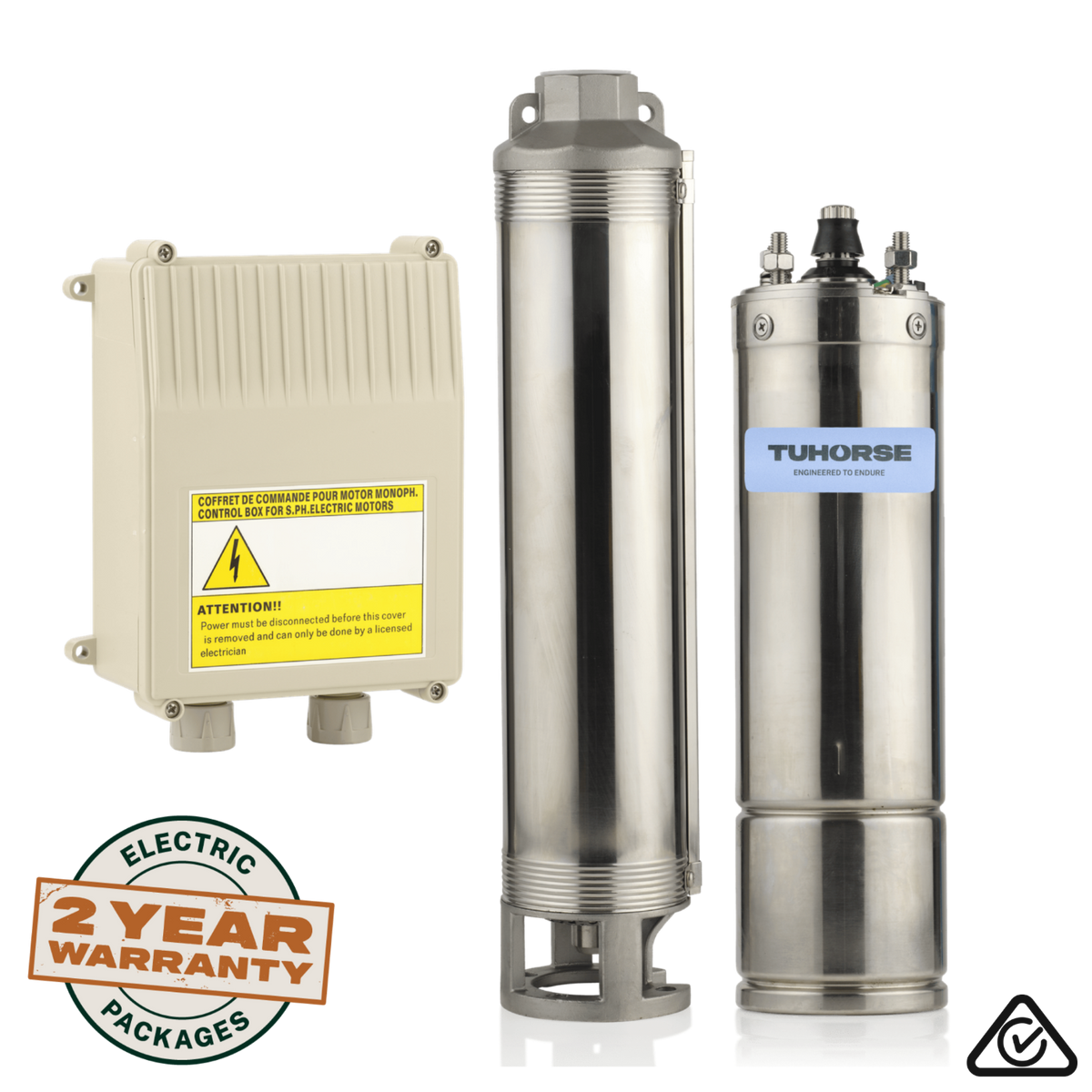

Tuhorse 4" 0.5HP/240V S-08 Submersible Bore Pump Package
30-day returns on unused stock in original packaging.
Overview
The Tuhorse S-08 0.5HP / 240V Submersible Bore Pump Package is a complete mains-powered bore pump package built around a 4" stainless steel submersible bore pump, matched with a 0.5HP Single Phase motor and single phase starter box. It draws water from bores, wells and tanks and lifts it to your tank or pressure system, and arrives as one package ready to install.
Highlights
- Complete package: 4" pump, 0.5HP Single Phase motor and starter box
- 0.5HP/370W pump power
- Supply: Single Phase 240V/50Hz
- Running current: 3.6A
- Maximum head: 69m
- Maximum flow: 35L/min or 2100L/hrs
- Inlet / outlet: 1.25"
- Stainless steel submersible construction
- Continuous-duty rated for bore and tank supply
- 12 month return-to-base warranty in Australia
- Free delivery within Australia
A Complete Bore Pump Package
This is a full package rather than a bare pump end or a motor on its own. The 4" pump, the 0.5HP Single Phase motor and the starter box all arrive together and matched, so the pump is ready to wire in, drop down the bore and connect to your poly pipe.
Specifications
| Specification | Details |
|---|---|
| Model | S-08 |
| Supplier Code | EEP002 |
| Product Type | 4" Submersible Bore Pump Package |
| Pump Diameter | 4" |
| Pump Power | 0.5HP/370W |
| Voltage / Supply | Single Phase 240V/50Hz |
| Running Current | 3.6A |
| Maximum Head | 69m |
| Maximum Flow | 35L/min or 2100L/hrs |
| Inlet / Outlet | 1.25" |
| Pump Dimensions | 723mm x 100mm |
| Weight | 14Kg |
| Power Cable | 1.5M Cable |
| Motor | 0.5HP Single Phase |
| Control | Starter Box |
| Pump Material | Stainless Steel |
| Warranty | 12 Months Return-to-Base (Australia) |
| Manufacturer | Tuhorse |
Applications
- Bore and well water pumping
- Stock and livestock watering
- Rural and remote properties
- Tank filling and transfer
- Irrigation supply
- House and shed water supply
Installation Information
- A stainless steel safety cable is required to hold the pump in the bore (not included).
- Electrical connection must be carried out by a licensed electrician.
- Poly pipe from the pump to the tank is not supplied.
- Confirm your bore depth and required flow against the specifications above before ordering.
- Match the starter box and cable run to your installation.

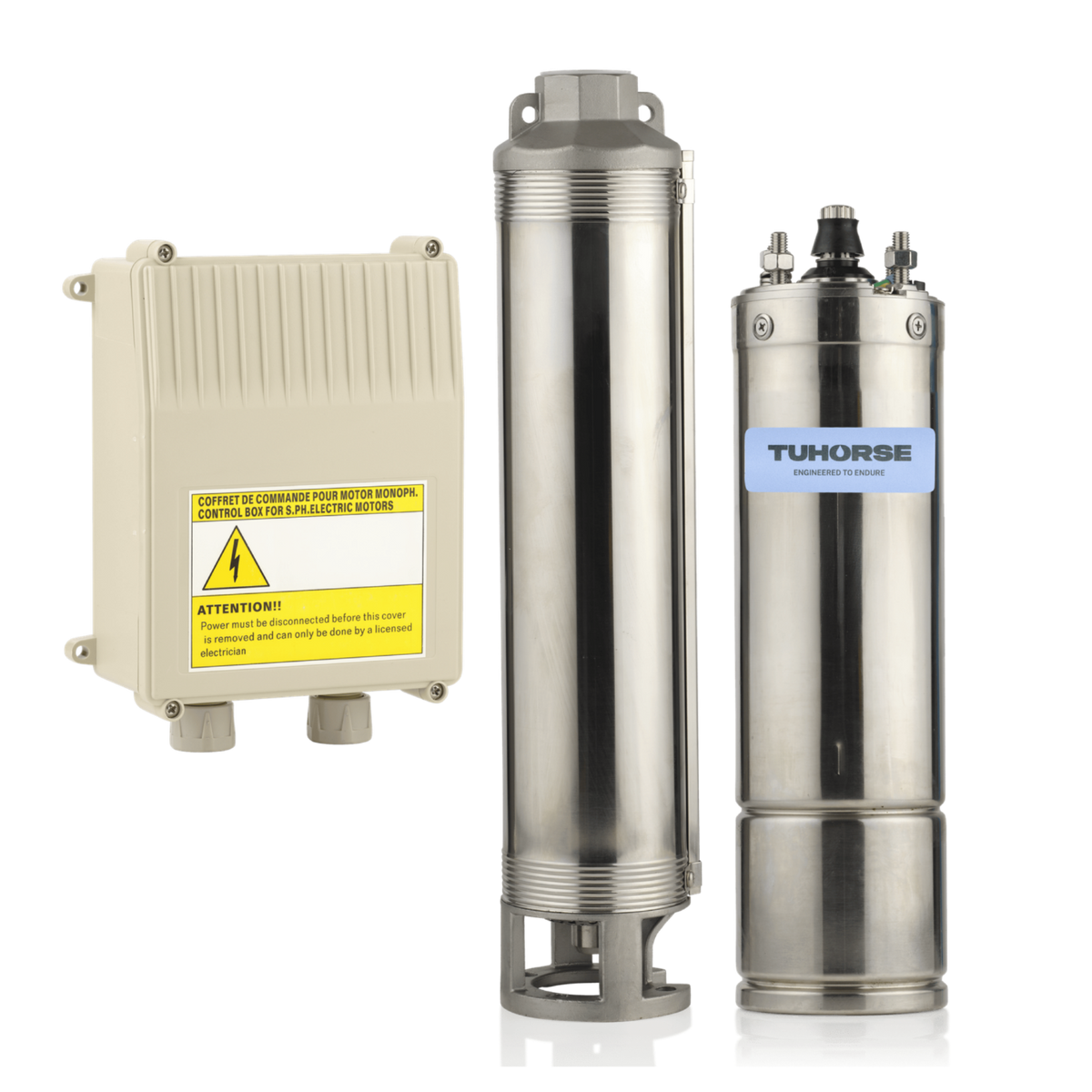

What's Included
- 0.5HP 240V/50Hz motor
- Tuhorse TH-S-08/0.5HP pump
- 0.5HP starter box
