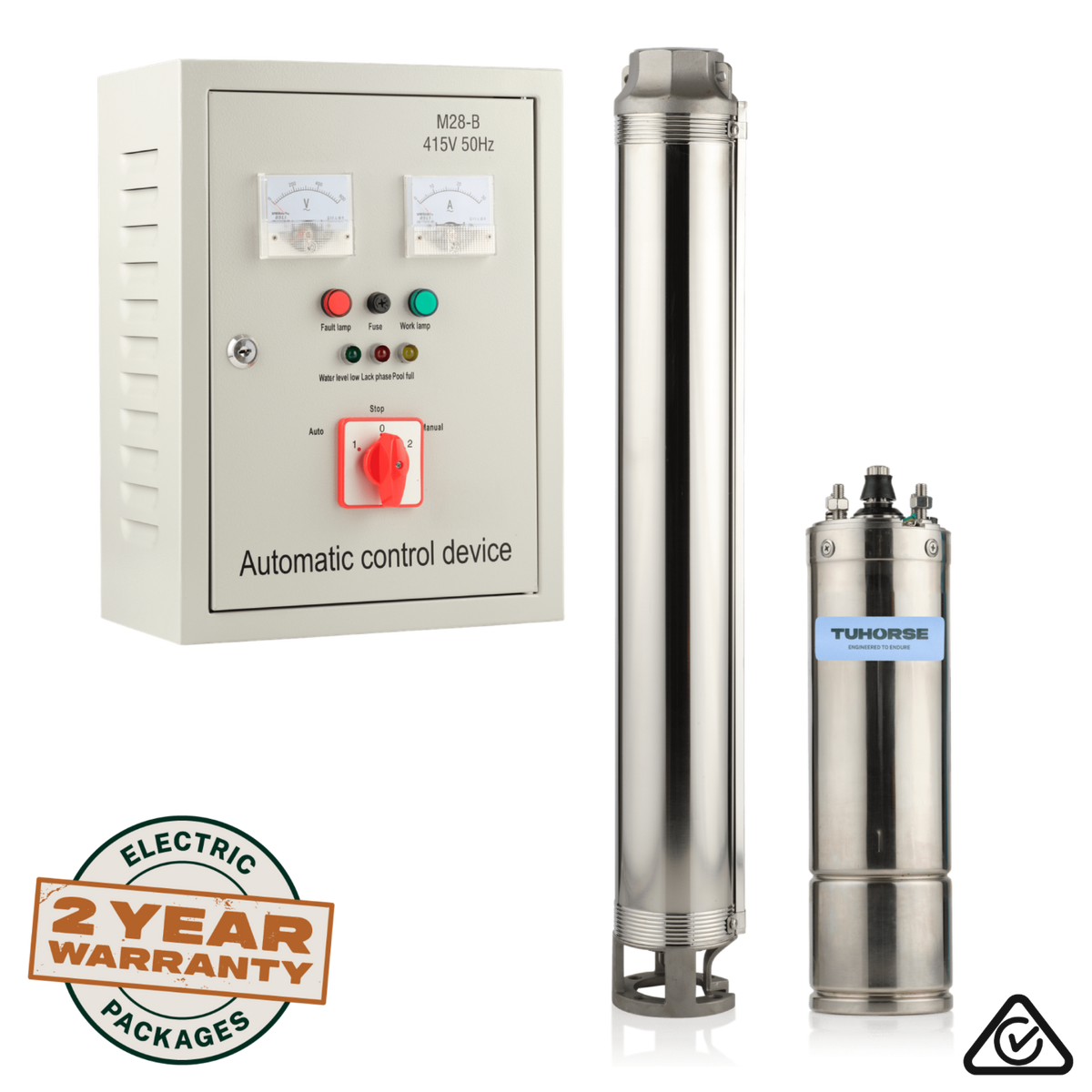

Tuhorse 4" 5.5HP/415V MA-17 Submersible Bore Pump Package
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview
The Tuhorse MA-17 5.5HP / 415V Submersible Bore Pump Package is a complete mains-powered bore pump package built around a 4" stainless steel submersible bore pump, matched with a 5.5HP Three Phase motor and three phase control box. It draws water from bores, wells and tanks and lifts it to your tank or pressure system, and arrives as one package ready to install.
Highlights
- Complete package: 4" pump, 5.5HP Three Phase motor and control box
- 5.5HP pump power
- Supply: Three Phase 415V/50Hz
- Running current: 10.3A
- Maximum head: 110m
- Maximum flow: 267L/min or 16000/hrs
- Inlet / outlet: 2"
- Stainless steel submersible construction
- Continuous-duty rated for bore and tank supply
- 12 month return-to-base warranty in Australia
- Free delivery within Australia
A Complete Bore Pump Package
This is a full package rather than a bare pump end or a motor on its own. The 4" pump, the 5.5HP Three Phase motor and the control box all arrive together and matched, so the pump is ready to wire in, drop down the bore and connect to your poly pipe.
Specifications
| Specification | Details |
|---|---|
| Model | MA-17 |
| Supplier Code | EEP023 |
| Product Type | 4" Submersible Bore Pump Package |
| Pump Diameter | 4" |
| Pump Power | 5.5HP |
| Voltage / Supply | Three Phase 415V/50Hz |
| Running Current | 10.3A |
| Maximum Head | 110m |
| Maximum Flow | 267L/min or 16000/hrs |
| Inlet / Outlet | 2" |
| Pump Dimensions | 2211mm x 95mm |
| Weight | 40Kg |
| Motor | 5.5HP Three Phase |
| Control | Control Box |
| Pump Material | Stainless Steel |
| Warranty | 12 Months Return-to-Base (Australia) |
| Manufacturer | Tuhorse |
Applications
- Bore and well water pumping
- Stock and livestock watering
- Rural and remote properties
- Tank filling and transfer
- Irrigation supply
- House and shed water supply
Installation Information
- A stainless steel safety cable is required to hold the pump in the bore (not included).
- Electrical connection must be carried out by a licensed electrician.
- Poly pipe from the pump to the tank is not supplied.
- Confirm your bore depth and required flow against the specifications above before ordering.
- Match the control box and cable run to your installation.

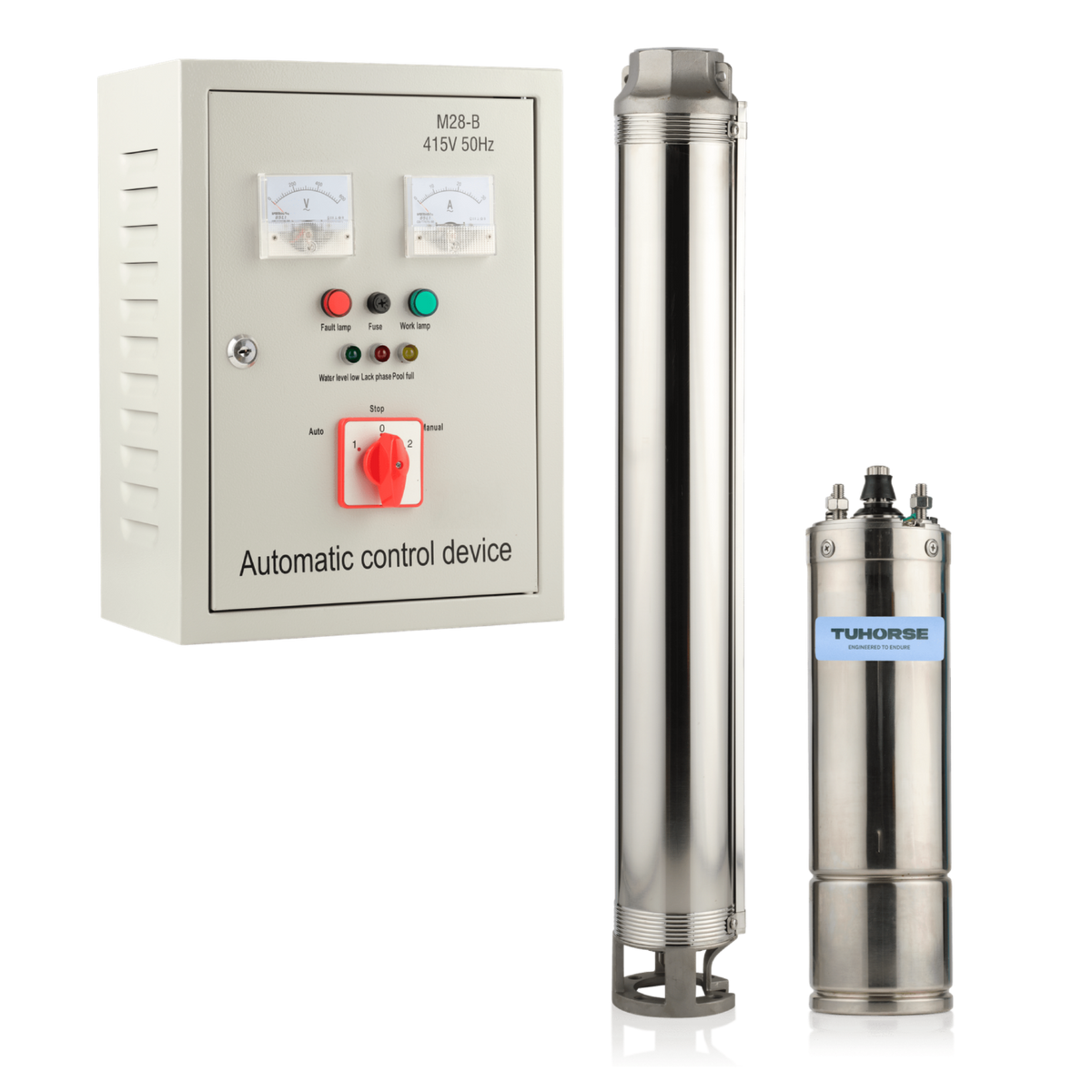

What's Included
- 5.5HP 415V/50Hz motor
- MA-17/5.5HP pump
- 5.5HP auto control box
