Aline SABRE ALG2200-3 Grinder Pump 3HP 415V
30-day returns on unused stock in original packaging. Incorrect sizing without prior consultation is at the buyer's expense.
Overview

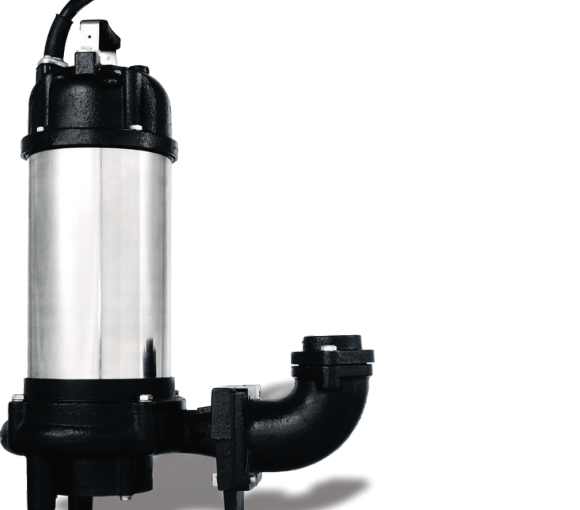

The Aline SABRE ALG2200-3 is a 2.2kW Three Phase submersible grinder pump. The grinder cutting system shreds solids into a fine slurry, so it moves raw sewage and effluent through small-bore pressure lines over long runs and higher heads. Manual operation, controlled by an external float or control panel (not included). It delivers up to 28m of head and 240 litres per minute.
Highlights
- SABRE grinder submersible pump
- 2.2kW / 3HP, Three Phase 415V
- Manual operation
- Maximum head up to 28m
- Maximum flow up to 240 L/min
- Cast iron construction with stainless steel motor jacket
- Australian supported by Aline
How the Grinder Pump Works
The grinder cutting system shreds solids into a fine slurry, so it moves raw sewage and effluent through small-bore pressure lines over long runs and higher heads.
Specifications
| Specification | Details |
|---|---|
| Model | ALG2200-3 |
| Supplier Code | 188800216 |
| Pump Type | Submersible Grinder Pump |
| Motor Power | 2.2 kW (3HP) |
| Voltage | 415V |
| Phase | Three Phase |
| Operation | Manual |
| Maximum Head | 28 m |
| Maximum Flow | 240 L/min |
| Construction | Cast iron with stainless steel motor jacket |
| Manufacturer | Aline (SABRE) |
Performance figures are indicative from the SABRE pump curve. Confirm head and flow at your duty point before ordering.
Applications
- Raw sewage and effluent
- Pressure sewer systems
- Long-run and high-head pump-out
- Rural and remote sanitation
Installation Notes
- Electrical connection must be carried out by a licensed electrician.
- For manual models, fit an external float or control panel to switch the pump.
- A lifting chain and guide rail or free-standing base should be matched to the pit.
- Confirm solids type, head and flow against the specifications above before ordering.
What's Included
- 1 x Aline SABRE ALG2200-3 Grinder Pump
Warranty
Backed by Aline's Australian manufacturer's warranty, with local support.
Need Assistance or Ready to Order?
Our team can help you match the right pump to your pit, solids type and duty. Contact us at sales@waternex.com.au or call 1300 930 847 for advice and support.
Downloads
Specification sheets and certificates for this product.
